10.4. Transferring Recipes
10.4.1. Between PC and PM (HMI)
■
By using Data Transfer Helper (DTH) (
)
You can use DTH to download recipe data in *.prd/*.txt file from PC to HMI. By DTH, you can also get recipe data from
HMI and save the data in *.prd/*.txt file on PC.

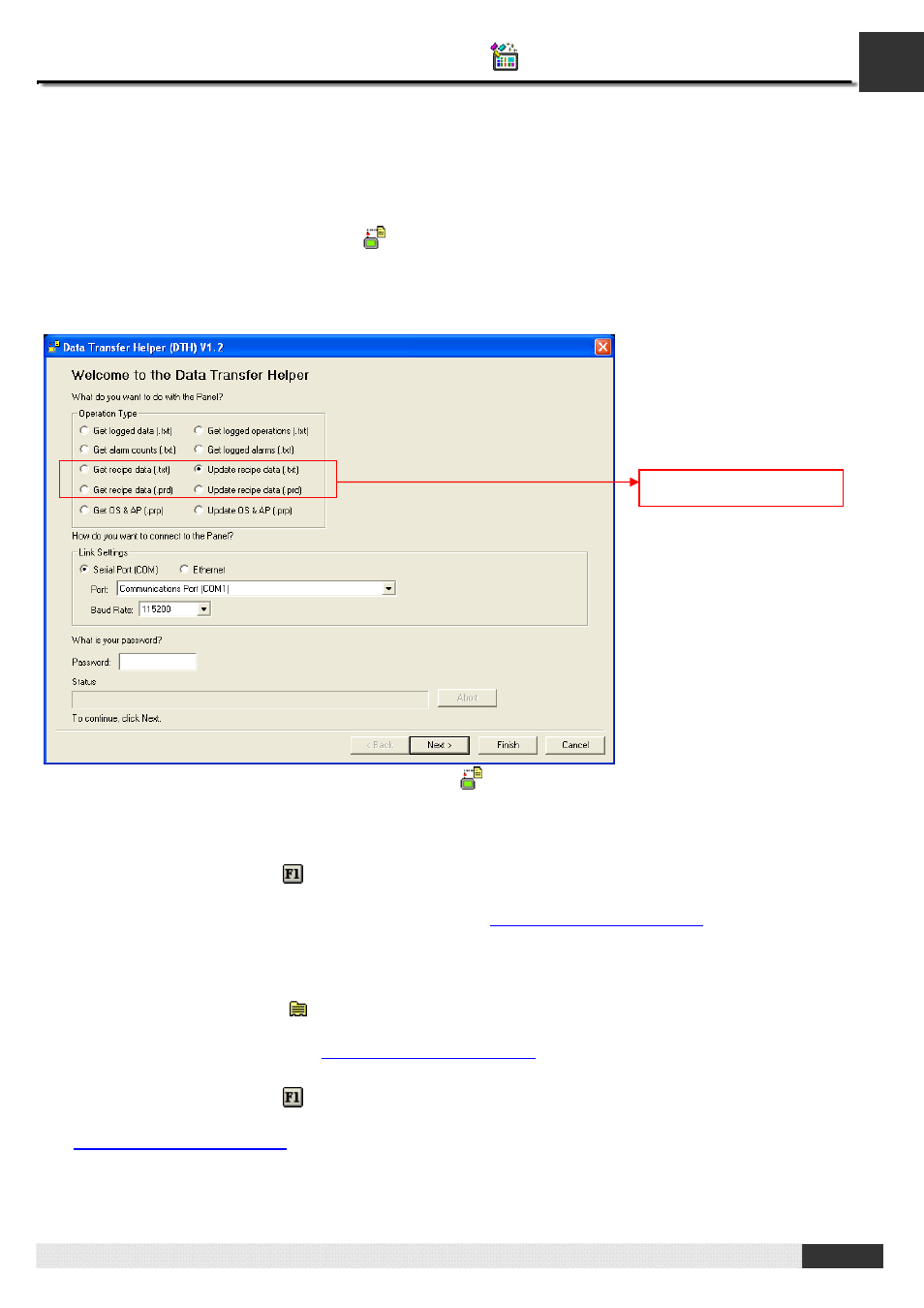

The following is an example of Data Transfer Helper (DTH) used to get or
update recipe data.
To run the DTH, choose Start > Programs > PM Designer >
Data Transfer Helper (DTH).
10.4.2. Between PM (HMI) and USB Memory Stick/Micro SD Card
■
By using Function Button (
)
You can use a function button to save recipe data of the specified recipe block in a .txt\.prd file; load recipe data of the
specified recipe block from a .txt\.prd file. For details, please see
Section 5.4.1 Basic Operations
of function buttons
10.4.3. Between battery backed memory and flash ROM
■
By using Macro Command (
)
You can use RB2ROM to save the data of the specified recipe block to flash ROM, and use ROM2RB to load recipe data
from flash ROM. For details, please see
Section 5.4.1 Basic Operations
of Macro command
■
By using Function Button (
)
You can use a function button to save recipe data to flash ROM, and load recipe data from flash ROM. For details, please
see
Section 5.4.1 Basic Operations
of function buttons
Recipe related functions
