4.1.5. Drawing Circles
1. In the Draw menu or Draw toolbar, click Circle to draw a circle.
2. Move the cursor onto the screen where you want to draw a circle. A circle with default settings will display and
move along with the cursor.
3. Click the desired position on the screen to place the circle. The center of the circle will be at the clicked position.
4. Position the mouse pointer over the handle on the edge of the circle. When the cursor turns to be or , drag
the handle until the circle is the size you want.
5. Position the mouse pointer over the handle on the center of the circle. When the cursor turns to be , left-click
the center and hold down the button to move the circle.
6. Double-click the circle to bring up the Circle dialog box and then modify the settings of the circle.

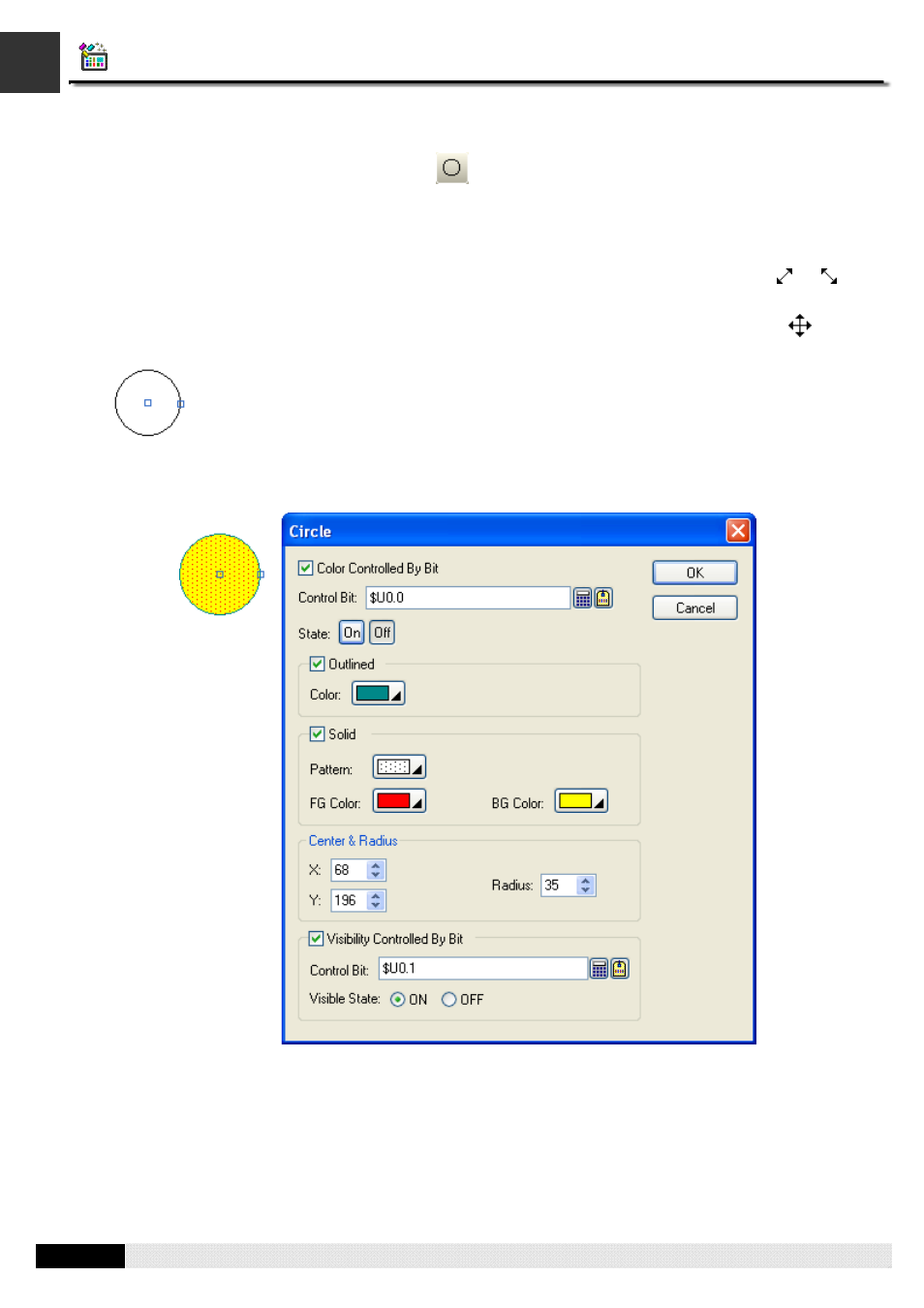

The following is a sample of Rectangle dialog box.
The picture on the left shows the two handles of a circle.
