CHAPTER 4 DESIGNING SCREENS
4.1.13.1. General Settings
This section describes how to define the general settings for table objects. The following is an example of the General

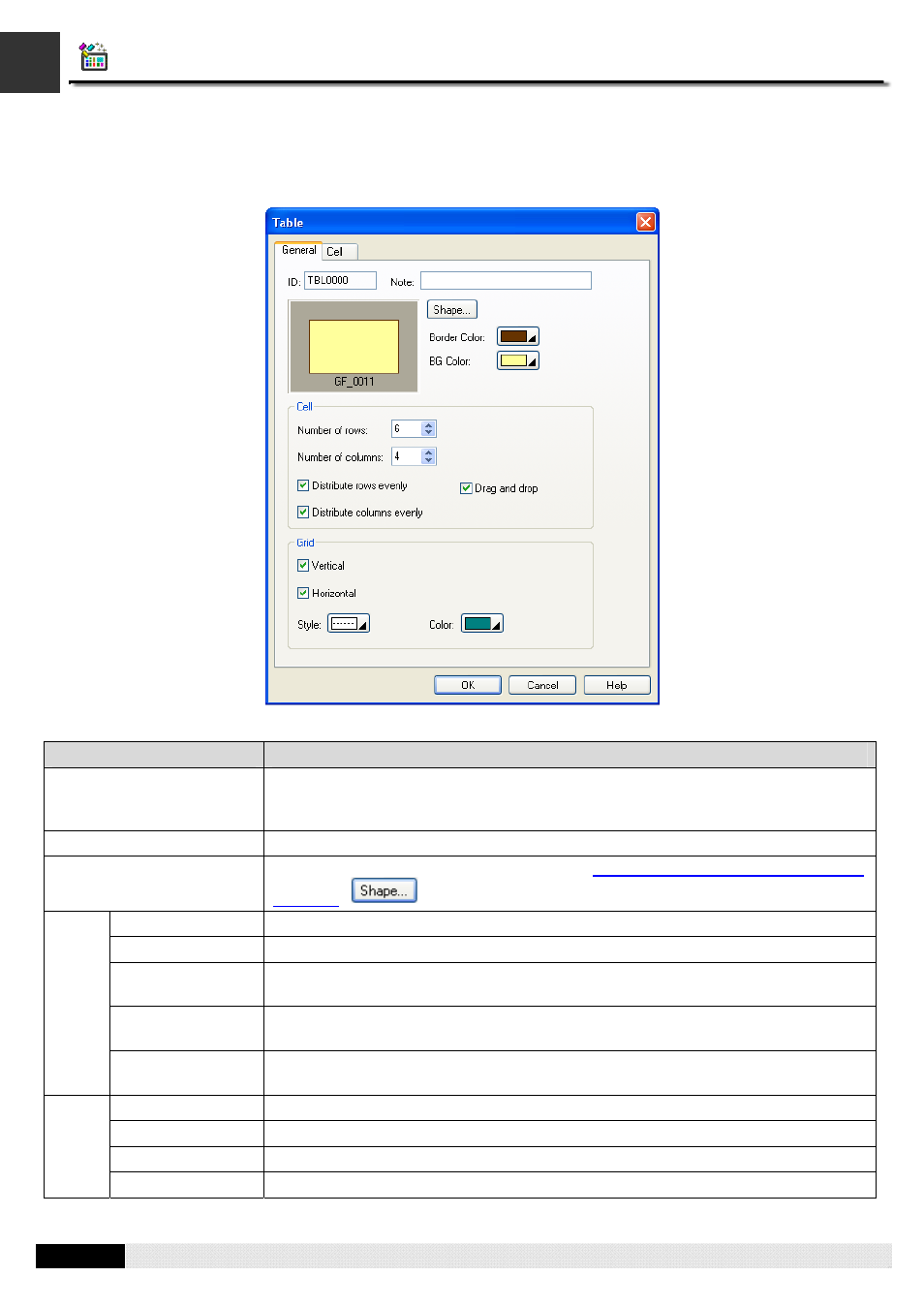

page of the Table Object dialog box.
The following table describes each property in the General page of the Table dialog box.
Property Description
ID The object’s identifier. It is generated when the object is created and is unchangeable.
The identifier is unique within the screen where the object is on. The format of the ID’s
for the tables is TBLnnnn.
Note You can type a note for the object.
Shape settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of
an Object . , Border Color, BG Color
Number of rows Specifies the number of rows in the table.
Number of columns Specifies the number of columns in the table.
Distribute rows
evenly Check this option if you want the rows of the table to be distributed evenly always.
Uncheck this option if you want to adjust the heights of the rows.
Distribute columns
evenly Check this option if you want the columns of the table to be distributed evenly always.
Uncheck this option if you want to adjust the widths of the columns.
Cell
Drag and drop Check this option so you can drag and drop an object into a cell of the table. Note that
not all kinds of objects can be placed in the cells of the table.
Vertical Check this option if you want the table to have vertical grid lines.
Horizontal Check this option if you want the table to have horizontal grid lines.
Style Specifies the style for the grid lines.
Grid
Color Specifies the color for the grid lines.
