11.5. Analog Alarm Blocks
You can set up an analog alarm block with the Analog Alarm Block dialog box. There are two ways to open the dialog box:
1) In the PM Designer's Project Manager window, move the mouse to the node of the desired analog alarm block and
double click the node or right-click the node and then select Properties.
2) In the PM Designer's menu bar, click Panel to bring up the Panel sub-menu. Click Analog Alarm Block in the Panel
sub-menu to bring up the Analog Alarm Block pop-up menu. Select Properties in the pop-up menu to bring up the
analog alarm block list of the current panel application. Select the desired analog alarm block in the list.
11.5.1. Settings

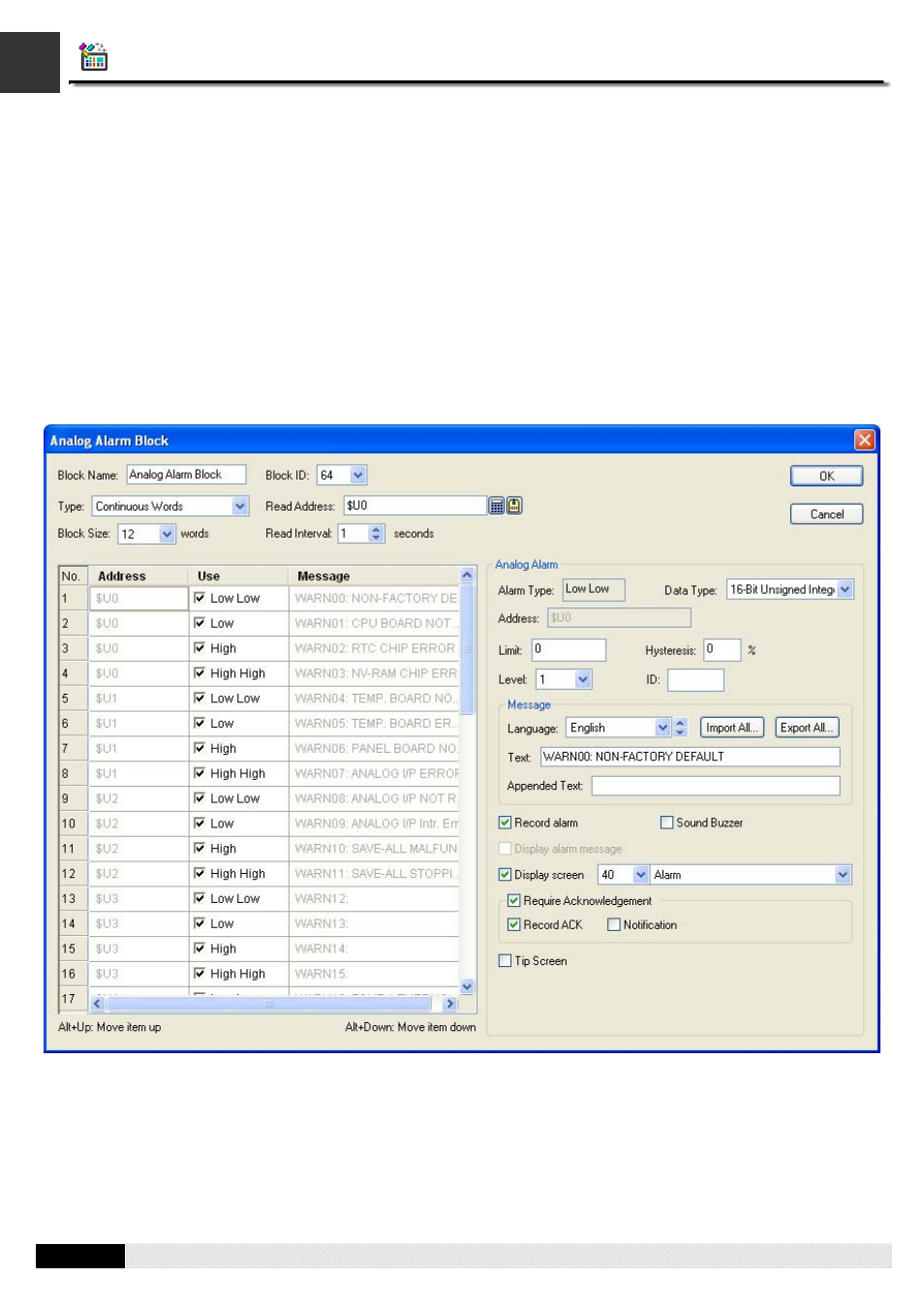

Use the dialog box to define all the settings for an analog alarm block. The following is an example of the analog alarm
block dialog.
