CHAPTER 5 BUTTONS AND SWITCHES
5.11. Scrolling Object Content Using Scroll Bars
You can use a scroll bar to scroll the content displayed by the associated object.
The scroll bars can be used with the
following object types: Historic Data Display, Historic Message Display, Historic Trend Display, Operation Log Display,
Alarm Display, Recipe Table, and Sub-link Table.
5.11.1. Basic Operations

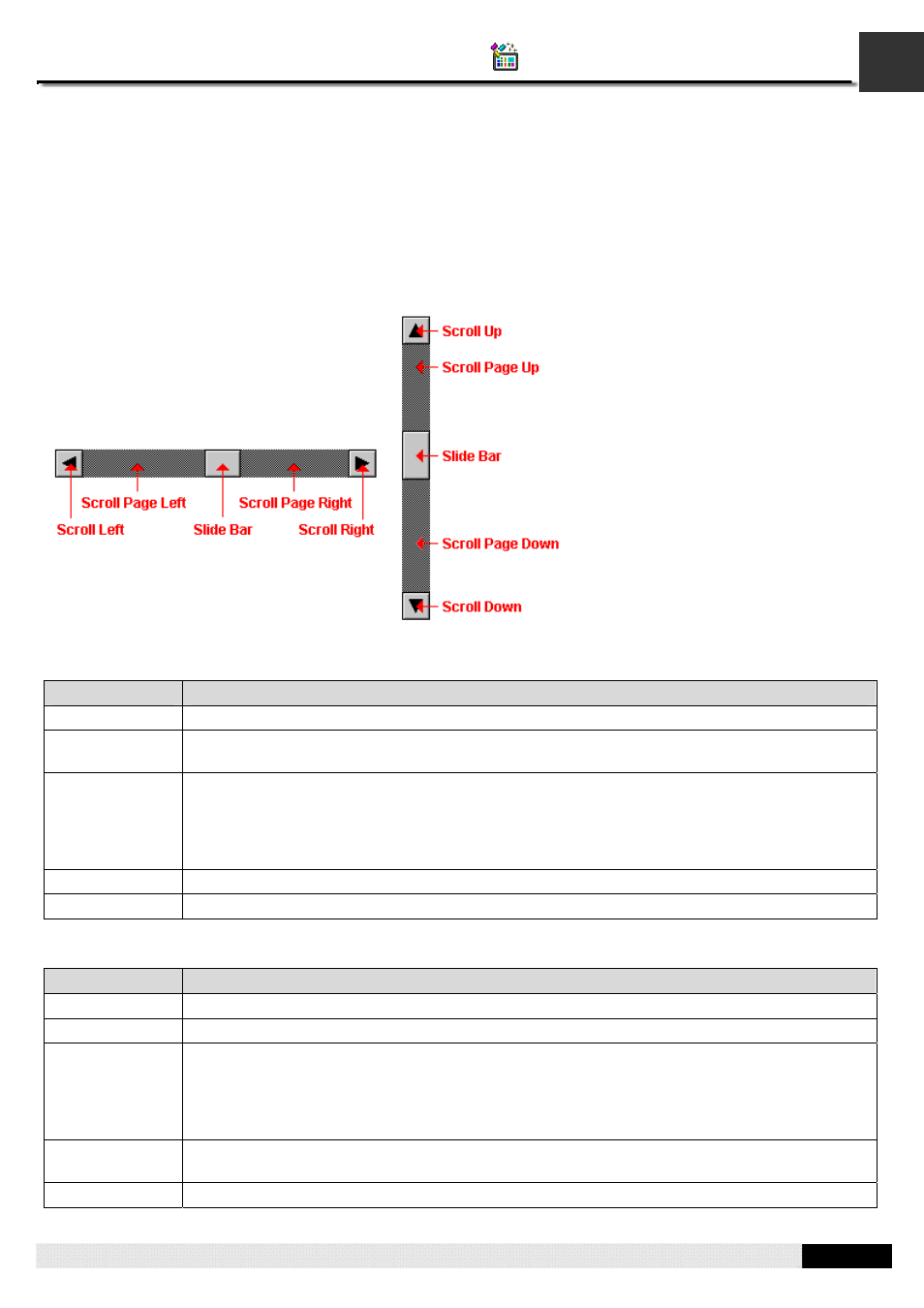

A horizontal scroll bar has the following buttons:
Button Description
Scroll Right Scrolls the content displayed by the associated object to the right.
Scroll Page
Right Scrolls the content displayed by the associated object to the right by one page.
Slide Bar You can push and move the slide bar to scroll the content displayed by the associated object. The
content is scrolled to the same direction as you move the slide bar. The amount of the scrolling is
proportional to the displacement of the slide bar. The position of the slide bar in the scroll bar
indicates the position of the viewable part of the content. The height of the slide bar indicates how
much of the content is viewable.
Scroll Page Left Scrolls the content displayed by the associated object to the left by one page.
Scroll Left Scrolls the content displayed by the associated object to the left.
A vertical scroll bar has the following buttons:
Button Description
Scroll Up Scrolls the content displayed by the associated object to the top.
Scroll Page Up Scrolls the content displayed by the associated object to the top by one page.
Slide Bar You can push and move the slide bar to scroll the content displayed by the associated object. The
content is scrolled to the same direction as you move the slide bar. The amount of the scrolling is
proportional to the displacement of the slide bar. The position of the slide bar in the scroll bar
indicates the position of the viewable part of the content. The width of the slide bar indicates how
much of the content is viewable.
Scroll Page
Down Scrolls the content displayed by the associated object to the bottom by one page.
Scroll Down Scrolls the content displayed by the associated object to the bottom.
