7.6. Time Displays
You can use a time display to show the time of the panel.
7.6.1. Settings

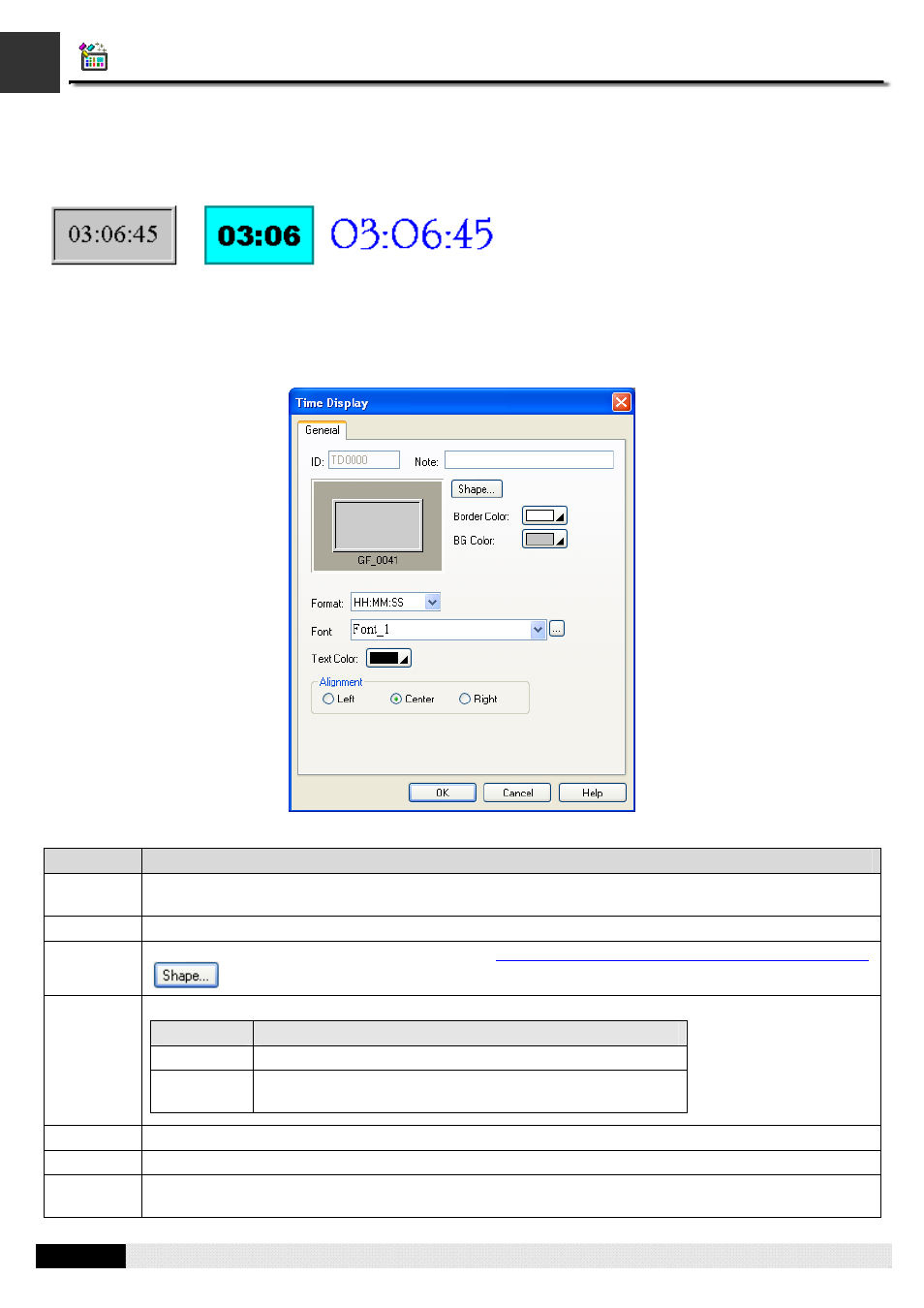

You can complete all the settings of a time display in the Time Display property sheet. The following is an example of the
sheet.
The following table describes each property in the General page.
Property Description
ID The object’s identifier. It is generated when the object is created. The identifier is unique within the
screen where the object is on. The format of the ID’s for the time displays is TDnnnn.
Note You can type a note for the object.
Shape
settings For details about the following properties, see Section 4.3.1.4 Setting up the Shape of an Object.
, Border Color, BG Color
Format The format of how the time is displayed. There are two kinds of format available.
Format Description
HH:MM HH: 00~23 (hour); MM: 00~59 (minute)
HH:MM:SS HH: 00~23 (hour); MM: 00~59 (minute); SS: 00~59
(second)
Font The font of the text.
Text Color The color of the text.
Alignment The alignment of the text in the object. There are three kinds of alignment available: Left, Center, and
Right.
