PM Designer Operation Manual
3-41
CHAPTER 3 CREATING PANEL APPLICATIONS
3.6.4. Status Word Settings (Type A)

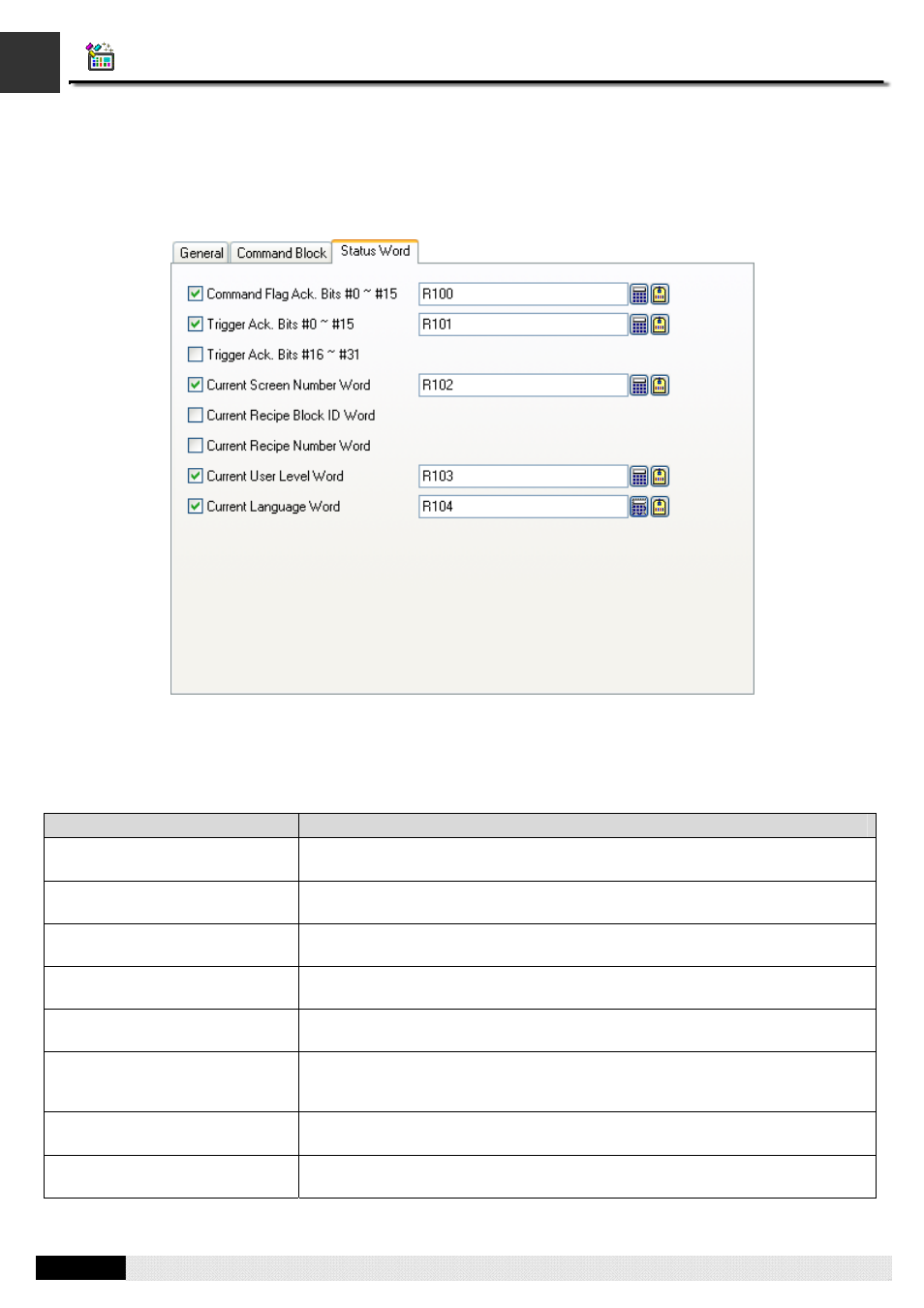

This section describes how to configure the type A status words for your application using the Status Word page of the
Command & Status dialog box. The following is an example of the Status Word page.
In the Status Word page, check the needed status words for your application and specify a word variable that will receive
the status value for each checked status word.
The following table describes when and what the panel will write to each status word.
Status Word Description
Command Flag Ack. Bits #0 ~
#15 The panel will write the states of all the effective command flags to this word
whenever there is any state change occurring on the effective command flags.
Trigger Ack. Bits #0 ~ #15 The panel will write the states of trigger bits #0 ~ #15 to this word whenever there
is any state change occurring on trigger bits #0 ~ #15.
Trigger Ack. Bits #16 ~ #31 The panel will write the states of trigger bits #16 ~ #31 to this word whenever
there is any state change occurring on trigger bits #16 ~ #3.
Current Screen Number Word The panel will write the number of the current main screen to this word whenever
the main screen changes.
Current Recipe Block ID Word The panel will write the current recipe block ID to this word whenever a different
recipe block becomes the current recipe block.
Current Recipe Number Word The panel will write the current recipe number of the current recipe block to this
word whenever a different recipe becomes the current recipe of the current
recipe block.
Current User Level Word The panel will write the current user level to this word whenever the current user
level changes.
Current Language Word The panel will write the current language number to this word whenever it
changes the language.
