PM Designer Operation Manual
9-23
CHAPTER 9 ANIMATED OBJECTS
9.6.5. Path Settings

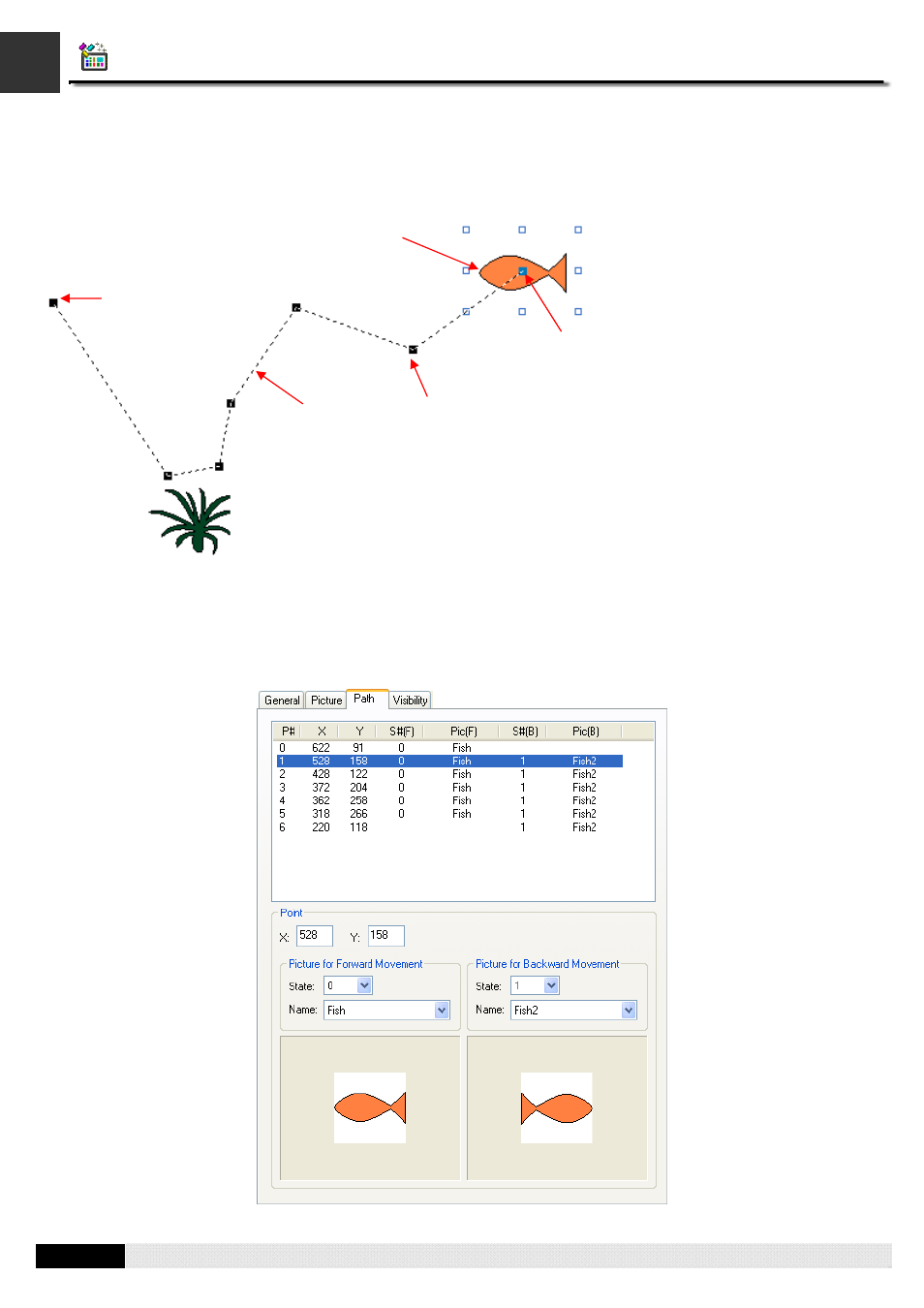

This section describes how to define the path settings for the animated graphics. You can define the path of an animated
graphic in the editing window easily. To edit the path of an animated graphic, click it to display the path as shown in the
following example.
To modify the path, drag path points to desired positions. You can insert a path point by right-clicking at the desired position
on the path and clicking Insert Point on the popped up menu. To delete a path point, right-click at the path point and click
Delete Point on the popped up menu. Use the Path page to define all the properties of the path.
The following is an example of the Path page.
Path point Path
Animated graphic
End point
Start point
