PM Designer Operation Manual
12-23
CHAPTER 12 DATA COLLECTION AND HISTORIC DISPLAYS
12.5. Displaying Time Slice Data Profile Using Single Record Line Charts
12.5.1. Basic Operations
Use the following steps to create a single record line chart:
1) Click Single Record Line Chart icon in the Object toolbar, or select Single Record Line Chart in the Object sub-menu.
2) Move the cursor to the screen on which you want to create the object.
3) Click at the desired position on the screen to place the new object.
You can use a single record line chart to display the values of the data collected by a data logger as a line chart.

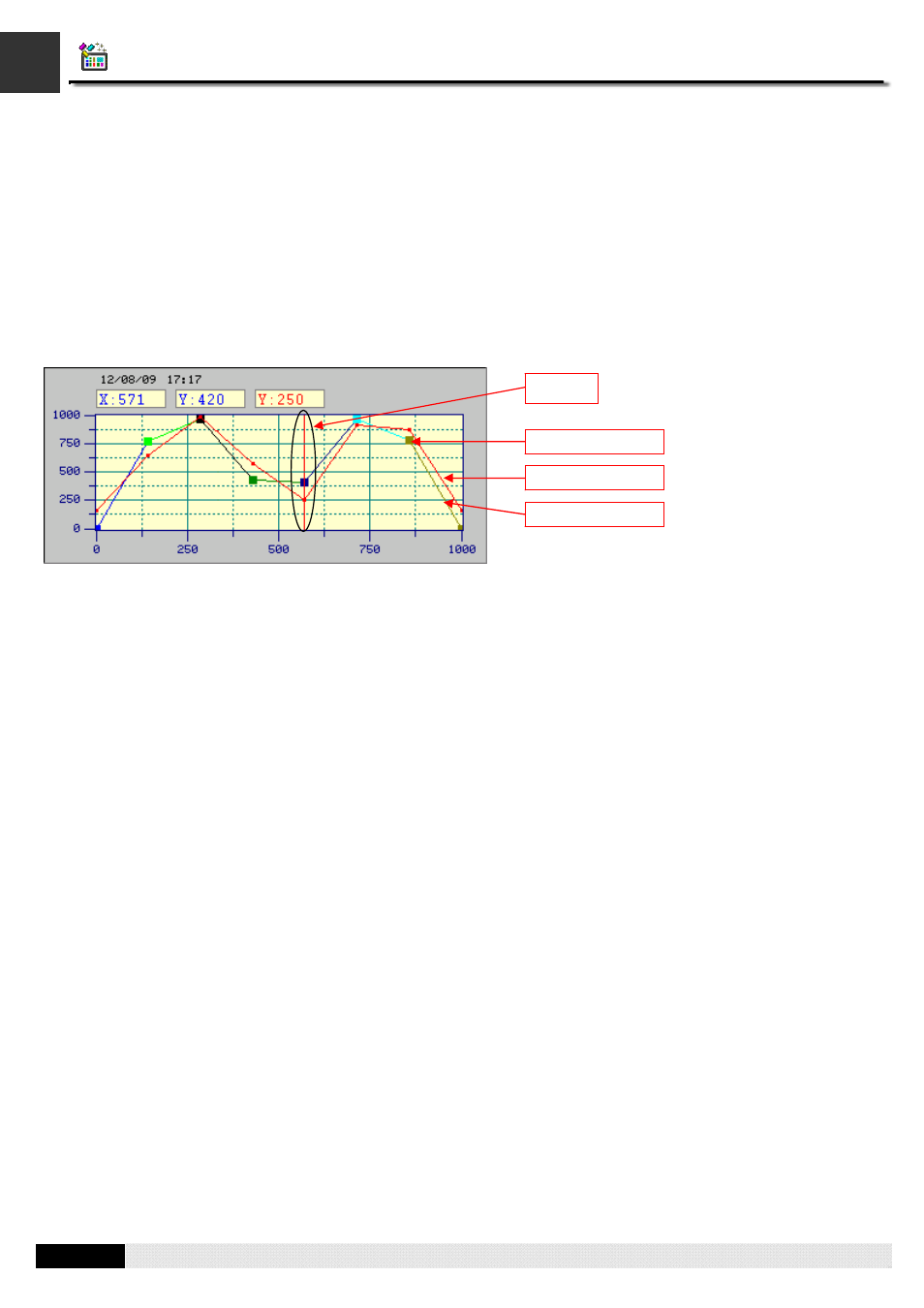

A single record line chart can display up to 255 data points. The above is an example of the single record line chart with 8
data points. A single record line chart can provide a cursor for you to estimate the value in the desired pointer.
Cursor
Data Point Marker
Reference line
Connected line
