CHAPTER 7 DISPLAYING AND INPUTTING DATA
7.8. Day-of-week Displays
You can use a day-of-week display to show the day-of-week of the panel.
7.8.1. Settings
You can complete all the settings of a day-of-week display in the Day-of-week Display property sheet. This sheet contains
the following two pages.
■ General
Described in Section 7.8.2.
■ Text
Described in Section 4.3.1.6.
Note: When using the Text page to specify the text for each day, note that state 0 corresponds to Sunday, state 1
corresponds to Monday, and so on.
7.8.2. General Settings

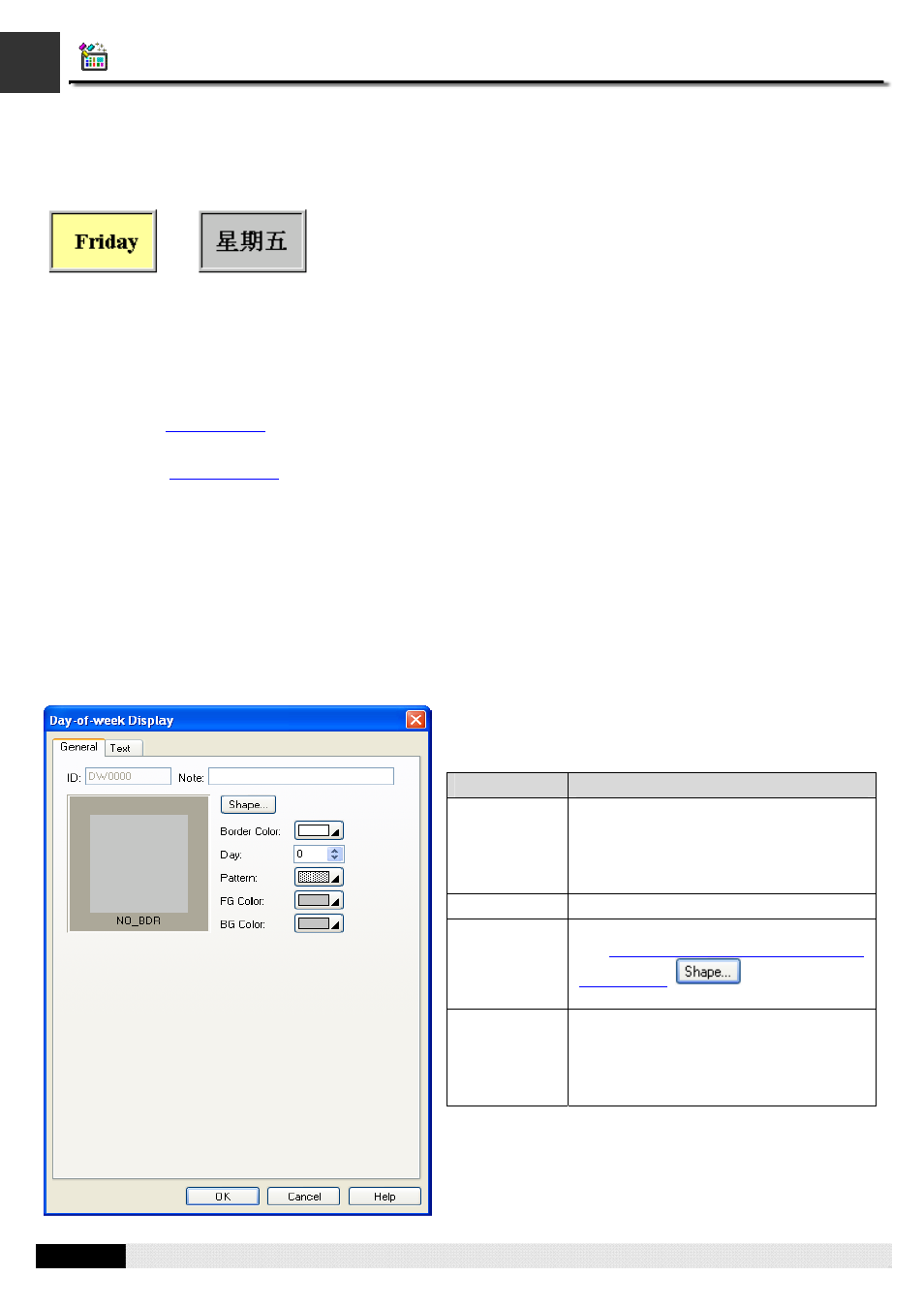

This section describes how to define the general settings for a day-of-week display. The following is an example of the
General page of the Day-of-week property sheet.
The following table describes each property in the General
page.
Property Description
ID The object’s identifier. It is generated
when the object is created. The identifier
is unique within the screen where the
object is on. The format of the ID’s for the
day-of-week displays is DWnnnn.
Note You can type a note for the object.
Shape
settings For details about the following properties,
see
Section 4.3.1.4 Setting up the Shape
of an Object. , Border Color,
Pattern, FG Color, BG Color
Day Select a day from 0 to 6 so you can view
and set the Pattern, FG Color, and BG
Color for that day. Day 0 corresponds to
Sunday; day 1 corresponds to Monday,
and so on.
