PM Designer Operation Manual
7-21
CHAPTER 7 DISPLAYING AND INPUTTING DATA
7.4.4. Advanced Settings
This section describes how to define the advanced settings for the advanced numeric displays and ASCII character entries.

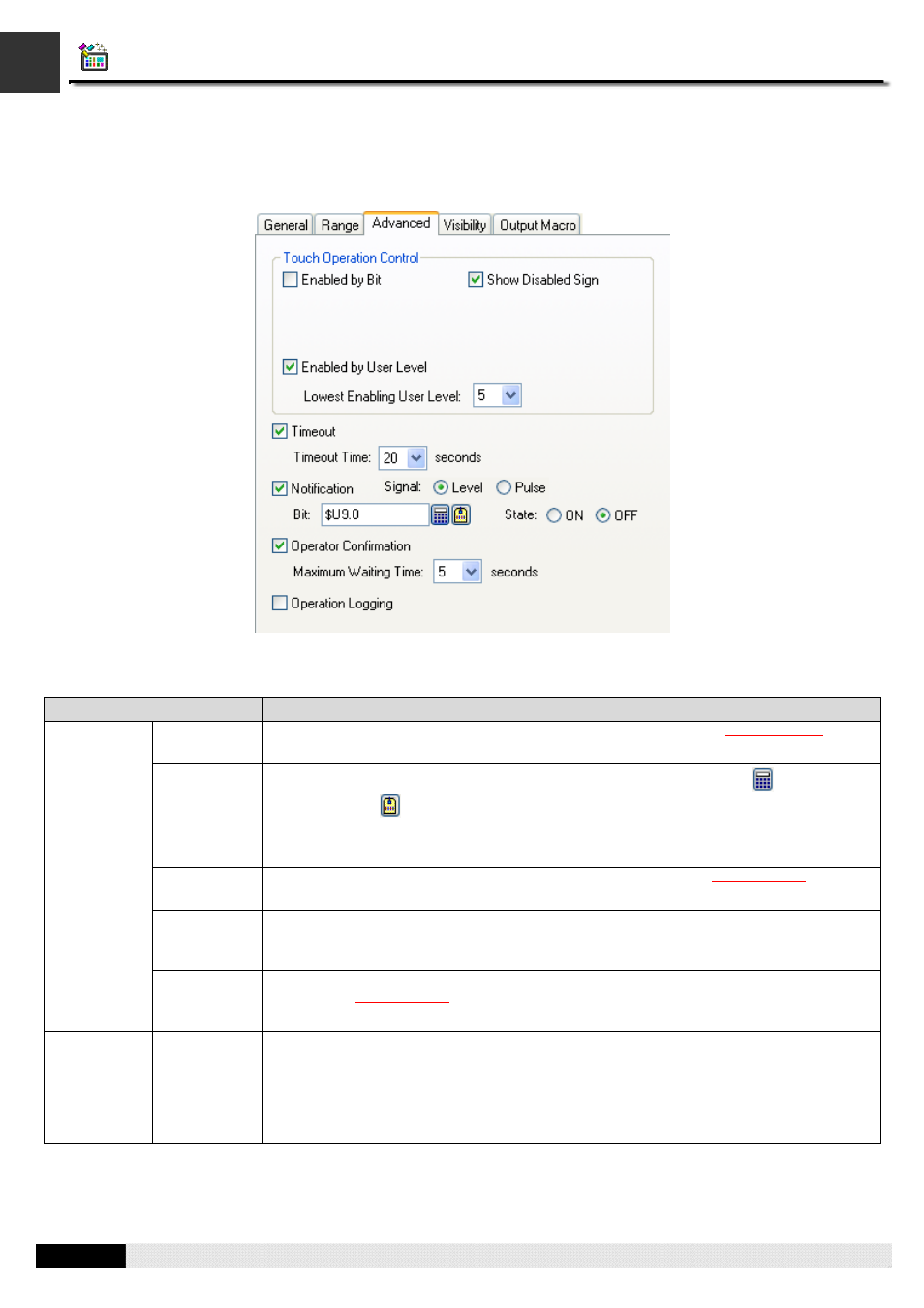

The following is an example of the Advanced page.
The following table describes each property in the Advanced page.
Property Description
Enabled by
Bit Check this option so the touch operation of the ASCII string entry numeric entry will be
enabled and disabled by the specified bit.
Control Bit
Specifies the bit that enables and disables the touch operation. Click to enter a bit
address. Click to select a bit tag.
Enabling
State Specifies the state (On or Off) that enables the touch operation.
Enabled by
User Level Check this item so the touch operation of the ASCII string entry numeric entry will be
enabled and disabled by the current user level.
Lowest
Enabling
User Level Specifies the lowest user level that is required to enable the touch operation.
Touch
Operation
Control
Show
Disabled
Sign Check this option so the touch operation disabled sign will be shown on the ASCII
string entry
numeric entry when the touch operation is disabled.
Timeout Check this option so the data entry will be cancelled if the numeric keypad does not
receive any input within the specified time. Timeout
Timeout
Time Specifies the maximum time that the numeric keypad will wait to get a new input. If
there is no input within the specified time, the ASCII string keypad will be closed and
the data entry will be cancelled.
Continued
