3.6.6 Two digital outputs 0.5 A − EPM−S300 and EPM−S303 (NPN)
This module detects up to two binary control signals from the higher−level bus system and
transmits them to the process level.
Features
ƒ 2 digital outputs (EPM−S303 N−switching)
ƒ LEDs display the switching states of the digital outputs
Overview
2 6
3 7
4 8
1 5
DO
DC24V
0V
2 6
3 7
4 8
1 5
DO
DC24V
0V
EPM-S300 EPM-S303
 €  €
DO1 DO1 DO2 DO2
1
0
SLIOS300

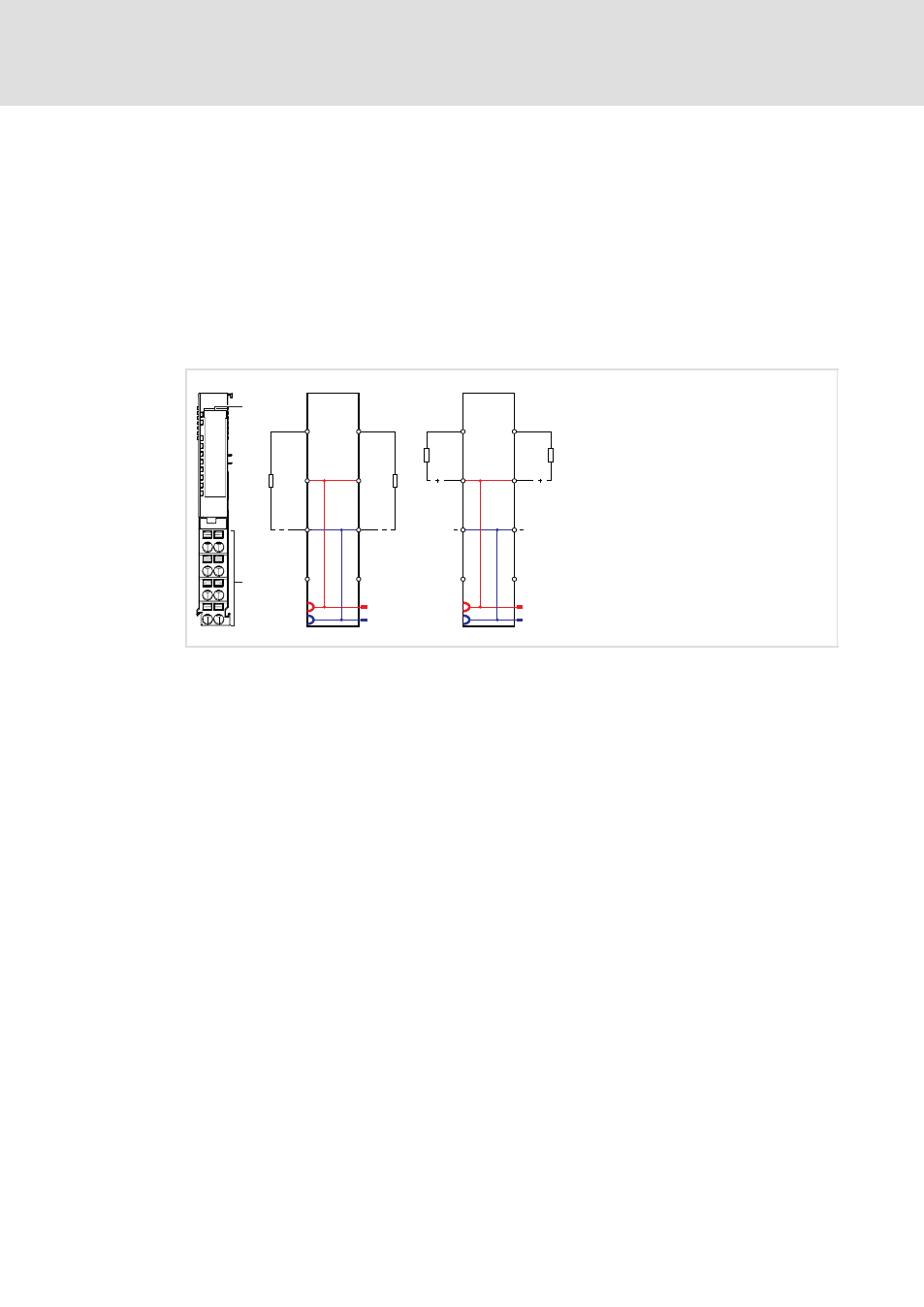

Fig. 3−21 Elements and circuit diagram
0 Displays for module status
1 Terminals
1 ... 8 Connection number
€ ... ‡ Bit number in bit presentation
