Product description

I/O compound modules − analog I/O

2 analog outputs 0 ... 10 V (12 bits) − EPM−S500

3

l

131

EDSIO1000 EN 7.0

3.7.8

2 analog outputs 0 ... 10 V (12 bits) − EPM−S500

This module detects up to two analog control signals from the higher−level bus system and
transmits them to the process level.

Features

ƒ

2 analog outputs

ƒ

Voltage output 0 ... +10 V

ƒ

12−bit resolution

ƒ

Signal function is parameterisable

ƒ

24 V DC supply voltage

ƒ

A reference potential for all outputs

ƒ

An LED indicates if an output signal is outside the permissible measuring range

Overview

DC24V

0V

AO

1

2

3

4

5

6

7

8

EPM-S500

AO1

AO2

1

0

SLIOS500

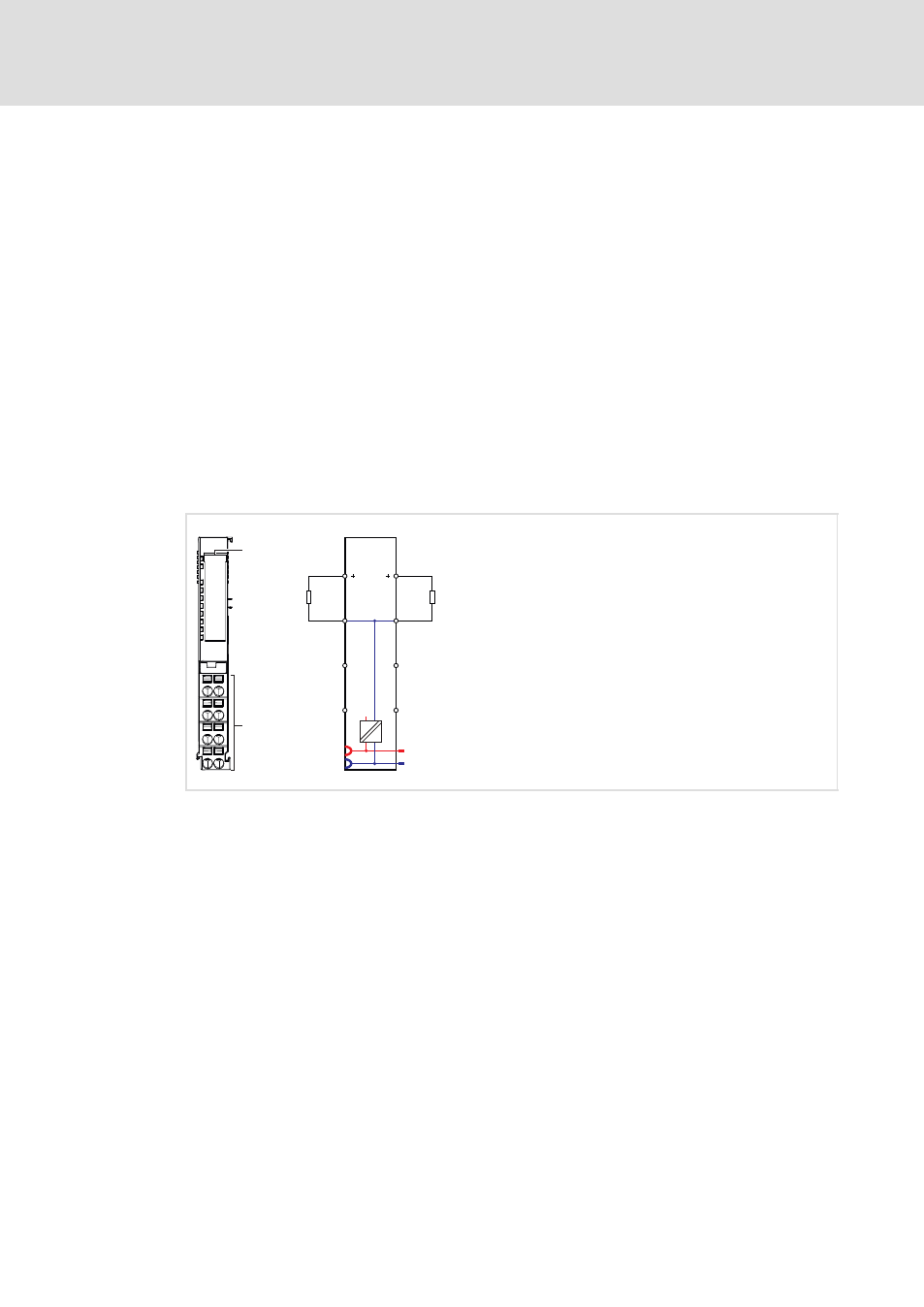

Fig. 3−35

Elements and circuit diagram

0

Displays for module status

1

Terminals

1 ... 8

Connection number
