Product description
I/O compound modules − digital I/O
Eight digital inputs − EPM−S202 and EPM−S206 (NPN)
3
l
73 EDSIO1000 EN 7.0
3.6.3 Eight digital inputs − EPM−S202 and EPM−S206 (NPN)
This module detects up to eight binary control signals from the process level and transmits
them to the higher−level bus system.
Features
ƒ 8 digital inputs (EPM−S206: N−switching)
ƒ Suitable for switches and proximity switches
ƒ LEDs display the switching states of the digital inputs
Overview
2 6
3 7
4 8
1 5
DI
DC24V
0V
DC24V DC24V
EPM-S202 EPM-S206
2 6
3 7
4 8
1 5
DI
DC24V
0V
0V 0V

ƒ
€
‚
„
‡ †

ƒ
€
‚
„
‡ †
DI1 DI1
DI3 DI3
DI2 DI2
DI4 DI4
DI5 DI5
DI7 DI7
DI6 DI6
DI8 DI8
1
0
SLIOS202

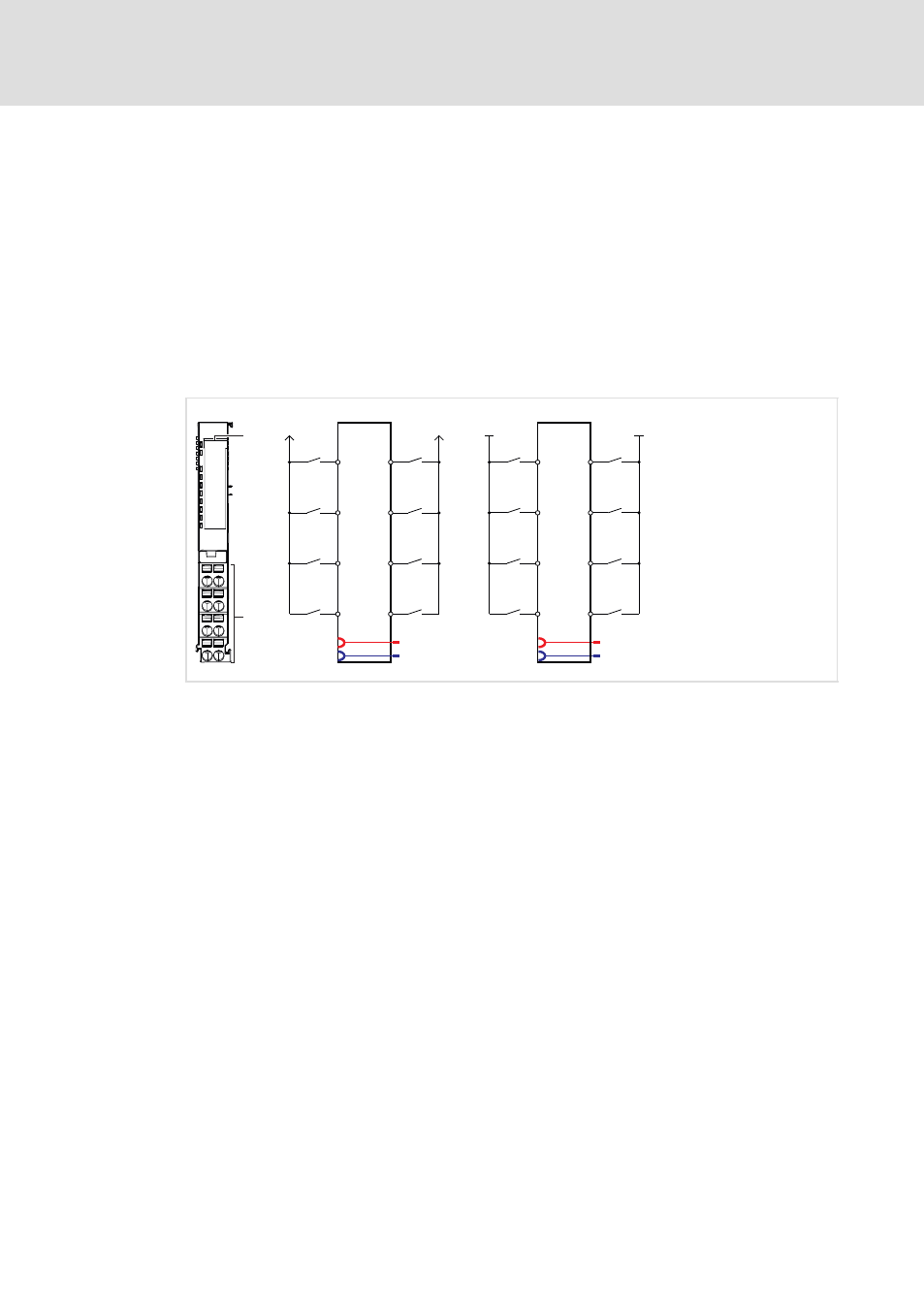

Fig. 3−17 Elements and circuit diagram
0 Displays for module status
1 Terminals
1 ... 8 Connection number
€ ... ‡ Bit number in bit presentation
