3.6 I/O compound modules − digital I/O
3.6.1 Two digital inputs − EPM−S200 and EPM−S204 (NPN)
This module detects up to two binary control signals from the process level and transmits
them to the higher−level bus system.
Features
ƒ 2 digital inputs (EPM−S204: N−switching)
ƒ Suitable for switches and proximity switches
ƒ LEDs display the switching states of the digital inputs
Overview
2 6
3 7
4 8
1 5
EPM-S200
DC24V
0V
2 6
3 7
4 8
1 5
DI
DC24V
0V
DI
EPM-S204
 €  €
DI1 DI1 DI2 DI2
1
0
SLIOS200

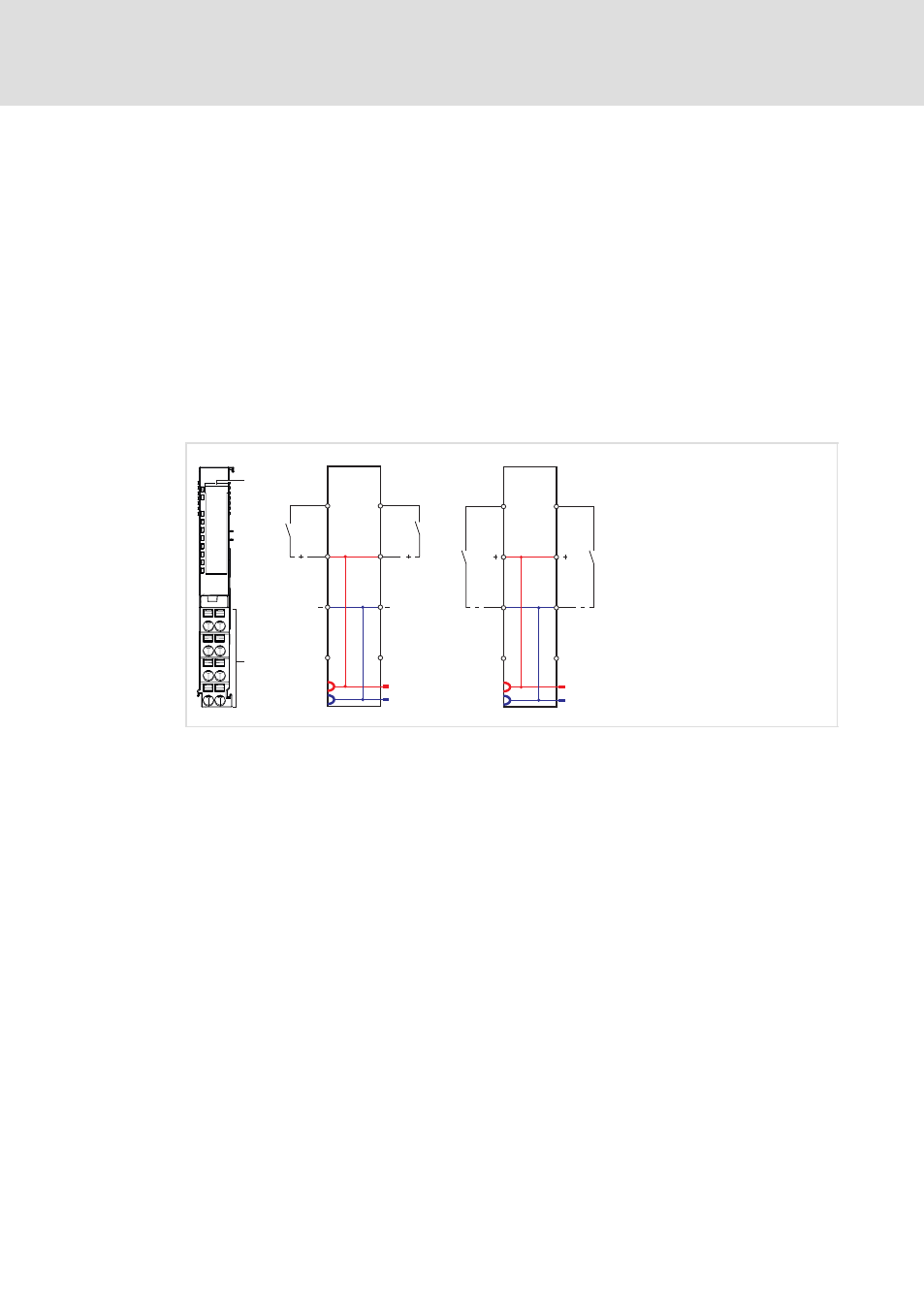

Fig. 3−15 Elements and circuit diagram
0 Displays for module status
1 Terminals
1 ... 8 Connection number
€ ... ‡ Bit number in bit presentation
