Product description
I/O compound modules − counter
One counter 32 bits, 24 V DC − EPM−S600
l
156
EDSIO1000 EN 7.0
3.9
I/O compound modules − counter
3.9.1
One counter 32 bits, 24 V DC − EPM−S600
This module measures the pulses of one connected encoder and processes them according
to the mode selected.
Features
ƒ
1 counter 32 bits (AB), invertible, DC 24 V
ƒ
Counting frequency max. 400 kHz
ƒ
Latch value, comparison value, set value, input filter
ƒ
Hardware gate, digital output
ƒ
Alarm and diagnostic function

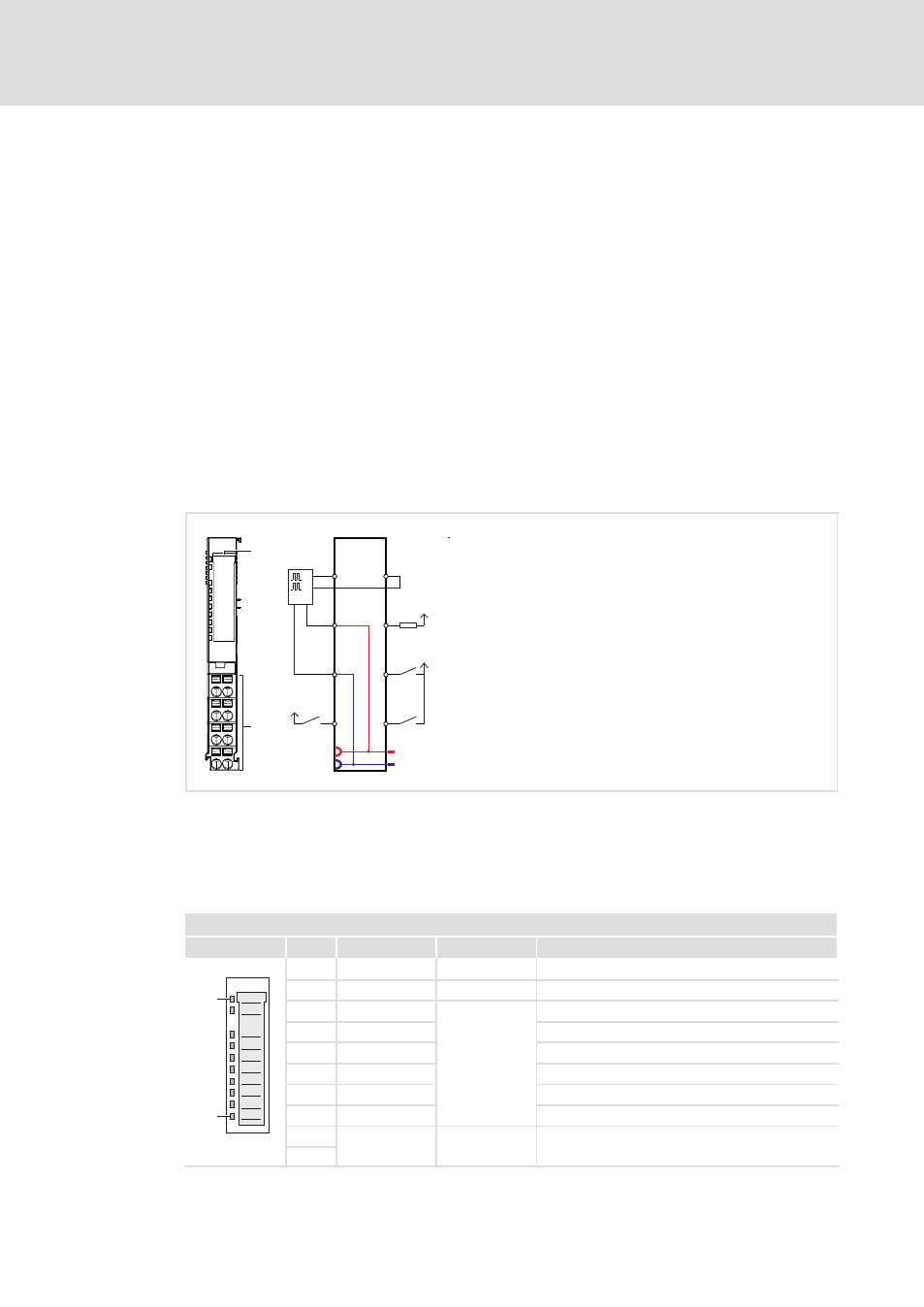

Overview
EPM-S600
2
6
3
7
4
8
1
A
L
B
OUT
R
G
- +
5
DC24V
DC24V
DC24V
0V
0V
A
B
1
0
SLIOS600
Fig. 3−41
Elements and circuit diagram
0
Displays for module status
1
Terminals
1 ... 8
Connection number
Status displays
Module status LEDs
0
View
Pos.
Designation
Colour
Explanation
1
10
1
RUN
Green
On: Module is ready for operation
2
MF
Red
On: Module error (see table below)
3
A
Green
On: Digital input 1 "A"/"pulse" triggered
4
B
On: Digital input 5 "B"/"direction" triggered
5
Latch
On: Digital input 4 "Latch" triggered
6
Gate
On: Digital input 8 "Hardware gate" triggered
7
Reset
On: Digital input 7 "Reset" triggered
8
OUT
On: Digital output "OUT" triggered
9
−
Not assigned
SLIO001
