Product description
I/O compound modules − digital I/O
Eight digital inputs − EPM−S202 and EPM−S206 (NPN)
3
l
74 EDSIO1000 EN 7.0

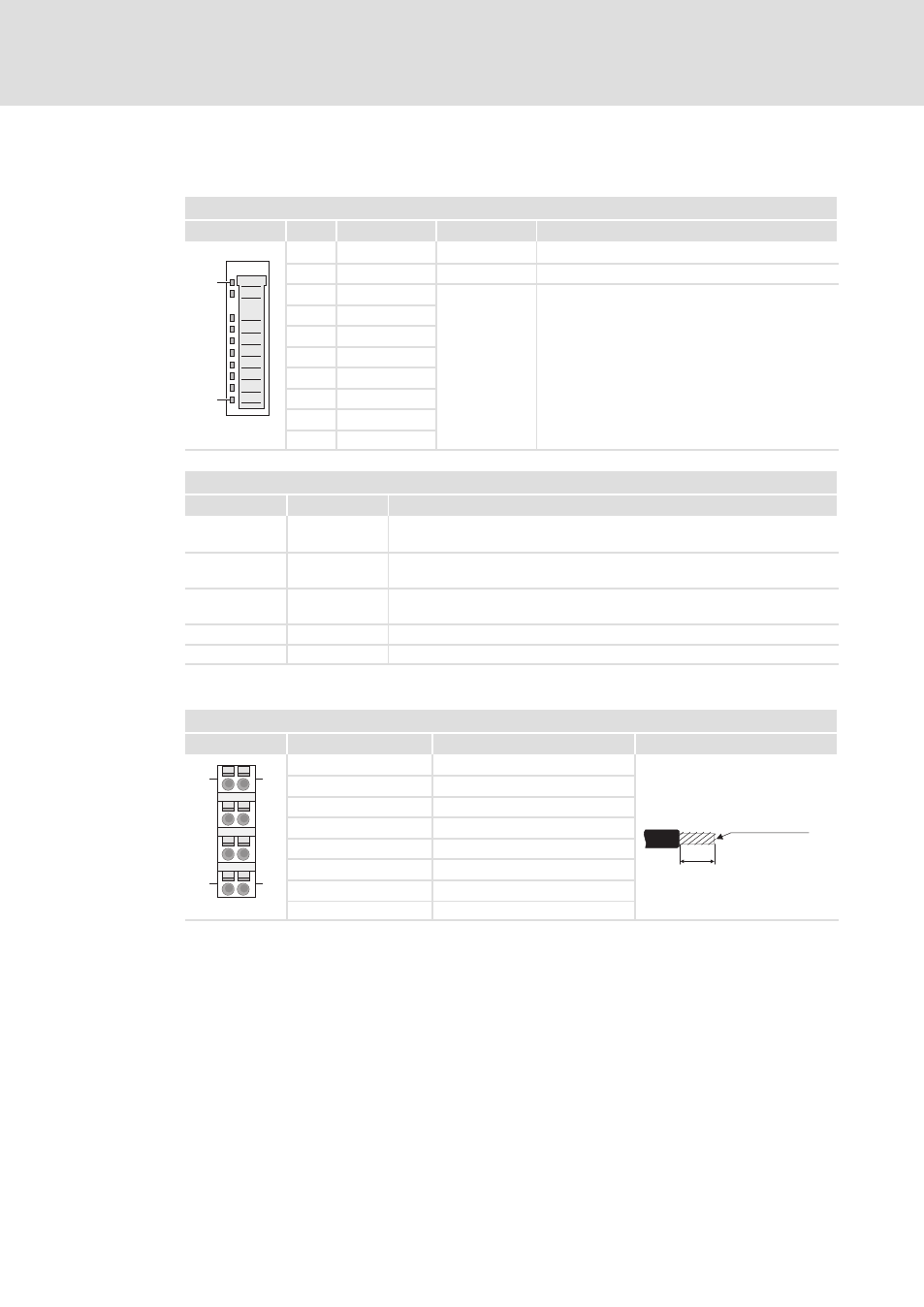

Status displays
Module status LEDs 0
View Pos. Designation Colour Explanation
1
10
1 RUN Green On: Module is ready for operation
2 MF Red On: Module error (see table below)
3 DI1
Green On: Digital input triggered
4 DI2
5 DI3
6 DI4
7 DI5
8 DI6
9 DI7
SLIO001 10 DI8
Messages of the status LEDs RUN and MF
RUN MF Meaning
On Off
Module status OK
Bus communication is OK
On On
Module reports error
Bus communication is OK
Off On
Module reports error
Bus communication not possible
Off Off Error in the bus supply voltage
Blinking Blinking Configuration error ( ^ 249)
Terminals
Module terminals, spring terminals 1
View Designation Explanation Terminal data
2 6
3 7
4 8
1 5 1 5
4 8
1 Digital input DI1
10 mm
0.08 ... 1.5 mm²
(AWG 28 ... 16)
2 Digital input DI3
3 Digital input DI5
4 Digital input DI7
5 Digital input DI2
6 Digital input DI4
7 Digital input DI6
SLIO002 8 Digital input DI8
