Product description
I/O compound modules − analog I/O
2 analog outputs 0/4 ... 20 mA (12 bits) − EPM−S502
3
l
139 EDSIO1000 EN 7.0
3.7.10 2 analog outputs 0/4 ... 20 mA (12 bits) − EPM−S502
This module detects up to two analog control signals from the higher−level bus system and
transmits them to the process level.
Features
ƒ 2 analog outputs
ƒ Current output 0/4 ... 20 mA
ƒ 12−bit resolution
ƒ Signal function is parameterisable
ƒ 24 V DC supply voltage
ƒ A reference potential for all outputs
ƒ An LED indicates if an output signal is outside the permissible measuring range
Overview
DC24V
0V
AO
1
2
3
4
5
6
7
8
EPM-S502
AO1 AO2
1
0
SLIOS502

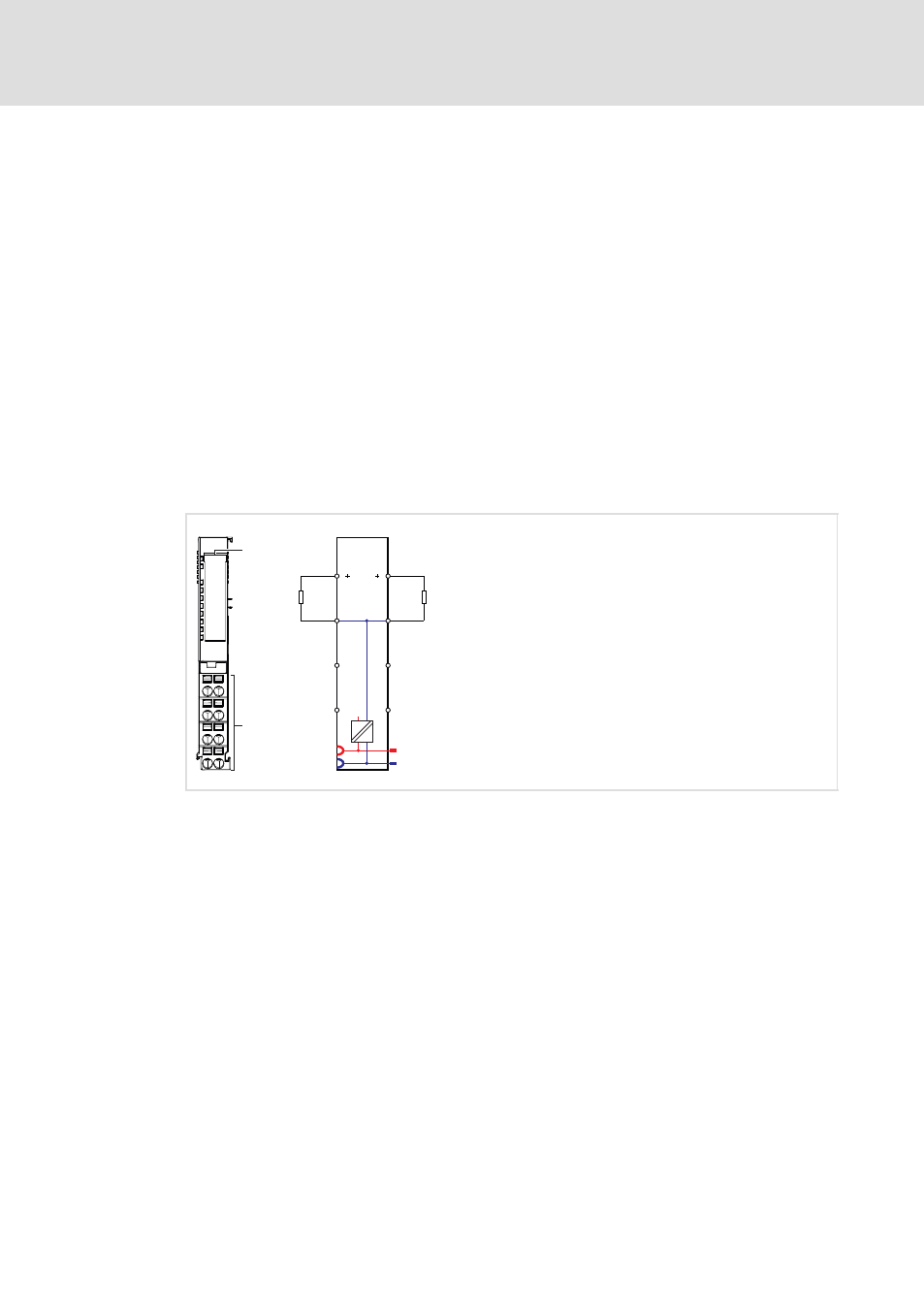

Fig. 3−37 Elements and circuit diagram
0
Displays for module status
1 Terminals
1 ... 8 Connection number
