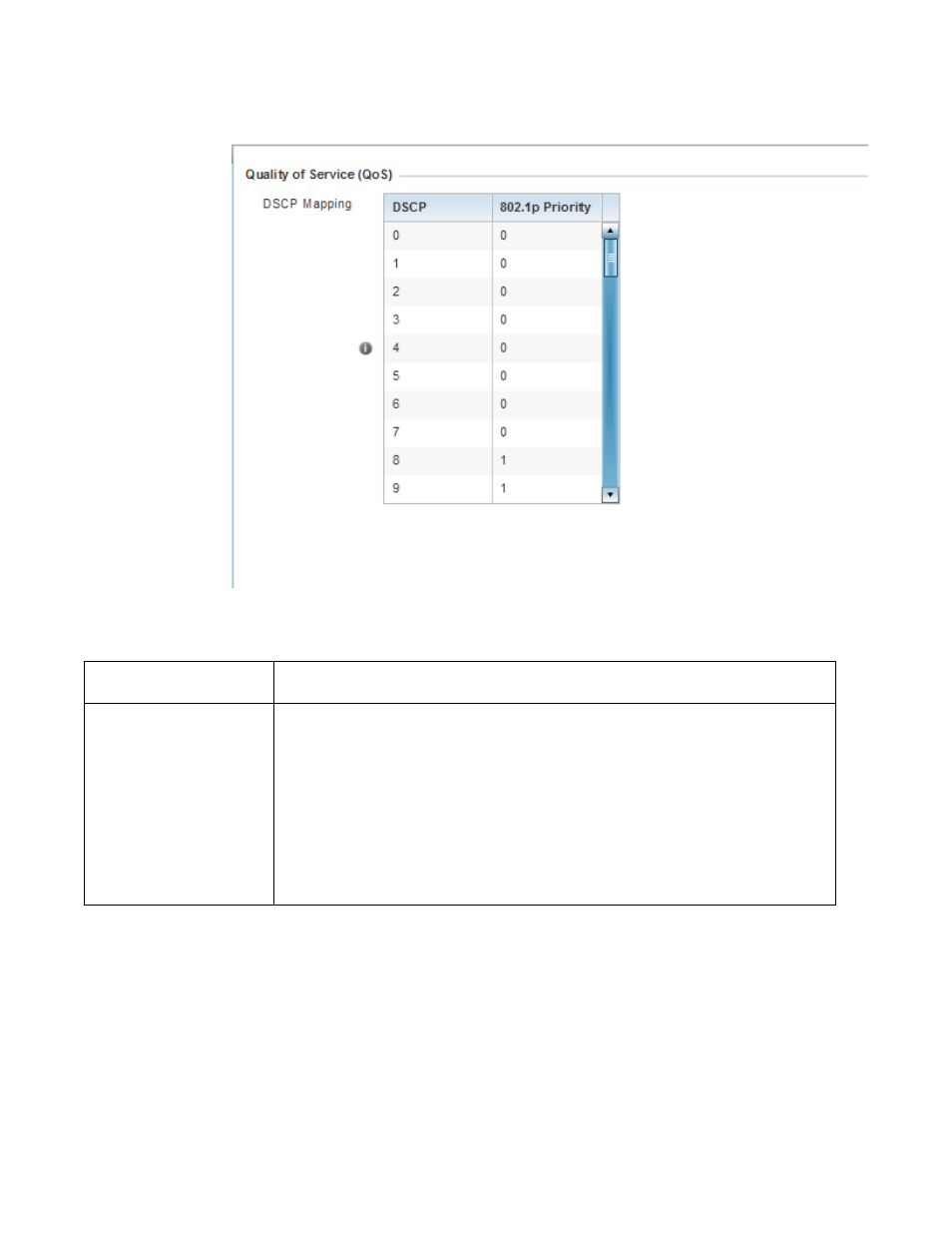

FIGURE 39 Profile - Network QoS screen
4. Set the following parameters for IP DSCP mappings for untagged frames:
5. Use the spinner controls within the 802.1p Priority field for each DSCP row to change the
priority value.
6. Select the OK button located to save the changes. Select Reset to revert to the last saved
configuration.
Spanning Tree
Profile Network Configuration
DSCP Lists the DSCP value as a 6-bit parameter in the header of every IP packet used for packet
classification.
802.1p Priority Assign a 802.1p priority as a 3-bit IP precedence value in the Type of Service field of the IP header
used to set the priority. The valid values for this field are 0-7. Up to 64 entries are permitted. The
priority values are:
0 – Best Effort
1 – Background
2 – Spare
3 – Excellent Effort
4 – Controlled Load
5 – Video
6 – Voice
7 – Network Control
