6
Select an existing Inbound IP Firewall Rule and Outbound IP Firewall Rule using the
drop-down menu. If no rules exist, select the Create icon to display a screen where Firewall
rules can be created. Select the Edit icon to modify the configuration of a selected Firewall
policy configuration.
4. If creating a new IP firewall rule, provide a name up to 32 characters.
5. Select the Add button.

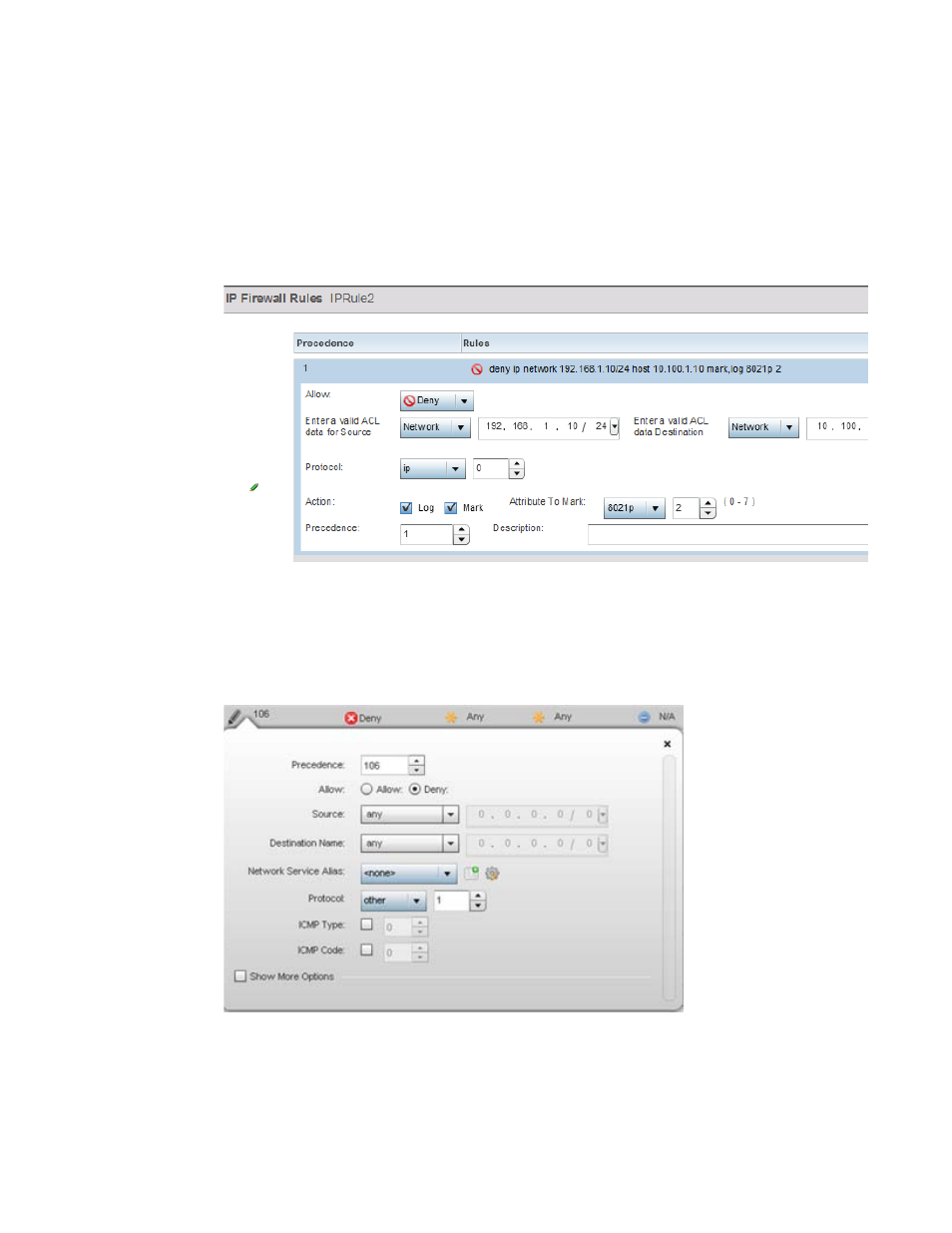

FIGURE 18 IP Firewall Rules screen
6. IP firewall rule configurations can either be modified as a collective group of variables or
selected and updated individually as their filtering attributes require a more refined update.
Select the Edit Rule icon to the left of a particular IP firewall rule configuration to update
its parameters collectively.
FIGURE 19 IP Firewall Rules Add Criteria screen
Click the icon within the Description column (top right-hand side of the screen) and select
IP filter values as needed to add criteria into the configuration of the IP ACL.
