AT-S62 User’s Guide
Section VIII: Web Browser Management 819
Displaying the Management ACL
To display the ACEs in the Management ACL, do the following:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. Click Security.
3. Select the Mgmt ACL tab.
The Mgmt ACL tab is shown in Figure 303.

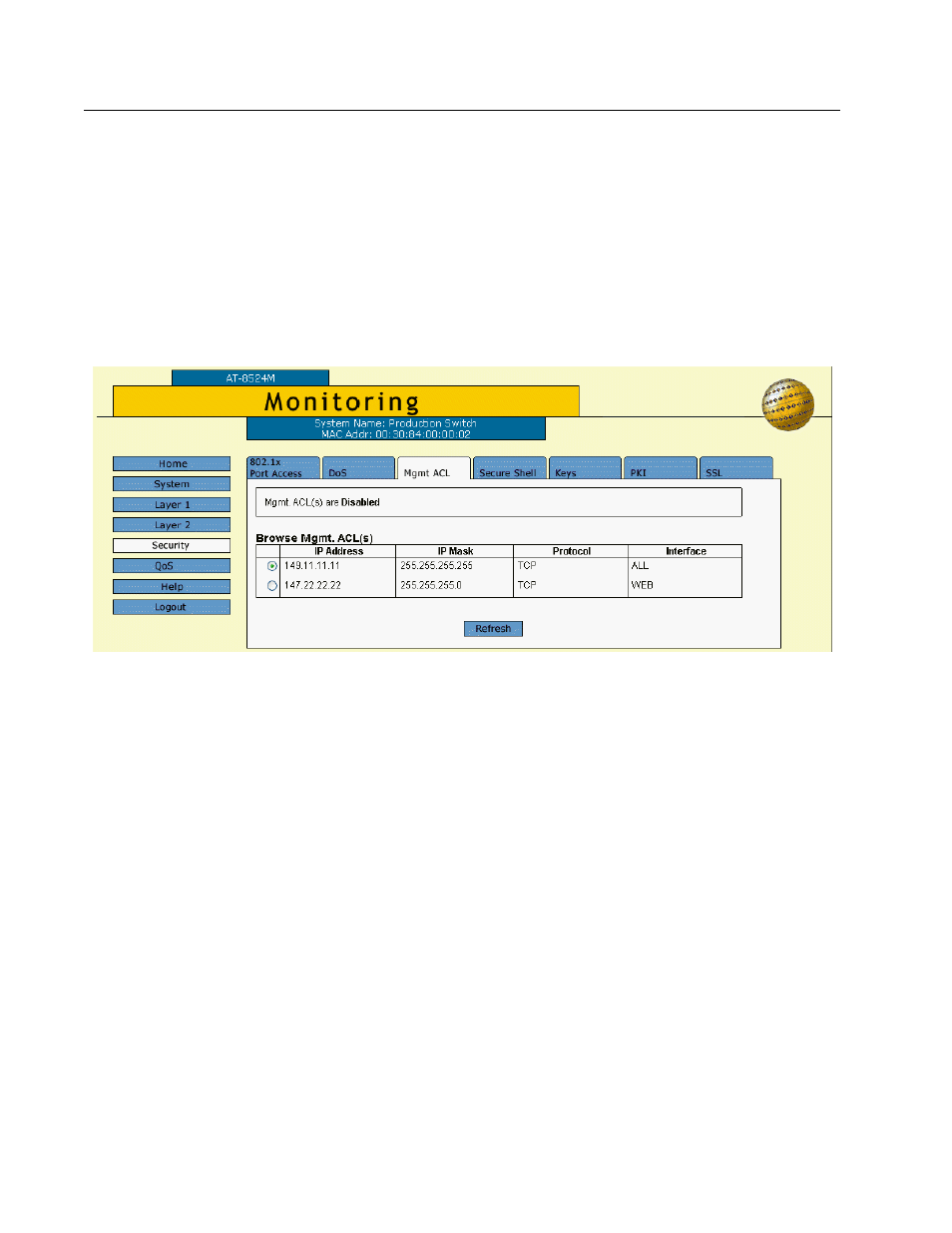

Figure 303 Mgmt ACL Tab (Monitoring)
The information in the tab is described below:
IP Address
The IP address of a management workstation or subnet.
IP Mask
The mask used by the switch to filter the IP address.
Protocol
The protocol of the Telnet or web browser management packets.
This will be either TCP or ALL.
Interface
The management interface allowed by the ACE. This will be
TELNET, WEB, or ALL.
