AT-S62 User’s Guide
Section VIII: Web Browser Management 595
Pinging a Remote System
You can instruct the switch to ping a node on your network. This
procedure is useful in determining whether a valid link exists between
the switch and another device.
To ping a network device, perform the following procedure:
1. From the Home Page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. Select the Ping Client tab.
The Ping Client tab is shown in Figure 196.

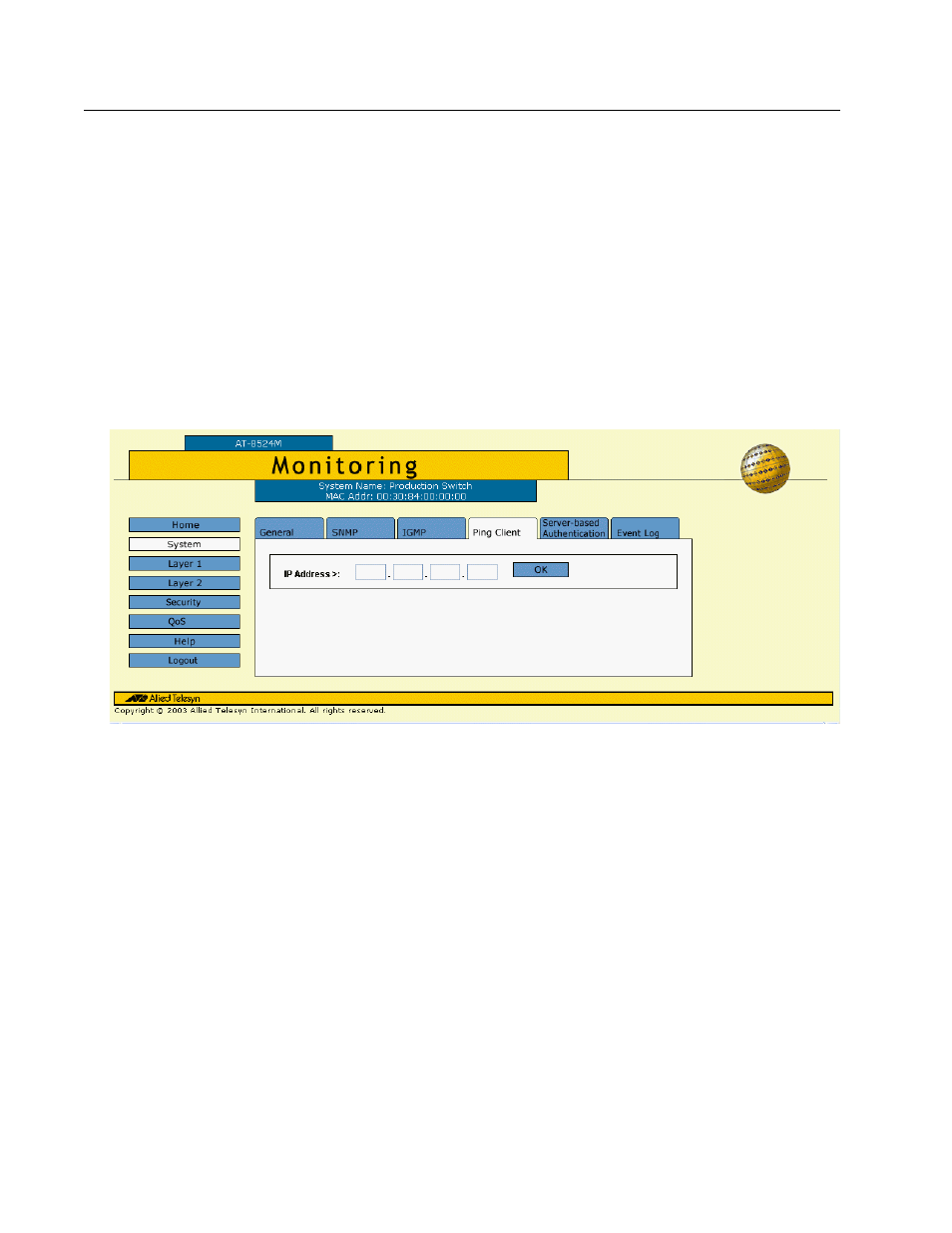

Figure 196 Ping Client Tab
3. Enter the IP address of the end node you want the switch to ping.
4. Click OK.
The results of the ping are displayed in a popup window.
5. To stop the ping, click OK.
