Chapter 12: File Downloads and Uploads
Section II: Advanced Operations 174

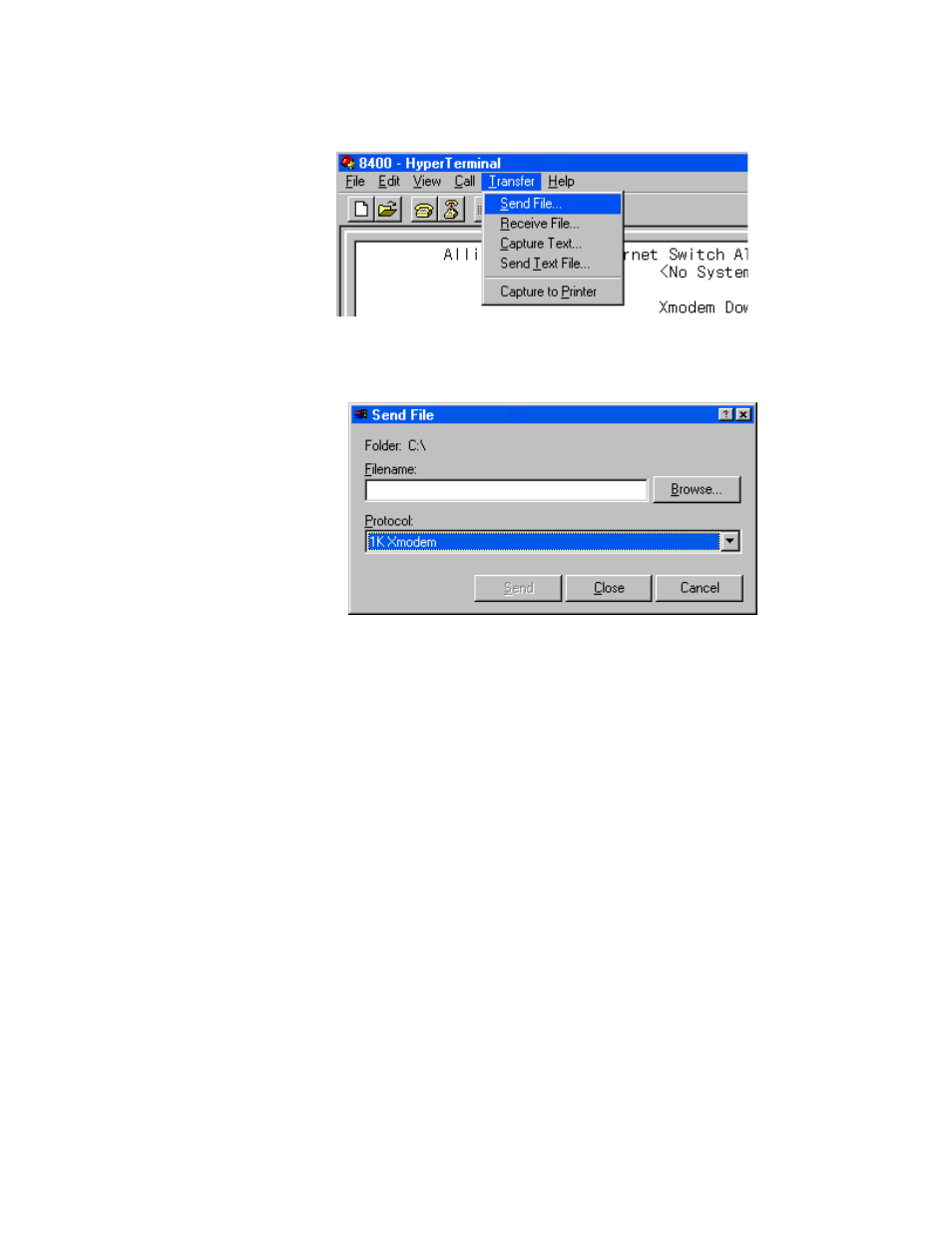

11. From the HyperTerminal main window, select the Transfer menu.
Then select Send File from the pull-down menu, as shown in Figure
45.
Figure 48 Local Management Window
The Send File window is shown in Figure 46.
Figure 49 Send File Window
12. Click the Browse button and specify the location and system file to be
downloaded onto the switch.
13. Click on the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Send.
