The VLAN Mode and Uplink Port options are explained in
Selecting a VLAN Mode on page 771. The Mgmt. VLAN ID option
is explained in Specifying a Management VLAN on page 773.
The tab displays the VLANs on the switch. The columns in the tab
are defined below:
VLAN ID
The VID number assigned to the VLAN.
(Client) Name
The name of the VLAN.
Uplink Port
This column is applicable only when the switch is operating in one
of the two multiple VLAN modes. The column lists the port that is
functioning as the uplink port for the other ports on the switch.
Type - Either Port Based, for both port-based and tagged VLANs, or
GVRP Dynamic, for VLANs created by GVRP.
Protocol - Not used.
Tagged(T)/Untagged(U) Port
Lists the ports of the VLAN. Tagged ports are designated with a “T”
and untagged ports with a “U.”
4. To add a new VLAN, click Add.
The Add New VLAN page is shown in Figure 276.

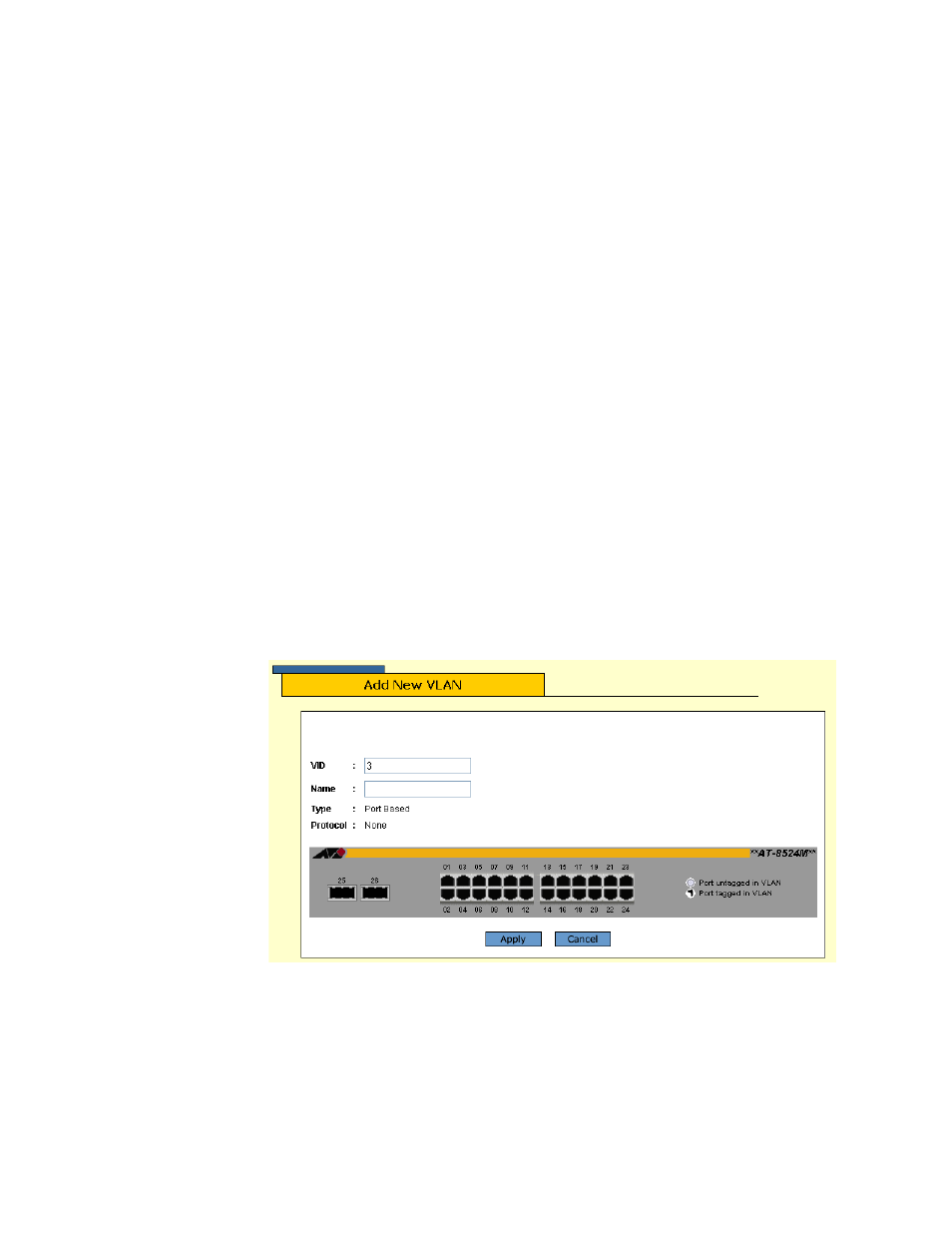

Figure 276 Add New VLAN Page
5. Select the VID field and enter a VID value for the new VLAN. The range
of the VID value is 2 to 4096. The default is the next available VID
number on the switch.
