Allied Telesis AT-S62 - Manual (Page 677)

AT-S62 User’s Guide
Section VIII: Web Browser Management 677
Displaying the DoS Settings
To display the DoS settings, do the following:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590
2. From the Monitoring menu, select the Security option.
The Security page opens with the 802.1x Port Access tab selected
by default, as shown in Figure 287 on page 795.
3. Select the DoS tab.
The DoS tab is shown in Figure 231.

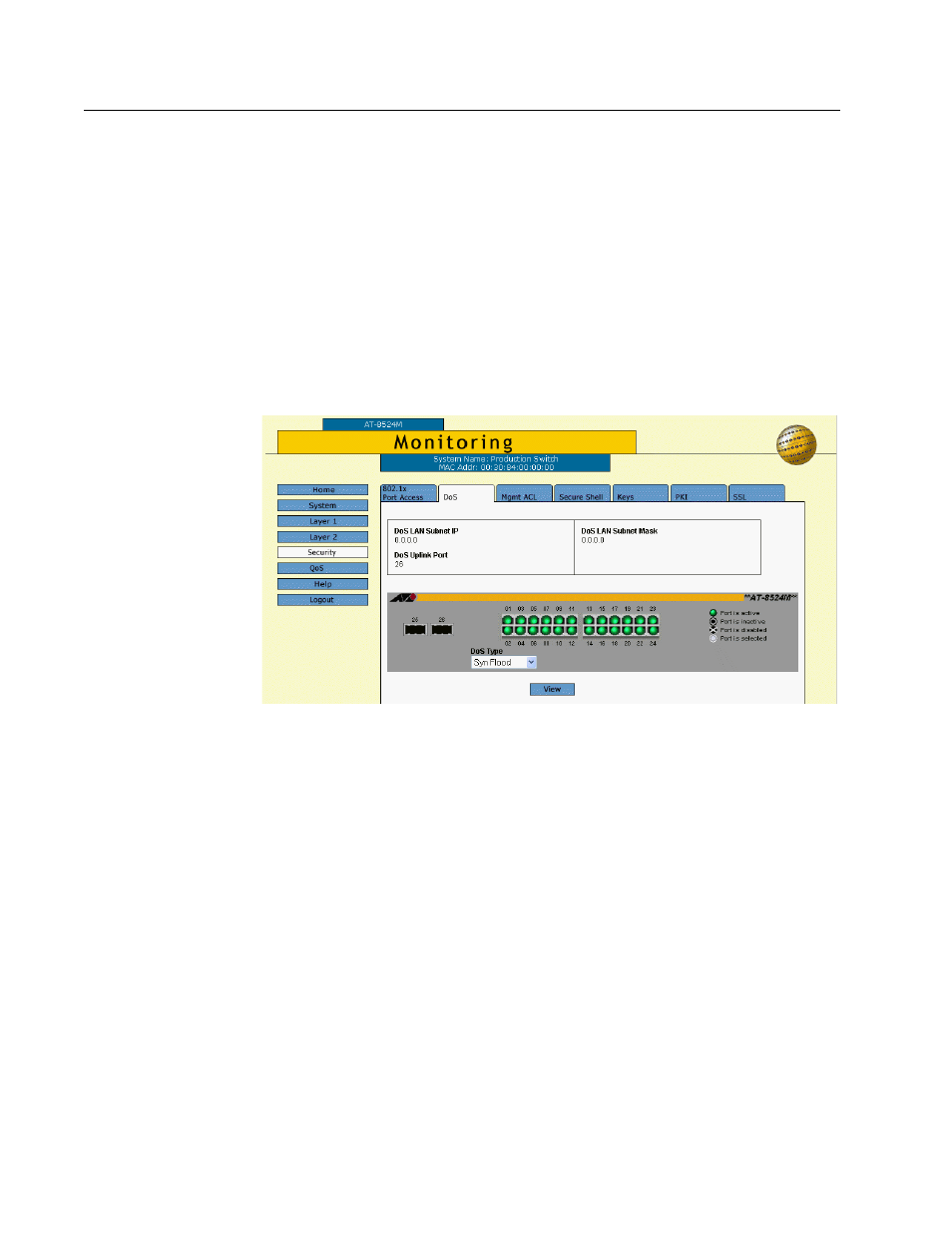

Figure 231 DoS Tab (Monitoring)
4. Click the port whose DoS settings you want to view. You can select
more than one port at a time.
5. Using the DoS Type list, select the type of Denial of Service defense
whose settings you want to view.
6. Click View.
