Allied Telesis AT-S62 - Manual (Page 164)

Chapter 12: File Downloads and Uploads
Section II: Advanced Operations 164
The following prompt is displayed:
You are going to invoke the Xmodem download utility.
Do you wish to continue? [Yes/No]
Note: Please select 1K Xmodem protocol for faster
download.
8. Type Y for Yes.
The prompt “Downloading” is displayed.
9. Begin the file transfer of the new management software image.
Note
The transfer protocol must be Xmodem or 1K Xmodem.
Steps 10 through 13 illustrate how you would download a file using
the Hilgraeve HyperTerminal program.
10. From the HyperTerminal main window, select the Transfer menu.
Then select Send File from the pull-down menu, as shown in Figure
45.

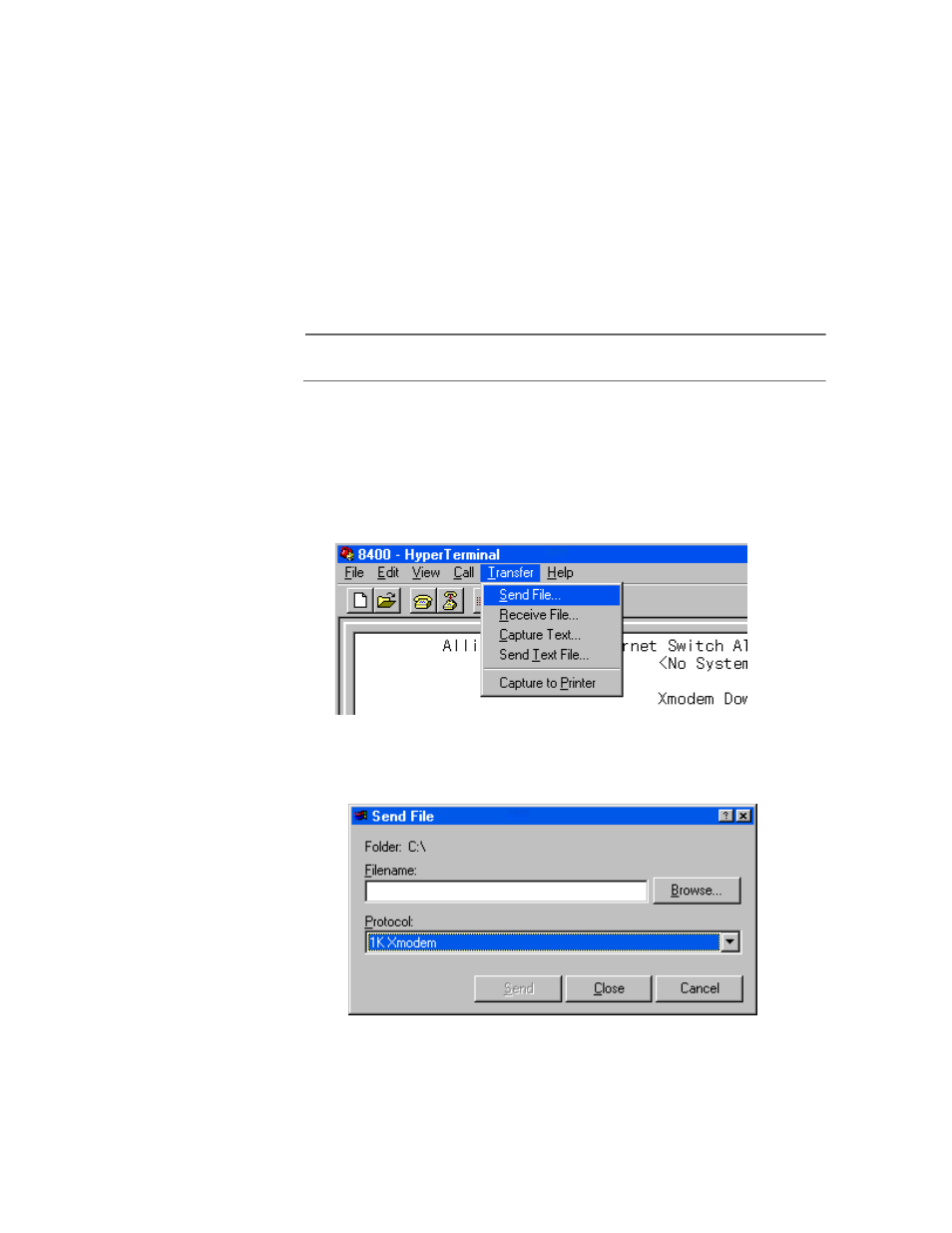

Figure 45 Local Management Window
The Send File window is shown in Figure 46.
Figure 46 Send File Window
