Chapter 19: Multiple Spanning Tree Protocol
Section IV: Spanning Tree Protocols 360
Figure 112 illustrates the concept of regions. It shows one MSTP region
consisting of two AT-8524M switches. Each switch in the region has the
same configuration name and revision level. The switches also have the
same five VLANs and the VLANs are associated with the same MSTIs.

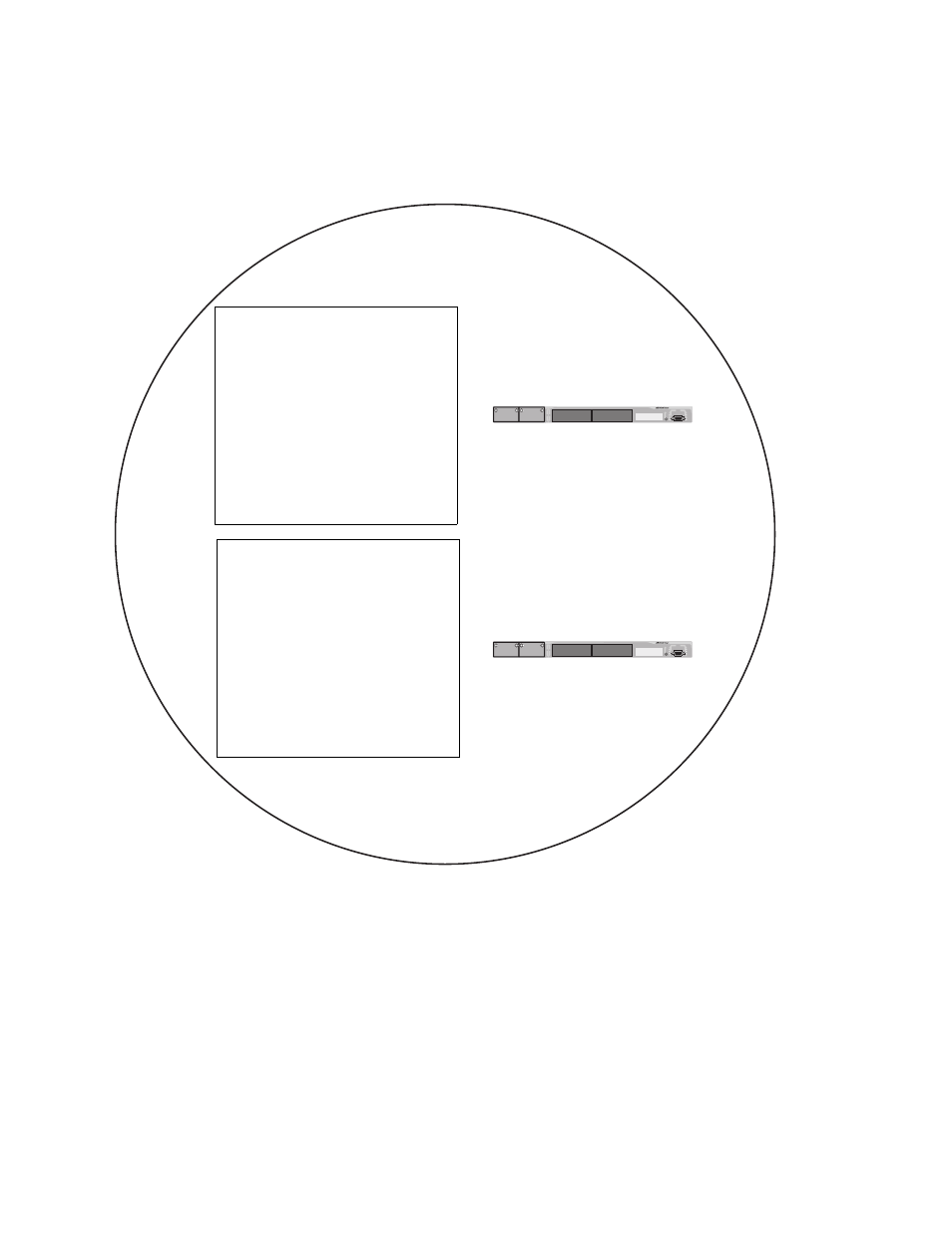

Figure 112 Multiple Spanning Tree Region
AT-8524M
AT-8524M
Configuration Name: Marketing Region
Revision Level: 1
VLAN to MSTI Associations:
MSTI ID 1
VLAN: Sales (VID 2)
VLAN: Presales (VID 3)
MSTI ID 2
VLAN: Accounting (VID 4)
MSTI ID 3
VLAN: Marketing (VID 5)
VLAN: Sales Support (VID 6)
Configuration Name: Marketing Region
Revision Level: 1
VLAN to MSTI Associations:
MSTI ID 1
VLAN: Sales (VID 2)
VLAN: Presales (VID 3)
MSTI ID 2
VLAN: Accounting (VID 4)
MSTI ID 3
VLAN: Marketing (VID 5)
VLAN: Sales Support (VID 6)
