Chapter 35: Port Parameters
Section VIII: Web Browser Management 618
Speed
The operating speed of the port. Possible values are:
0010 - 10 Mbps
0100 - 100 Mbps
1000 - 1000 Mbps (Optional expansion ports only.)
Duplex
The duplex mode of the port. Possible values are half-duplex and
full-duplex.
PVID
The port VLAN identifier assigned to the port.
Flow Control
The port’s flow control setting. Possible values are:
Enabled - Flow control is enabled on the port.
Disabled - Flow control is disabled on the port.
STP State
The operating status of the port. Possible values are Forwarding,
Blocking, Listening, and Learning.
HOL Limit
The utilization threshold of a port’s egress queue which initiates
the Head of Line Blocking prevention mechanism. The number for
this value represents cells. A cell is 64 bytes. The range is 1 to
61,440 cells. The default is 7,168.
If you select Statistics, the Statistics page in Figure 207 is
displayed.

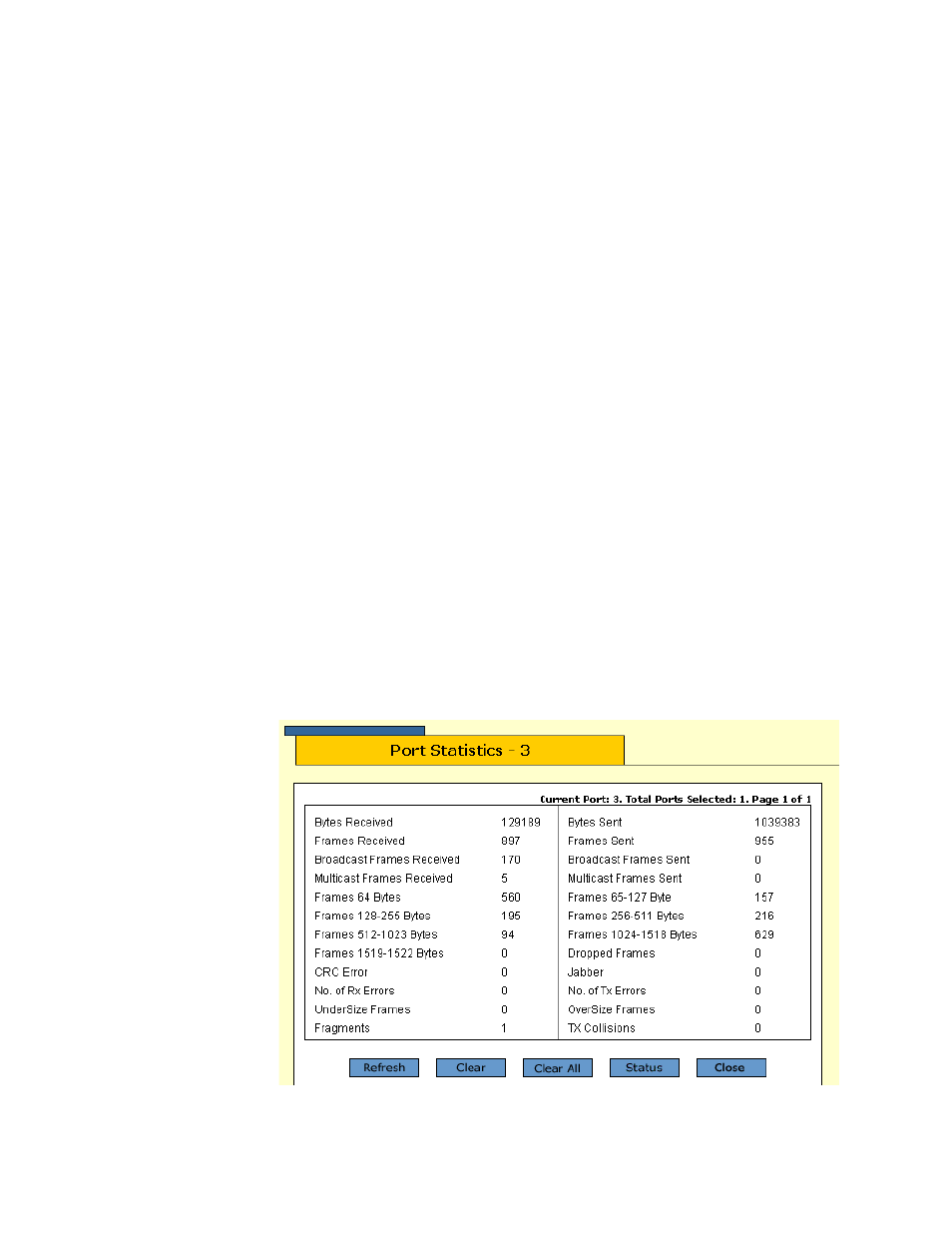

Figure 207 Port Statistics Page
