AT-S62 User’s Guide
Section VIII: Web Browser Management 769
Displaying VLANs
To display the current VLANs on a switch, perform the following
procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. From the Monitoring menu, select Layer 2.
The Layer 2 page is displayed with the MAC Address tab selected
by default.
3. Select the VLAN tab.
The VLAN tab is shown in Figure 277. The information in this tab is
for viewing purposes only.

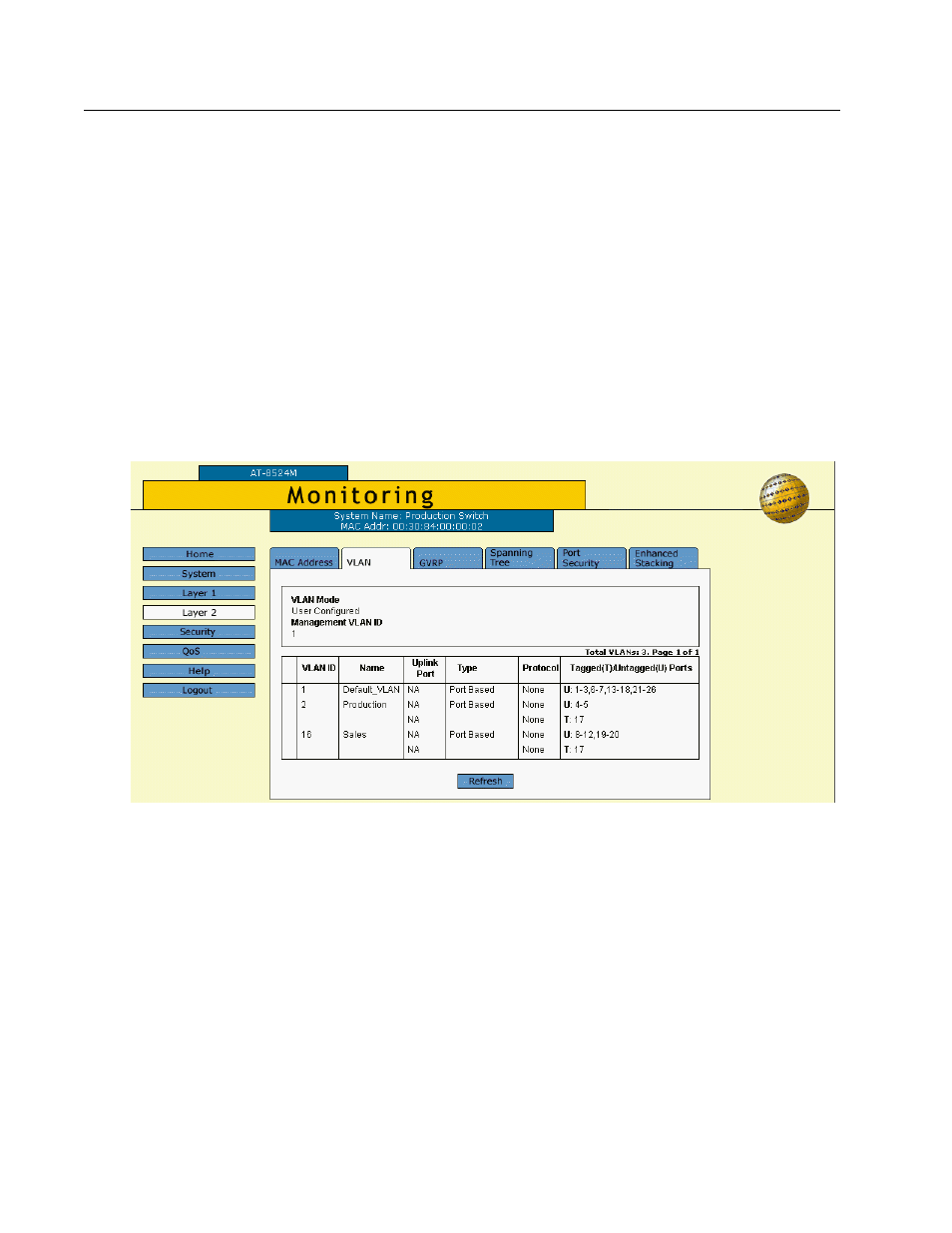

Figure 277 VLAN Tab (Monitoring)
The columns in the window are defined below.
VLAN ID
The VID number assigned to the VLAN.
(Client) Name
The name of the VLAN. If the switch is operating in one of the
multiple VLAN modes, the names of the VLANs start with “Client,”
with the exception of the VLAN containing the uplink port, which
starts with “Uplink.”
