Chapter 12: File Downloads and Uploads
Section II: Advanced Operations 180

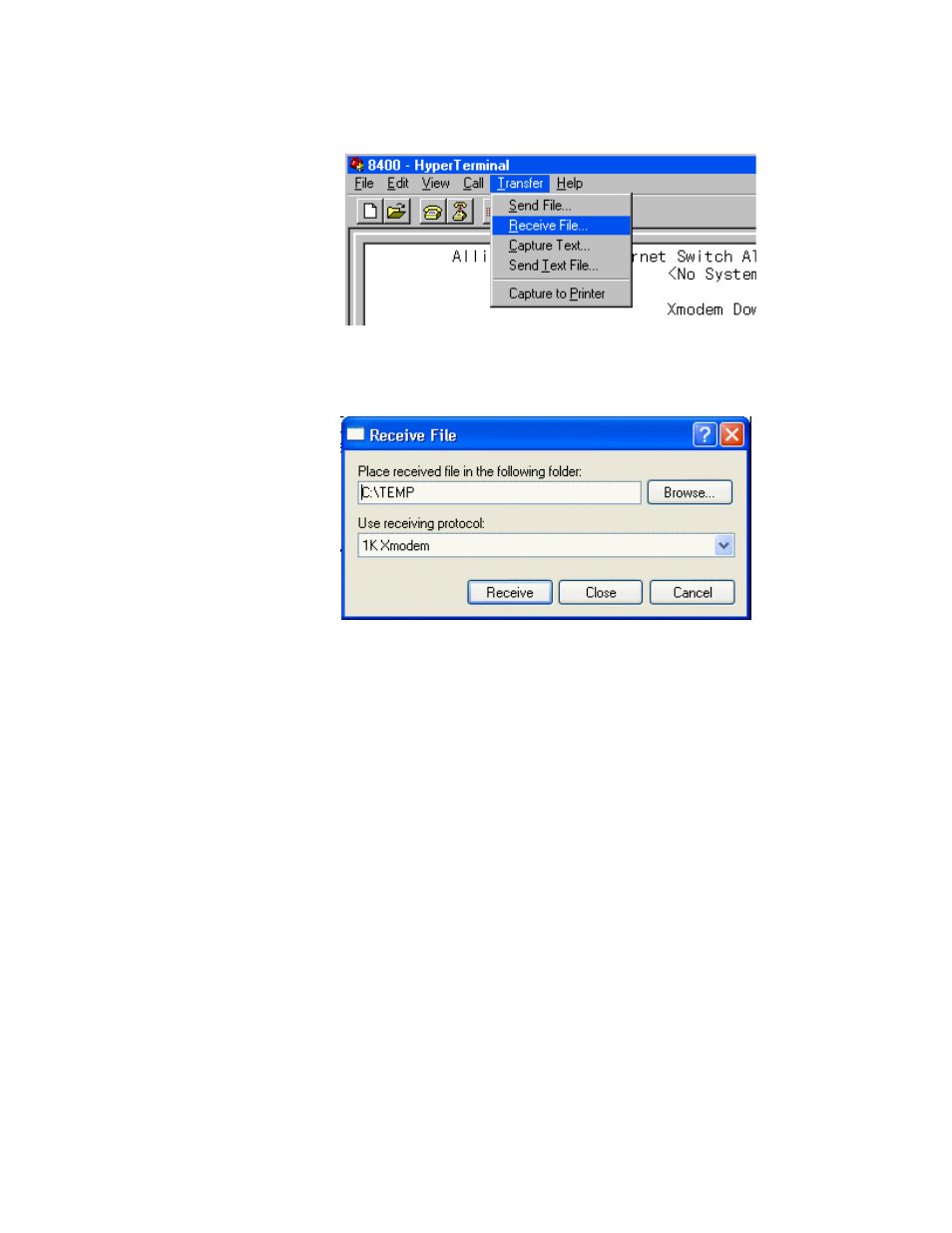

11. From the HyperTerminal main window, select the Transfer menu.
Then select Receive File from the pull-down menu, as shown in
Figure 51.
Figure 51 Local Management Window
The Receive File window is shown in Figure 52.
Figure 52 Receive File Window
12. Click the Browse button and specify the location on your computer
where you want the system file stored.
13. Click on the Protocol field and select as the transfer protocol either
Xmodem or, for a faster download, 1K XModem.
14. Click Receive.
The switch uploads the file from the switch to your computer.
Uploading a
System File
from a Telnet
Management
Session
To upload a system file from the switch using a Telnet management
session and TFTP, perform the following procedure:
1. Establish a Telnet management session on the switch containing the
system file you want to upload to the TFTP server.
2. From the Main Menu, type 5 to select System Administration.
The System Administration menu is shown in Figure 7 on page 59.
3. From the System Administration menu, type 9 to select System
Utilities.
