Chapter 45: STP, RSTP, and MSTP
Section VIII: Web Browser Management 760
Displaying Spanning Tree Settings
To display the parameter settings for the active spanning tree, perform
the following procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. From the Monitoring menu, select Layer 2.
3. Select the Spanning Tree tab.
The Spanning Tree tab is shown in Figure 274.

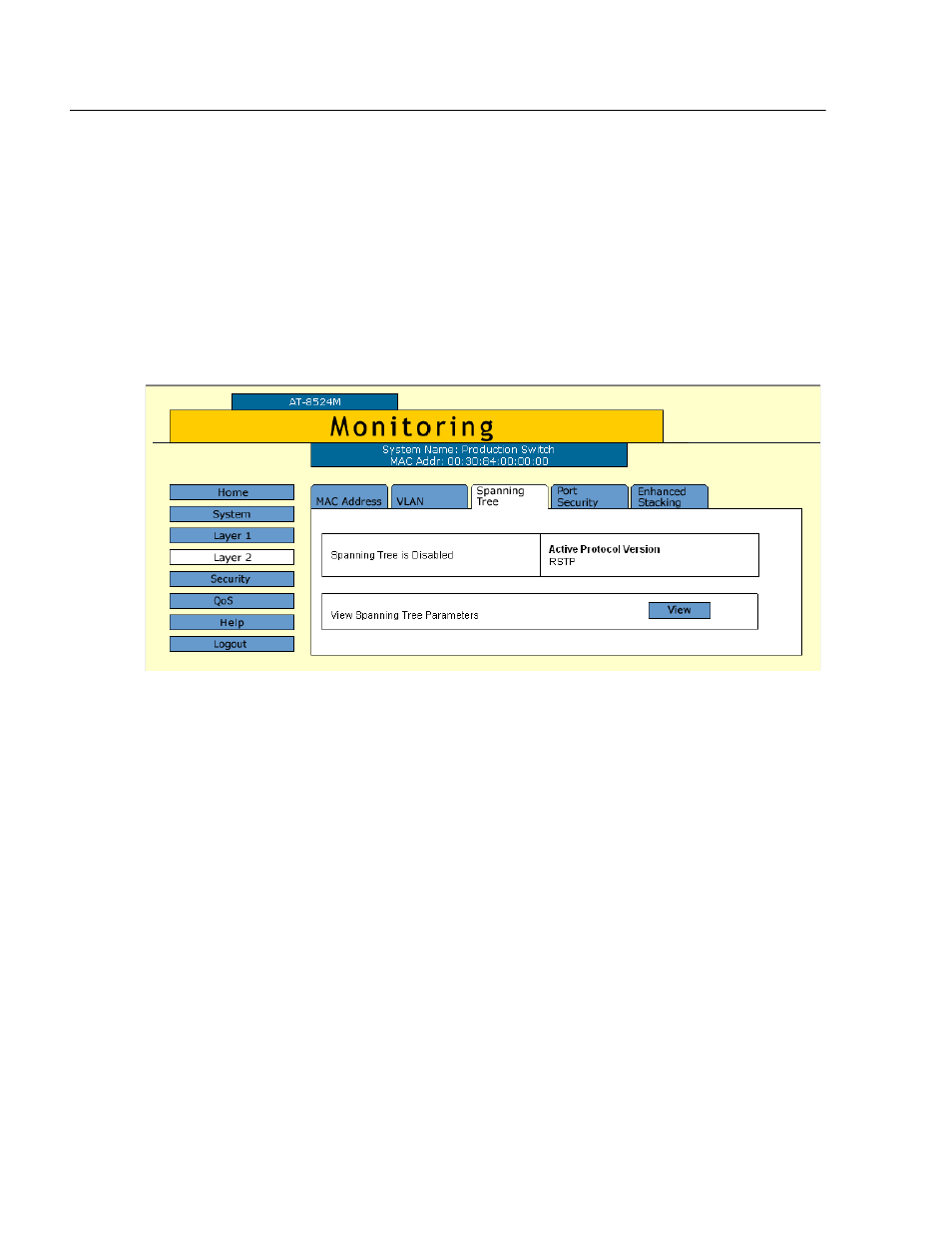

Figure 274 Spanning Tree Tab (Monitoring)
This tab displays information on whether spanning tree is enable
or disabled and which protocol version is active.
4. Click View.
5. To view port settings, click a port in the graphical image of the switch
and click Status or Settings.
For explanations of the spanning tree parameters, refer to earlier
sections in this chapter.
