AT-S62 User’s Guide
Section VIII: Web Browser Management 795
Displaying the Port-based Access Control Settings
To display the port-based access control settings, do the following:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. From the Monitoring menu, select the Security option.
The 802.1x Port Access tab opens with the 802.1x Port Access tab
selected by default, as shown in Figure 287.

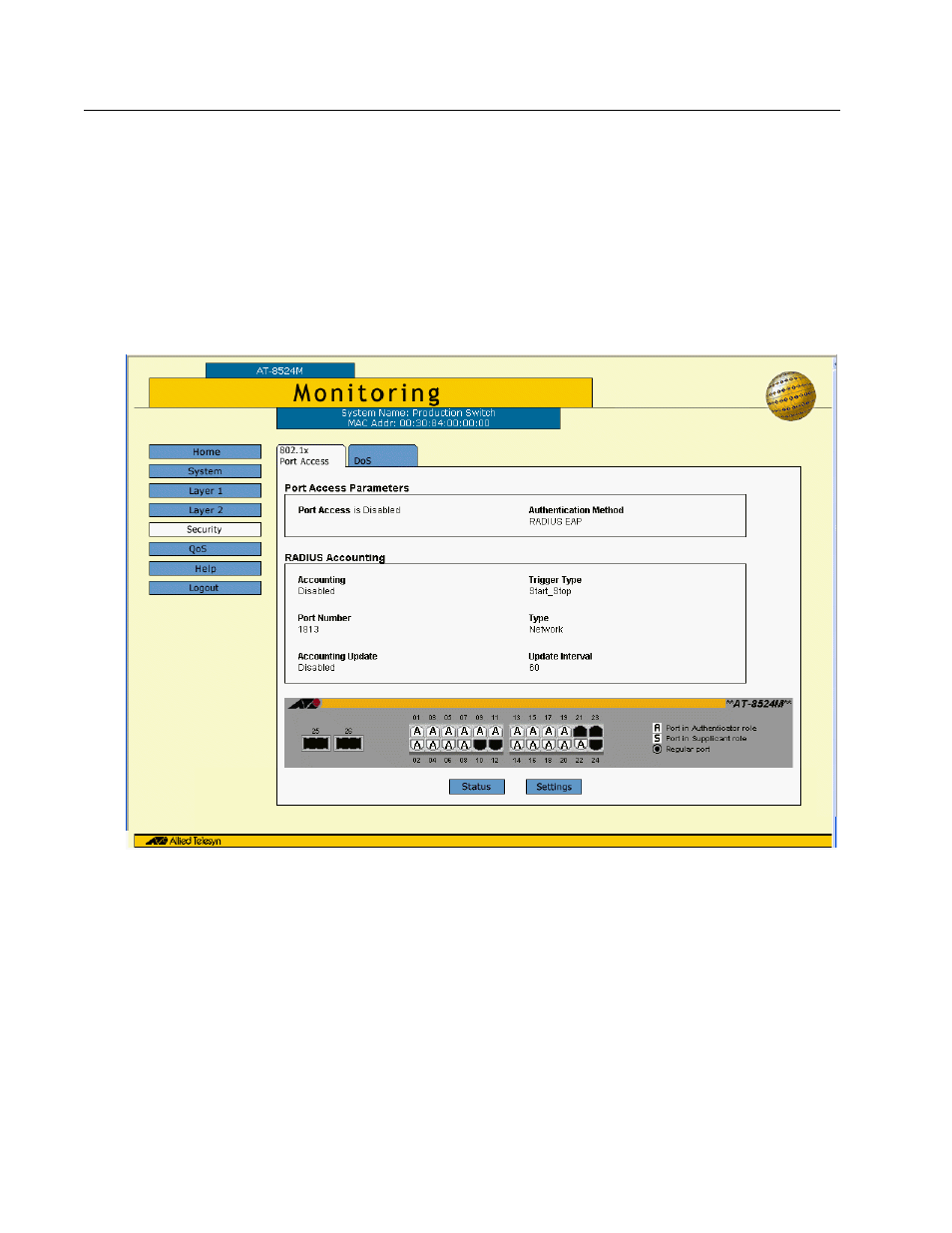

Figure 287 802.1x Port Access Tab (Monitoring)
3. To see the status of a port, click the port and click Status. You can
select more than one port at a time.
