Chapter 35: Port Parameters
Section VIII: Web Browser Management 616
Displaying Port Status and Statistics
The procedure in this section displays the operating status of the ports
on a switch and port statistics. You can view a port’s operating speed,
duplex mode, MDI/MDI-X configuration, and more. You can also view
the operating status of any GBIC modules installed in an AT-8550GB.
To display the status or statistics of a switch port, perform the following
procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590.
2. From the Monitoring menu, select the Layer 1 option.
The Layer 1 page is displayed with the Port Settings tab selected
by default, as shown in Figure 205.

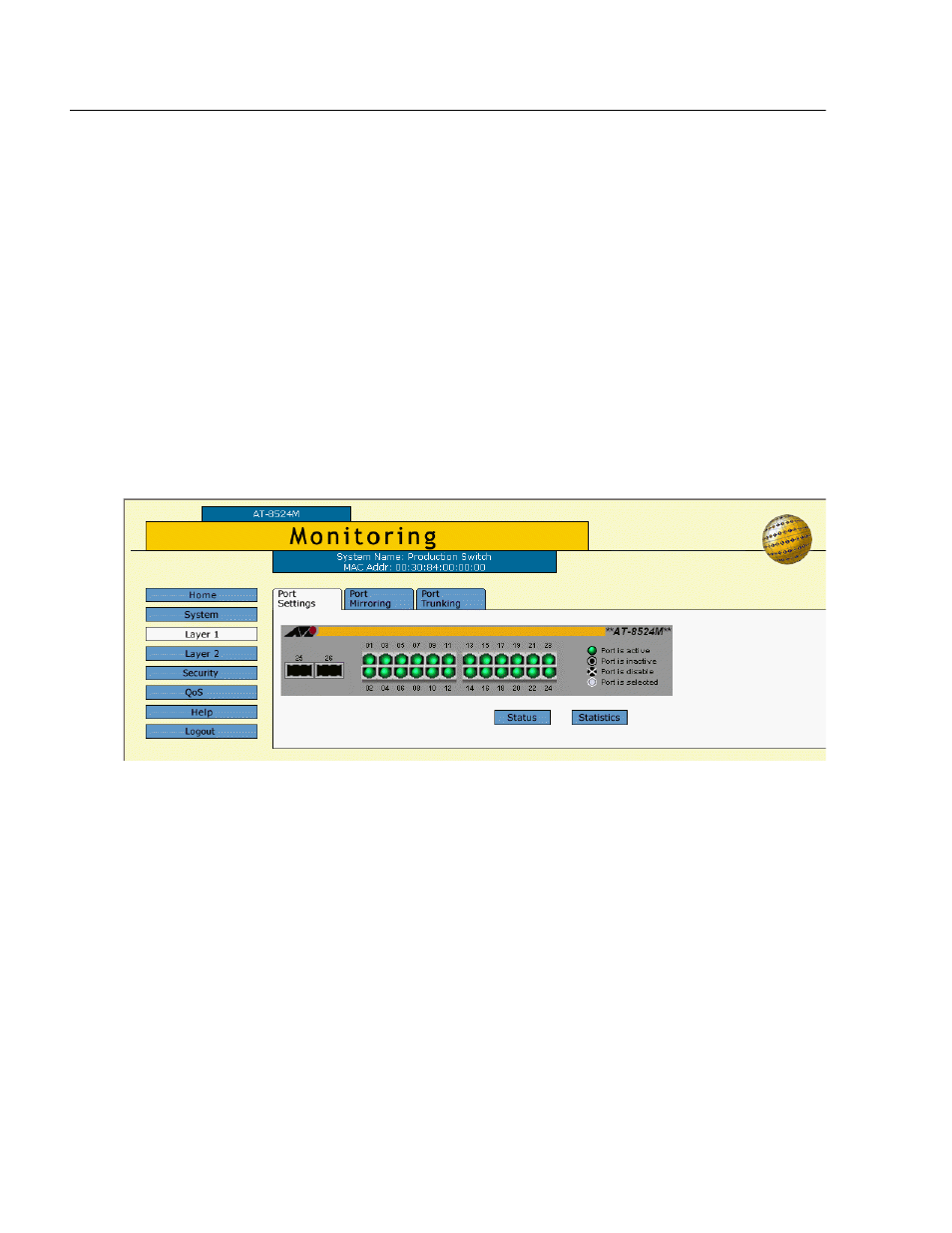

Figure 205 Port Settings Tab (Monitoring)
The Port Setting tab displays a graphical image of the front of the
switch. Ports with valid links to end nodes have a green light.
3. Click a port. You can select more than one port at a time when you
want to display port status. However, you can select only one port
when displaying statistics. A selected port turns white. (To deselect a
port, click it again.)
4. Click Status to display the port’s operating status or Statistics to
display port statistics.
