Allied Telesis AT-S62 - Manual (Page 658)

Chapter 41: Quality of Service
Section VIII: Web Browser Management 658
Configuring CoS
This procedure explains how to change the egress queue used to handle
untagged ingress packets on a port. This procedure also overrides the
priority levels in tagged ingress packets.
To configure CoS, perform the following procedure:
1. From the Home Page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 194 on page 586.
2. From the Configuration menu, select the QoS option.
The QoS page is displayed with the CoS tab selected by default, as
shown in Figure 221.

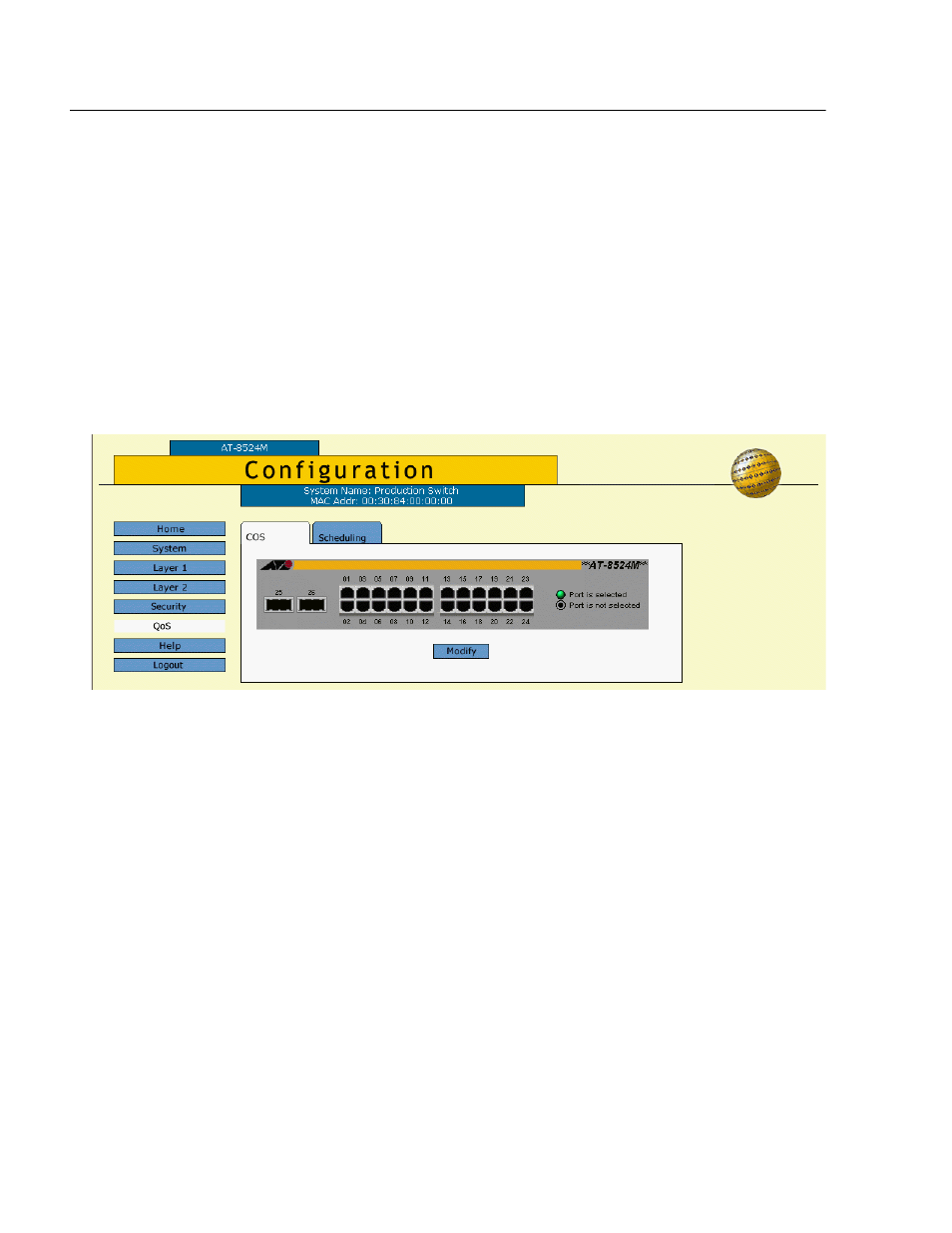

Figure 221 CoS Tab
3. Click the port where you want to configure CoS. You can select more
than one port at a time. A selected port turns white. (To deselect a
port, click it again.)
4. Click Modify.
