Displaying QoS Scheduling
To display QoS scheduling, do the following:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590
2. From the Monitoring menu, select the QoS option.
The QoS page is displayed with the CoS tab selected by default, as
shown in Figure 224 on page 664.
3. Select the Scheduling tab.
The Scheduling tab is shown in Figure 226.

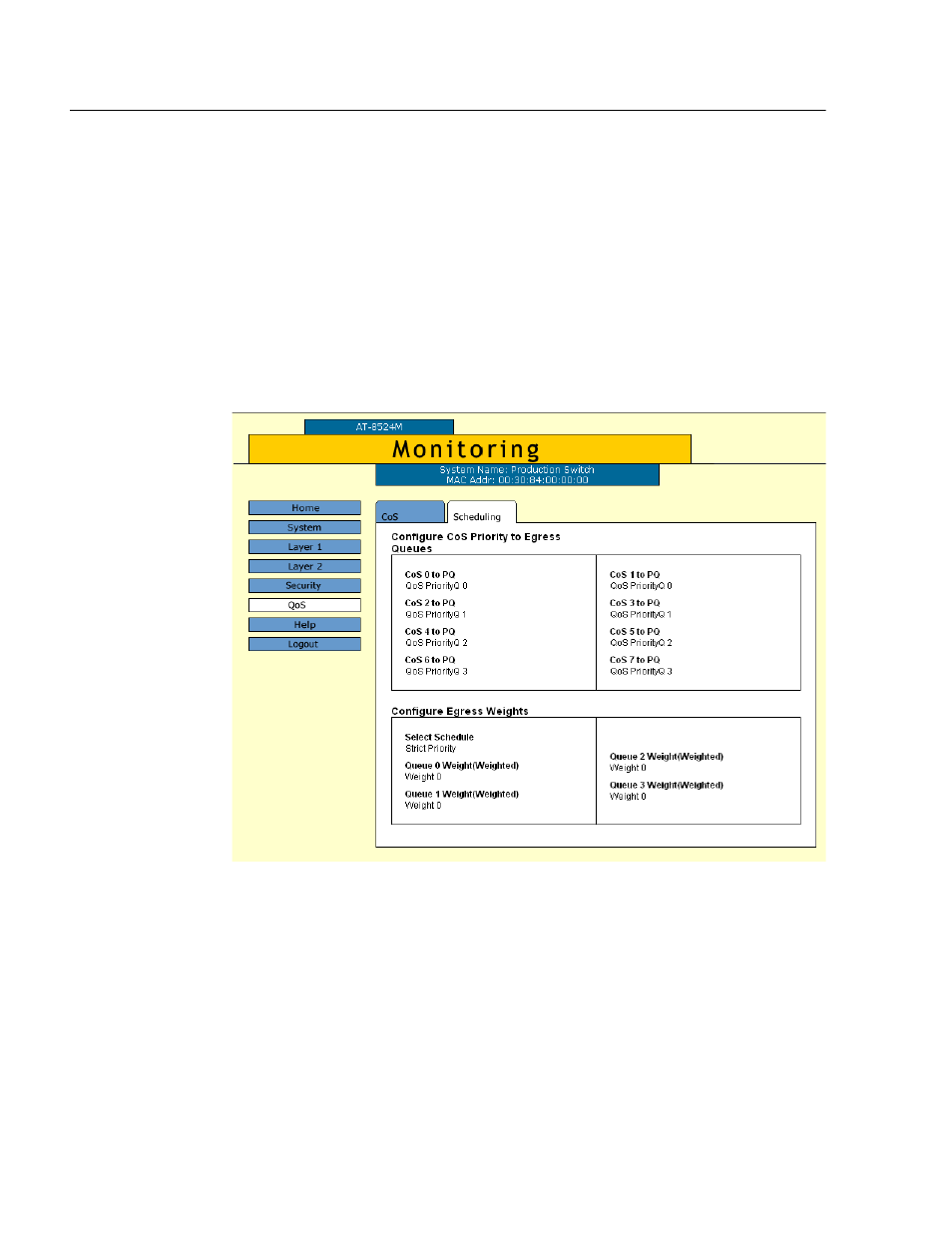

Figure 226 QoS Scheduling Tab (Monitoring)
The upper section displays the CoS priority to egress queue
assignments. The lower half displays the egress weight settings.
For an explanation of the information in this window, refer to
Mapping CoS Priorities to Egress Queues on page 661 and
Configuring Egress Scheduling on page 663.
