Chapter 44: SNMPv3 Protocol
Section VIII: Web Browser Management 694
Modifying a
View Table
Entry
To modify an entry in the SNMPv3 View Table, perform the following
procedure.
1. From the Home Page, select Configuration.
The Configuration System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 586.
2. Select the SNMP Tab.
The SNMP Tab is shown in Figure 198 on page 599.
3. In the SNMPv3 section of the page, click the circle next to Configure
View Table. Then click Configure at the bottom of the page.
The SNMPv3 View Table Page is shown in Figure 236 on page 690.
4. To modify an SNMPv3 View Table entry, click the circle next to the
SNMPv3 View Table entry that you want to change. Then click
Modify.
The Modify SNMPv3 View Page is shown in Figure 238.

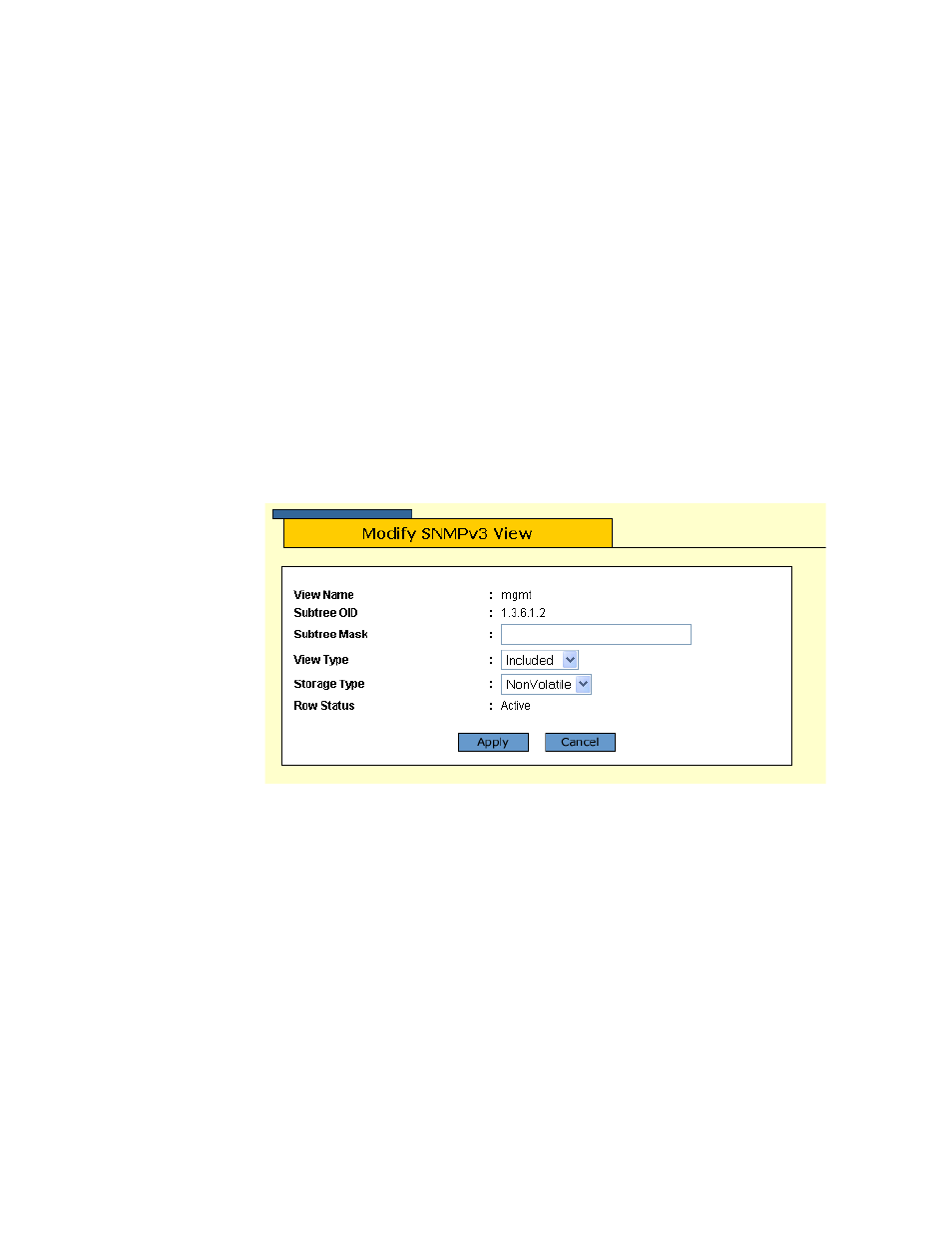

Figure 238 Modify SNMPv3 View Page
5. In the Subtree Mask field, enter a subtree mask in hexidecimal format.
This is an optional parameter that is used to further refine the
value in the View Subtree parameter. This parameter is in binary
format.
The View Subtree parameter defines a MIB View and the Subtree
Mask further restricts a user’s view, for example, to a specific row
of the MIB tree. The value of the Subnet Mask parameter is
dependent on the subtree you select. See RFC 2575 for detailed
information about defining a subnet mask.
