Allied Telesis AT-S62 - Manual (Page 786)

Chapter 49: 802.1x Port-based Access Control
Section VIII: Web Browser Management 786
Enabling and Disabling Port-based Access Control
This procedure explains how to enable and disable port-based access
control on the switch. If you have not assigned port roles and configured
the parameter settings, you should skip this procedure and go first to
Setting Port Roles on page 788.
To enable or disable port-based access control, perform the following
procedure:
1. From the Home Page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 194 on page 586.
2. Select Security.
The Security page is displayed with the 802.1x Port Access tab
selected by default, as shown in Figure 283.

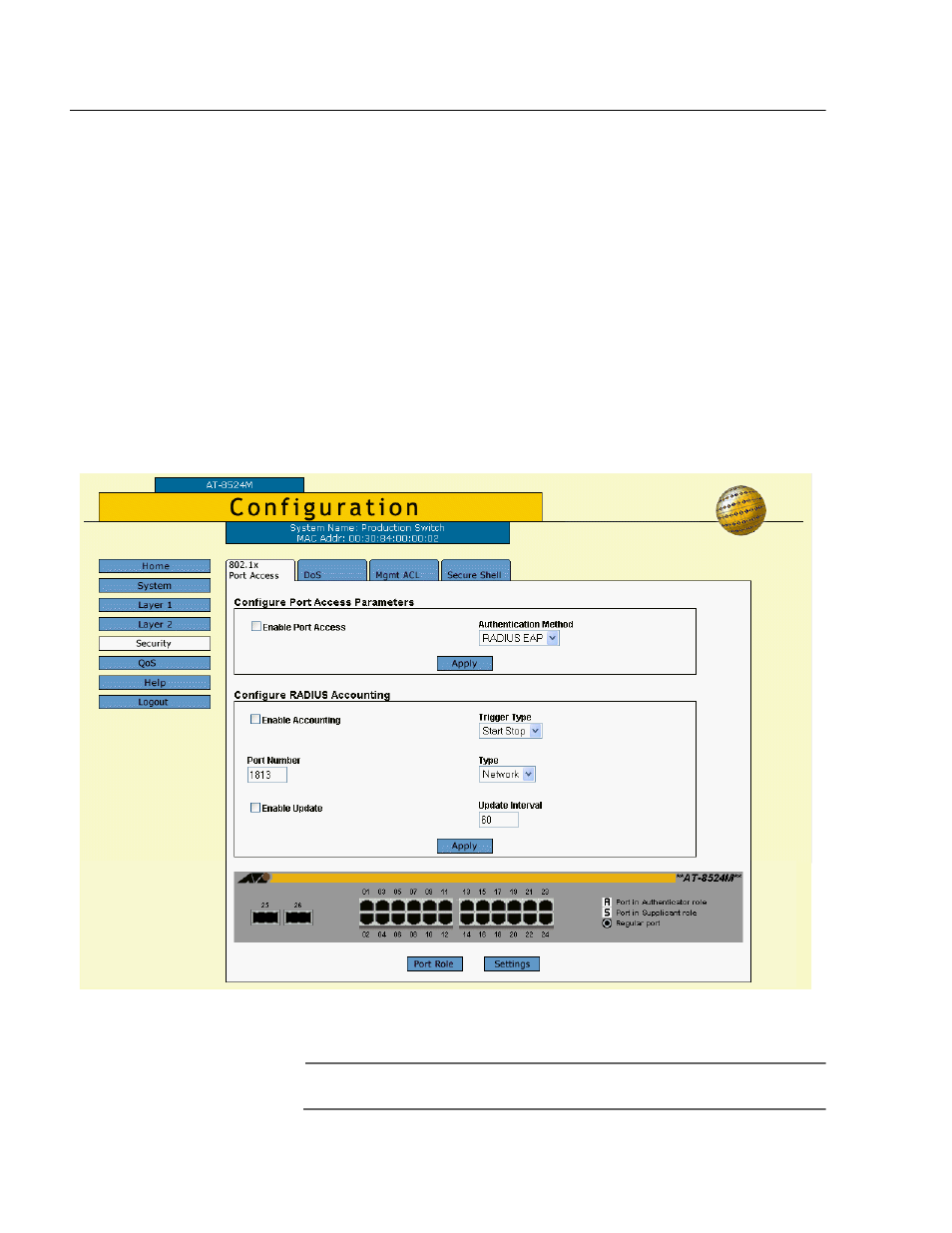

Figure 283 802.1x Port Access Tab (Configuration)
Note
The Authentication Method field cannot be changed.
