Chapter 46: Virtual LANs
Section VIII: Web Browser Management 762
Creating a New Port-Based or Tagged VLAN
To create a new port-based or tagged VLAN, perform the procedure
below:
1. From the Home Page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 194 on page 586.
2. From the Configuration menu, select Layer 2.
The Layer 2 page is displayed with the MAC Address tab selected
by default, as shown in Figure 208 on page 622.
3. Select the VLAN tab.
The VLAN tab is shown in Figure 275.

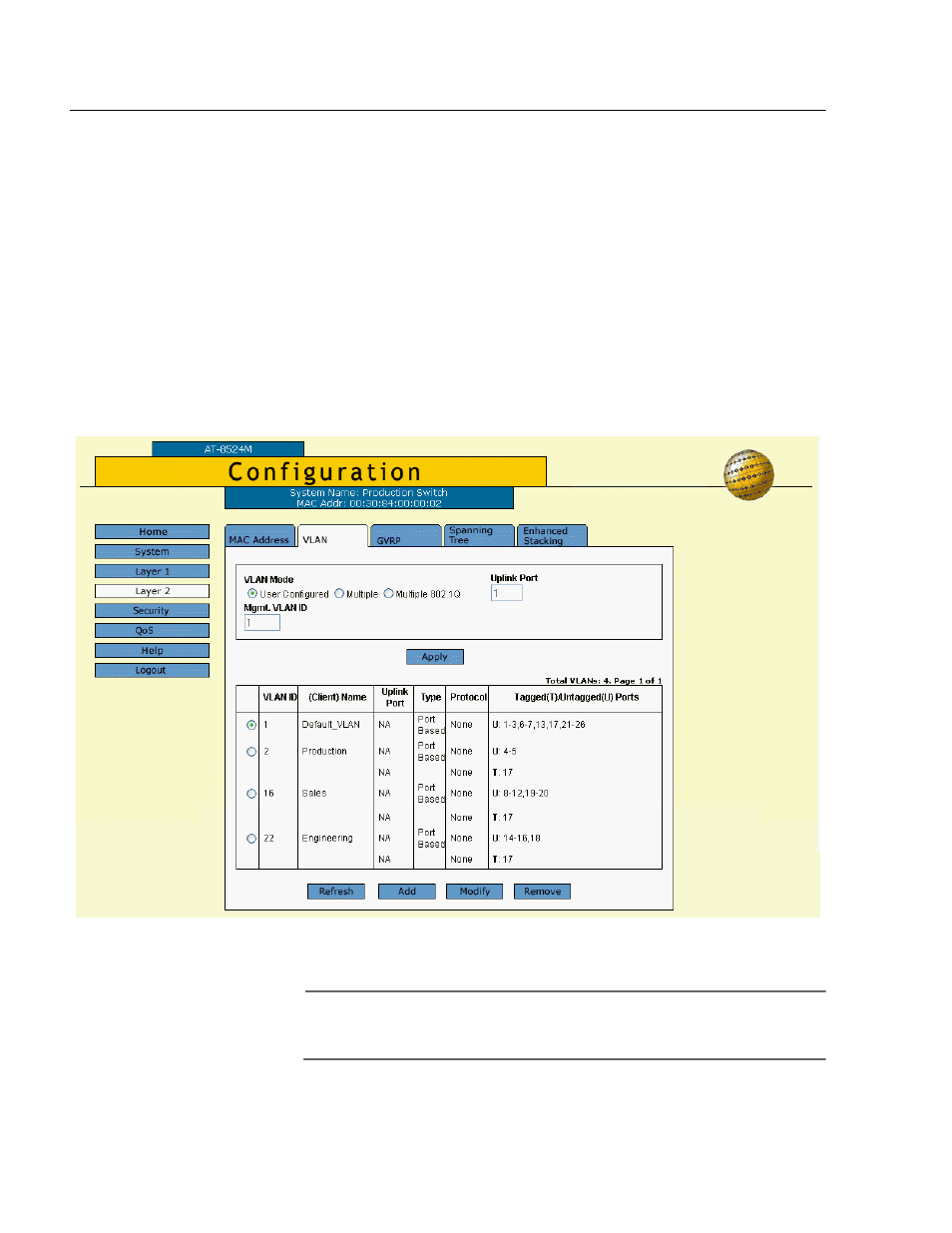

Figure 275 VLAN Tab (Configuration)
Note
The Modify and Remove buttons are not included in the tab if the
only VLAN on the switch is the Default_VLAN.
