AT-S62 User’s Guide
Section VIII: Web Browser Management 635
Displaying the Port Trunks
To display the port trunks, do the following:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 195 on page 590
2. From the Monitoring menu, select the Layer 1 option.
The Layer 1 page is displayed with the Port Settings tab selected
by default, as shown in Figure 205 on page 616.
3. Select the Port Trunking tab.
The Port Trunking tab is shown in Figure 213.

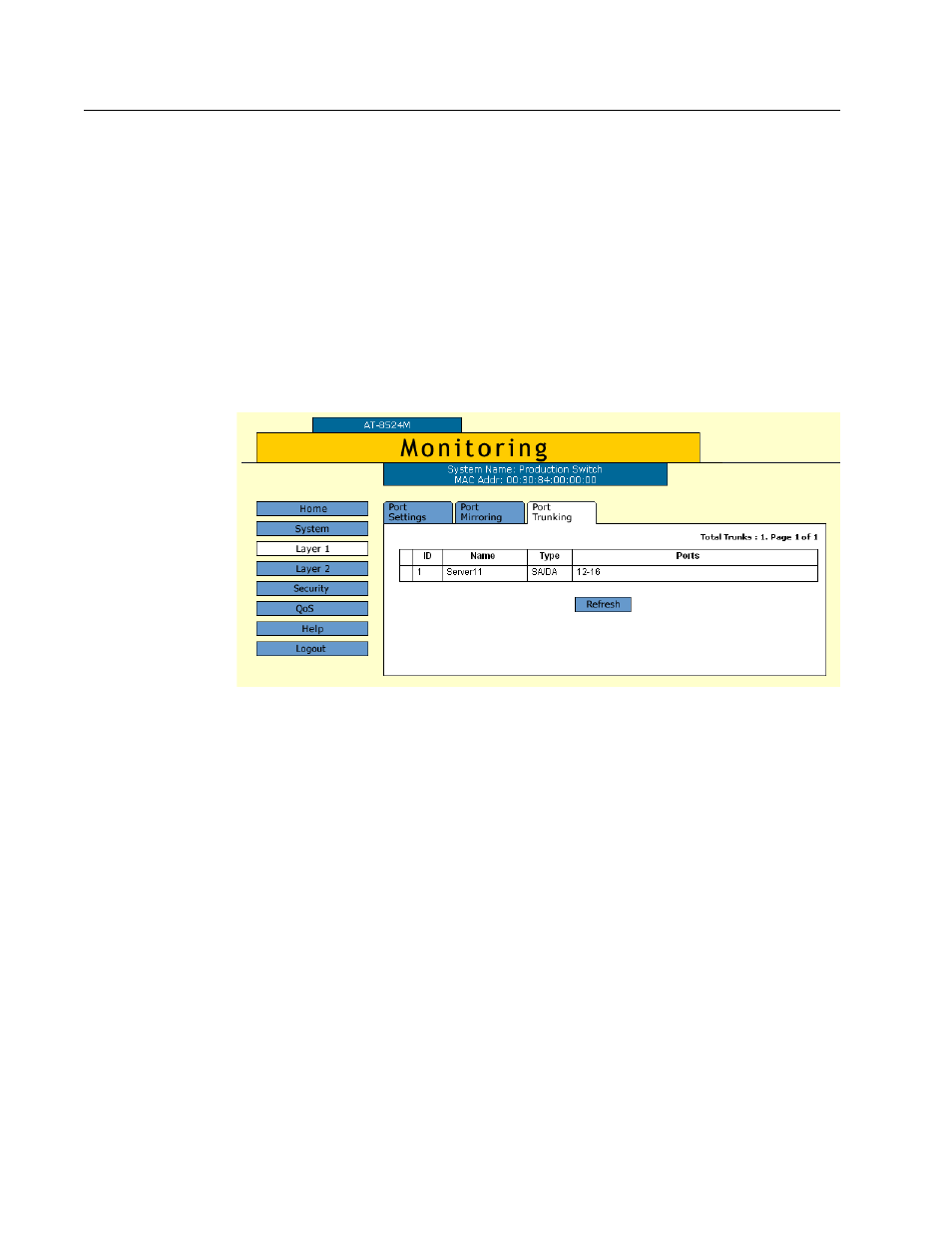

Figure 213 Port Trunking Tab (Monitoring)
The tab displays the following information:
ID
The ID number of the trunk.
Name
The name of the trunk.
Type
The load distribution method:
❑ SA - Source MAC address (Layer 2)
❑ DA - Destination MAC address (Layer 2)
❑ SA/DA - Source/destination MAC address (Layer 2)
❑ SI - Source IP address (Layer 3)
