Chapter 35: Port Parameters
Section VIII: Web Browser Management 610
Configuring Port Parameters
To configure the parameter settings of a port on the switch, perform the
following procedure:
1. From the Home page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 194 on page 586.
2. From the Configuration menu, select the Layer 1 option.
3. Select the Port Settings tab.
The Port Settings tab is shown in Figure 203.

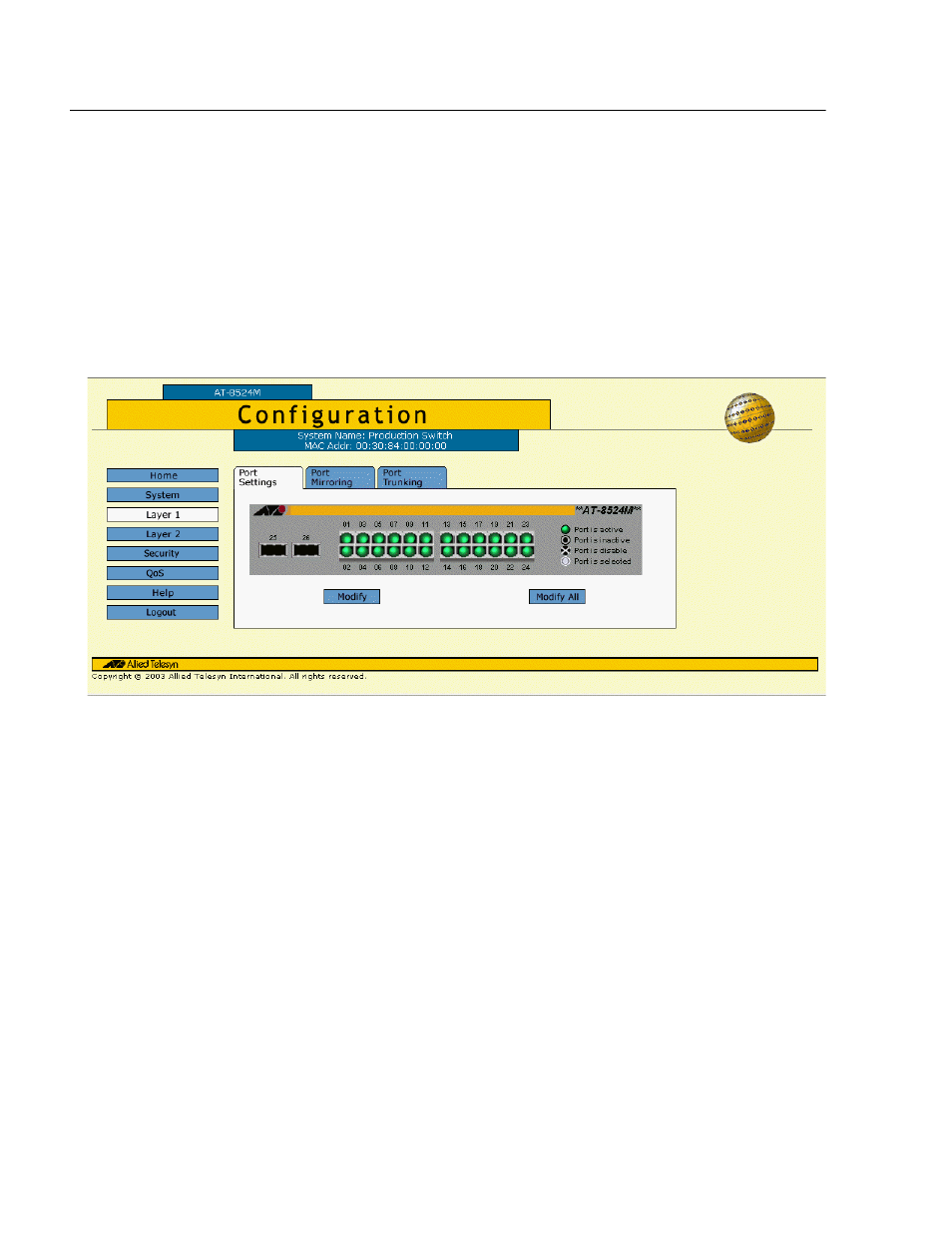

Figure 203 Port Settings Tab (Configuration)
4. Click the port in the graphical switch image you want to configure.
The selected port turns white. You can select more than one port at a
time to configure. (To deselect a port, click it again.)
5. Click Modify. To configure all of the base ports (not including any
expansion ports), click Modify All.
