AT-S62 User’s Guide
Section VIII: Web Browser Management 661
Mapping CoS Priorities to Egress Queues
This procedure explains how to change the default mappings of CoS
priorities to egress priority queues, shown in Table 8, Default Mappings
of IEEE 802.1p Priority Levels to Priority Queues on page 193. This is set
at the switch level.
To change the mappings, perform the following procedure.
1. From the Home Page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 194 on page 586.
2. From the Configuration menu, select the QoS option.
The QoS page is displayed with the CoS tab selected by default, as
shown in Figure 221 on page 658.
3. Select the Scheduling tab.
The Scheduling tab is shown in Figure 223.

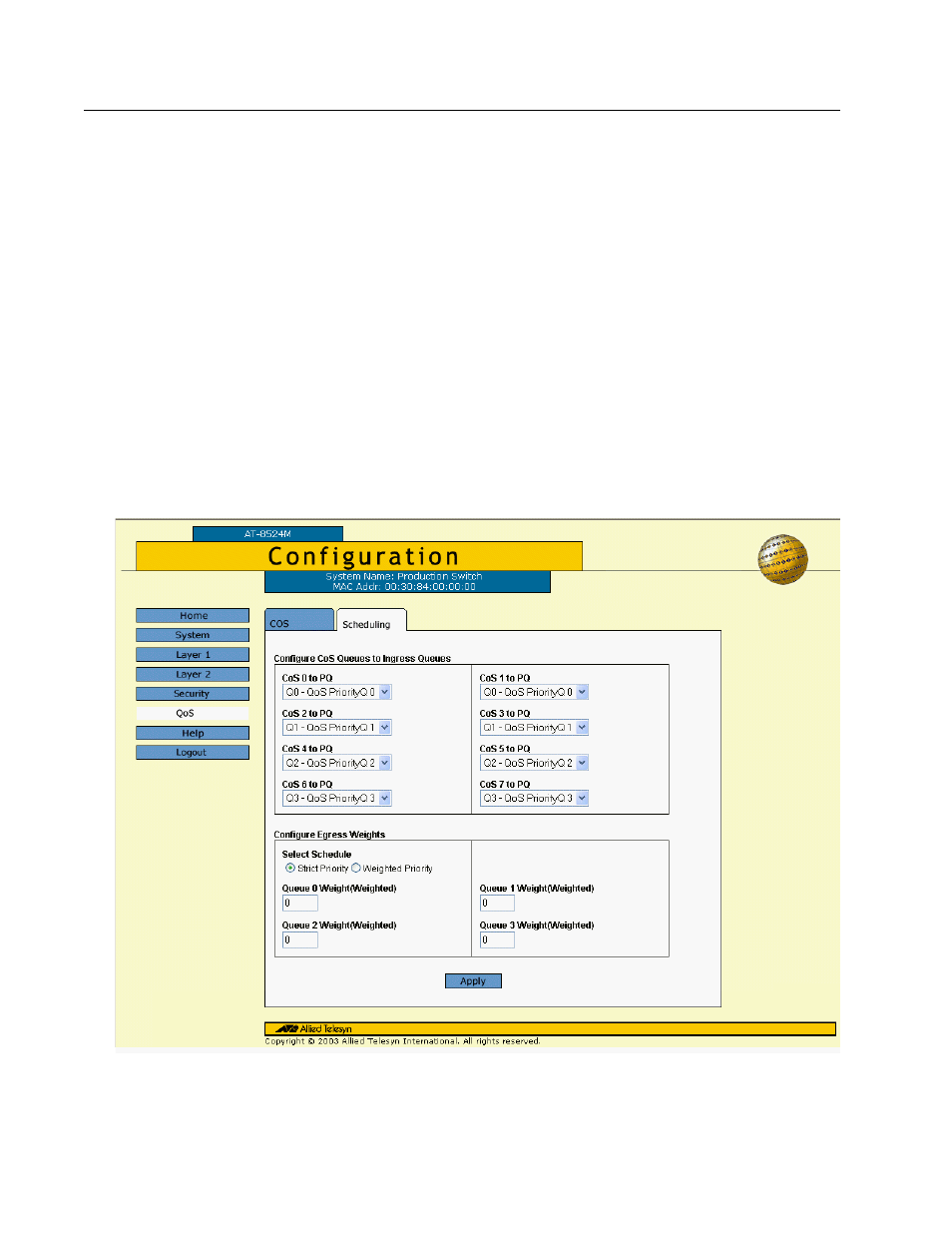

Figure 223 QoS Scheduling Tab (Configuration)
