AT-S62 User’s Guide
Section VIII: Web Browser Management 793
Configuring Supplicant Port Parameters
To configure supplicant port parameters, perform the following
procedure:
1. From the 802.1x Port Access tab shown in Figure 283 on page 786,
click the supplicant port that you want to configure. You can select
more that one supplicant port at a time. The selected port turns white.
Note
A port must already be designated as a supplicant before you can
configure its settings. For instructions on how to set the role of a
port, refer to Setting Port Roles on page 788.
2. Click Settings.
The Supplicant Parameters page is shown in Figure 285.

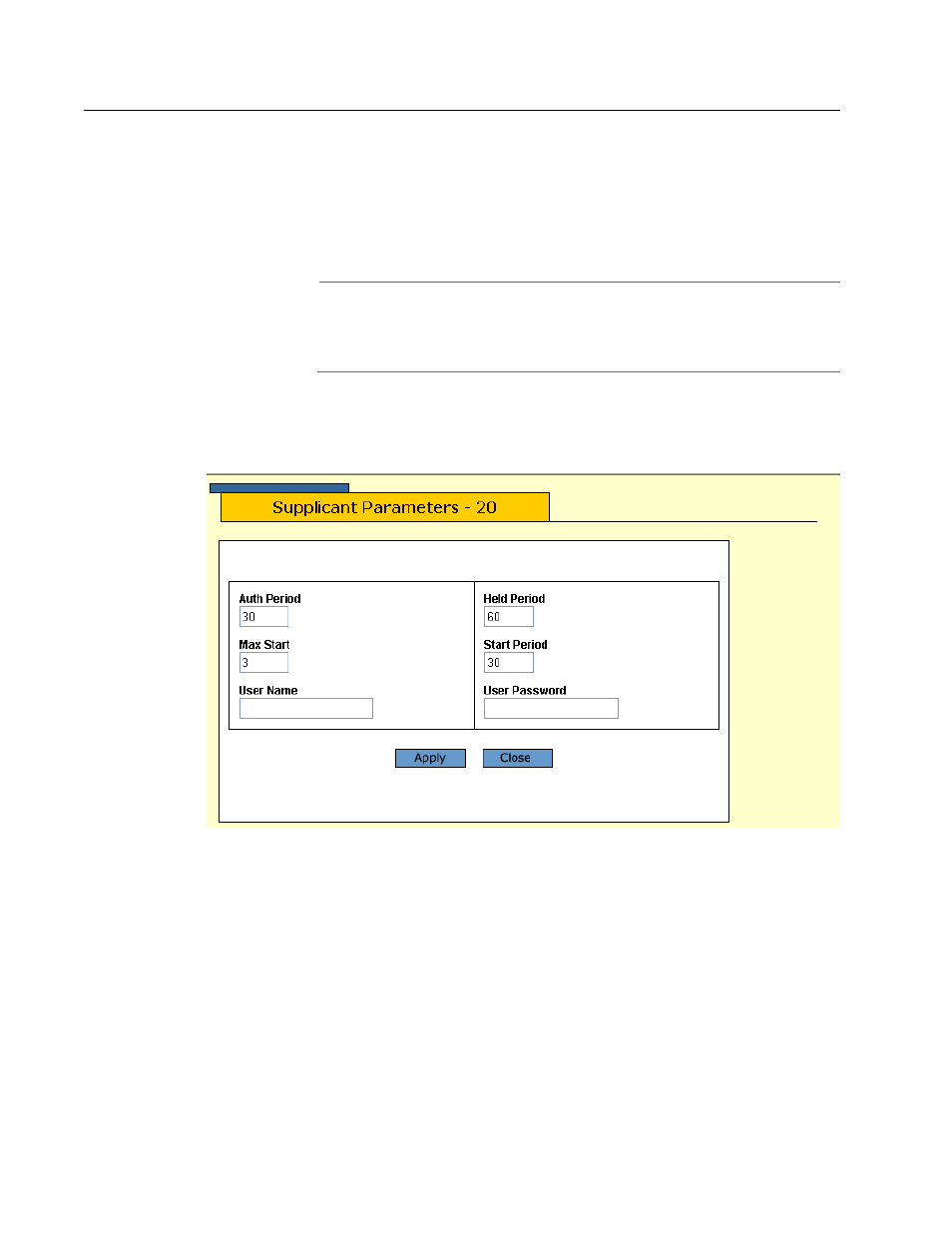

Figure 286 Supplicant Parameters Page
3. Adjust the parameters as needed. The parameters are described
below:
Auth Period
Specifies the period of time in seconds that the supplicant will
wait for a reply from the authenticator after sending an EAP-
Response frame. The range is 1 to 60 seconds. The default is 30
seconds.
