Chapter 36:MAC Address Table
Section VIII: Web Browser Management 622
Displaying the MAC Address Table
To view the MAC address table, perform the following procedure:
1. From the Home page, select either Configuration or Monitoring.
2. Select Layer 2.
The Layer 2 page is displayed with the MAC Address tab shown by
default.
Figure 208 shows how this tab appears when you display it
through the Configuration page. If displayed through the
Monitoring page, the Add button is not included. This button is
used to add static and multicast address to the switch. For
instructions on how to add static and multicast MAC addresses,
refer to the next procedure.

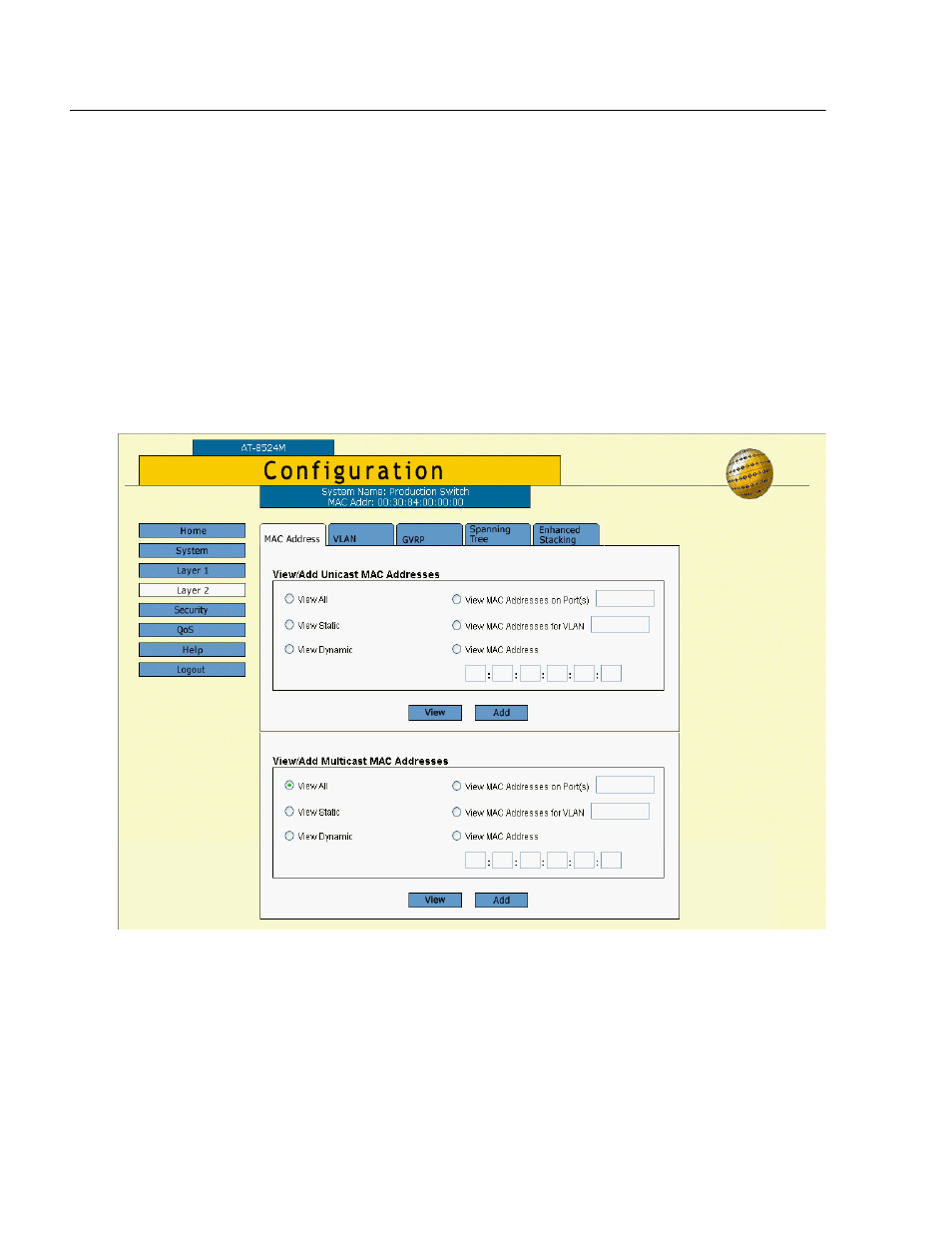

Figure 208 MAC Address Tab (Configuration)
The tab contains two parts. The top section displays unicast
addresses while the bottom part display multicast addresses. The
options function the same in both sections, and are described
below. You can select only one option at a time.
