Hardware Installation

2−14

VM 3000 Installation and Operating Manual

TRITON SYSTEMS

Triton routers are connected using an odd−numbered VM 3000 serial port. SI 3000 serial ports cannot be used. Multiple Triton
chassis can be connected to a single VM, but only if all them are connected on the same MIDI bus and connected through
the same single serial port. If more than one Triton MIDI bus is needed, the switchers on that bus must be connected to another
VM.

The serial connector on Triton routers is a 9−pin RS−232 signal level port. Since the VM has RS−422 ports, a RS−422 to
RS−232 converter must be used to ensure reliable communications. Please refer to Figure 2−14.

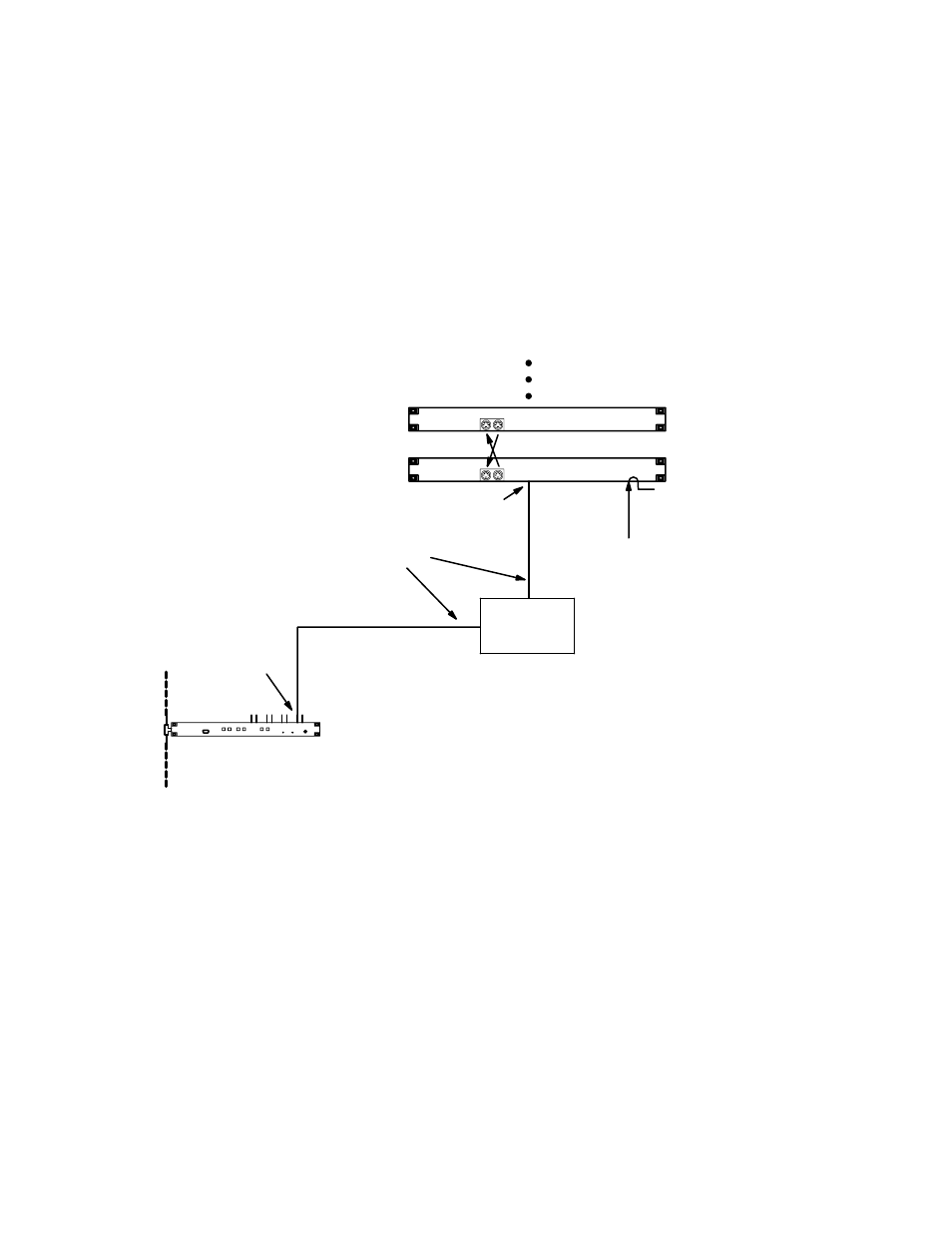

Figure 2−14. Example of connection to Triton distribution switchers.

See Figure 2−15 for

cable details

Triton protocol

A Triton−to−Jupiter Serial Control Kit
is available from Grass Valley. See
text for details.

RS−422/232

converter

RS−232 port

MIDI bus loop

Triton Video

Triton L + R Audio

20 units maximum

Router address “0”

Router address “2”

House sync required

for vertical interval

switching (analog

units). See Triton

manual for details.

Odd serial port

VM 3000
System
Controller

A Triton−to−Jupiter Serial Control Kit, available from Grass Valley, includes a B&B Electronics 422COR RS−232/RS−422
Converter, a B&B Universal Power Supply, a 25 ft. (7.6 m) VM/CM to Converter Cable, and a 5 ft. (7.6 m) Converter to Triton
Cable. The part number of this kit is 44-050456-001.

Multiple Triton switchers are connected with a MIDI bus loop (as detailed in the Triton manual). In a typical video/audio
switching application, each chassis is set with a unique “Router Address” from 0 to 15 (DIP switches 1−4 on the rear panel).
Note that split switching is possible, but only between chassis; e.g., Audio Left/Right can be split from Video, but Audio Left
cannot be split from Audio Right.

In RGB or YUV applications where all three signals must always switch together, the Router Address should be set to the
same value on each chassis.
