Configurator Status Display
5−171 VM 3000 Installation and Operating Manual
VGA Status Display Table
1
VGA Status Display Table
Board
VM1
Page File Name
VGA01
Video Mode
VC8
2
Password 5−17
Network Description 5−22
Serial Protocol 5−25
Switcher Description 5−31
Switcher Input 5−44
Switcher Output 5−51
Control Panel Sets
Level set 5−55
Input set 5−58
Output set 5−76
Override set 5−98
Sequence set 5−101
Category set 5−103
MPK Devices 5−109
Machines 5−140
Protocol Dependent 5−143
Machine Control 5−146
Delegation Groups 5−159
TCS−1 Device Codes 5−166
Party Line 5−167
Status Display Header 5−170
VGA Status Display
Tally 5−172
Path Finding 5−194
Exclusion 5−208
Y Line 5−209

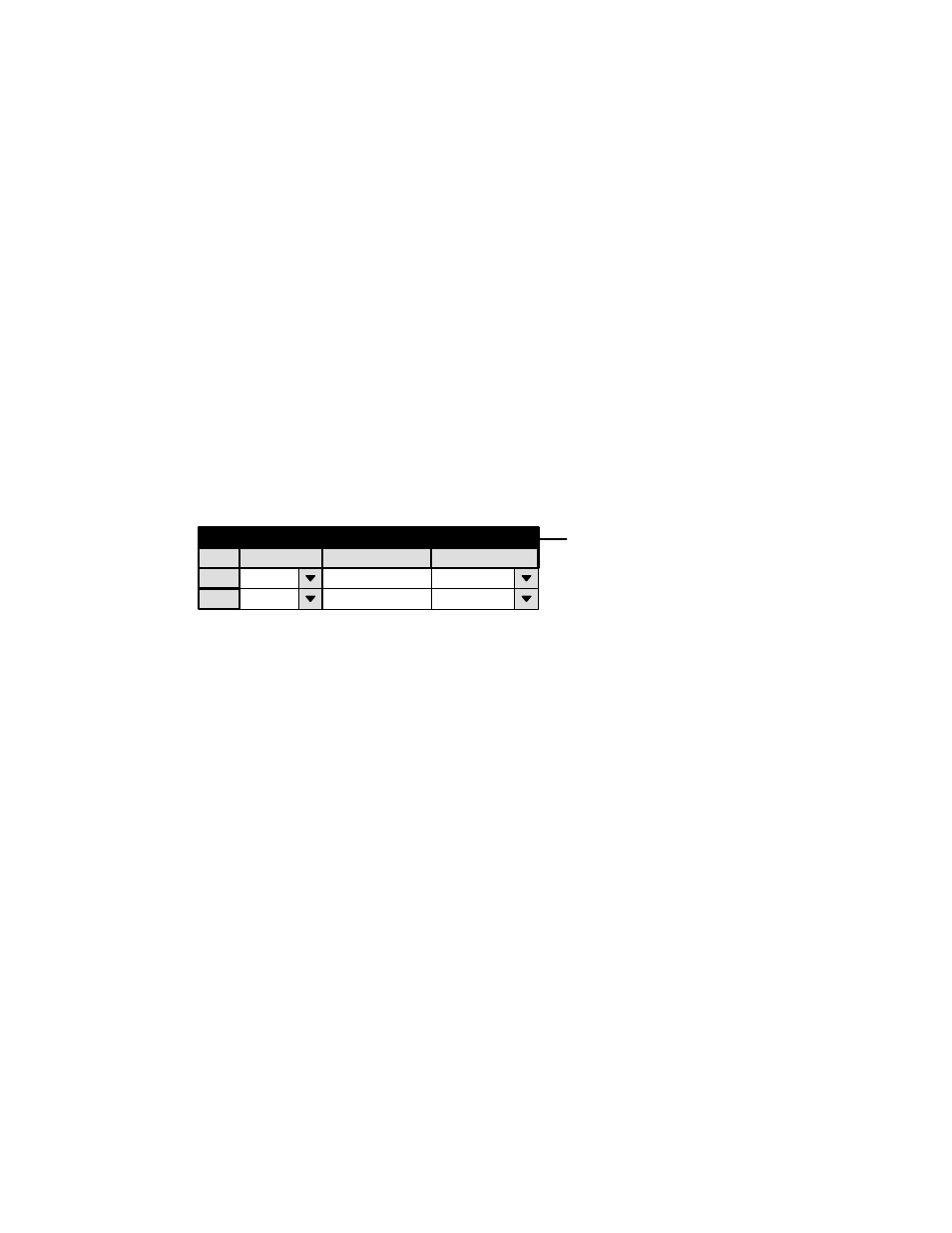

Figure 5−150. VGA Status Display table (example).
This table is used when a VGA status display is installed.
Board is the name of the VM 3000 providing the VGA output. This must be the same as the name already entered on the
Network Devices table.
Page File Name is the source of the name of the file that will be created when the “Tools > Generate VGA Files” command
is run.
Note: The “Generate VGA Files” command is designed for use during initial installation only—it always uses the
original factory default settings when building the Page Description file. If you decide to modify your VGA dis-
play with custom formatting, do not re−run the Generate VGA Files command. If you do, your modifications will
be overwritten.
Video Mode allows selection of color or black and white. When “Color 80” is selected the table will display “VC8;” when
“B/W 80” is selected the display will be “VB8.”
For details concerning VGA hardware installation and software configuration, please refer to Appendix A.
