821

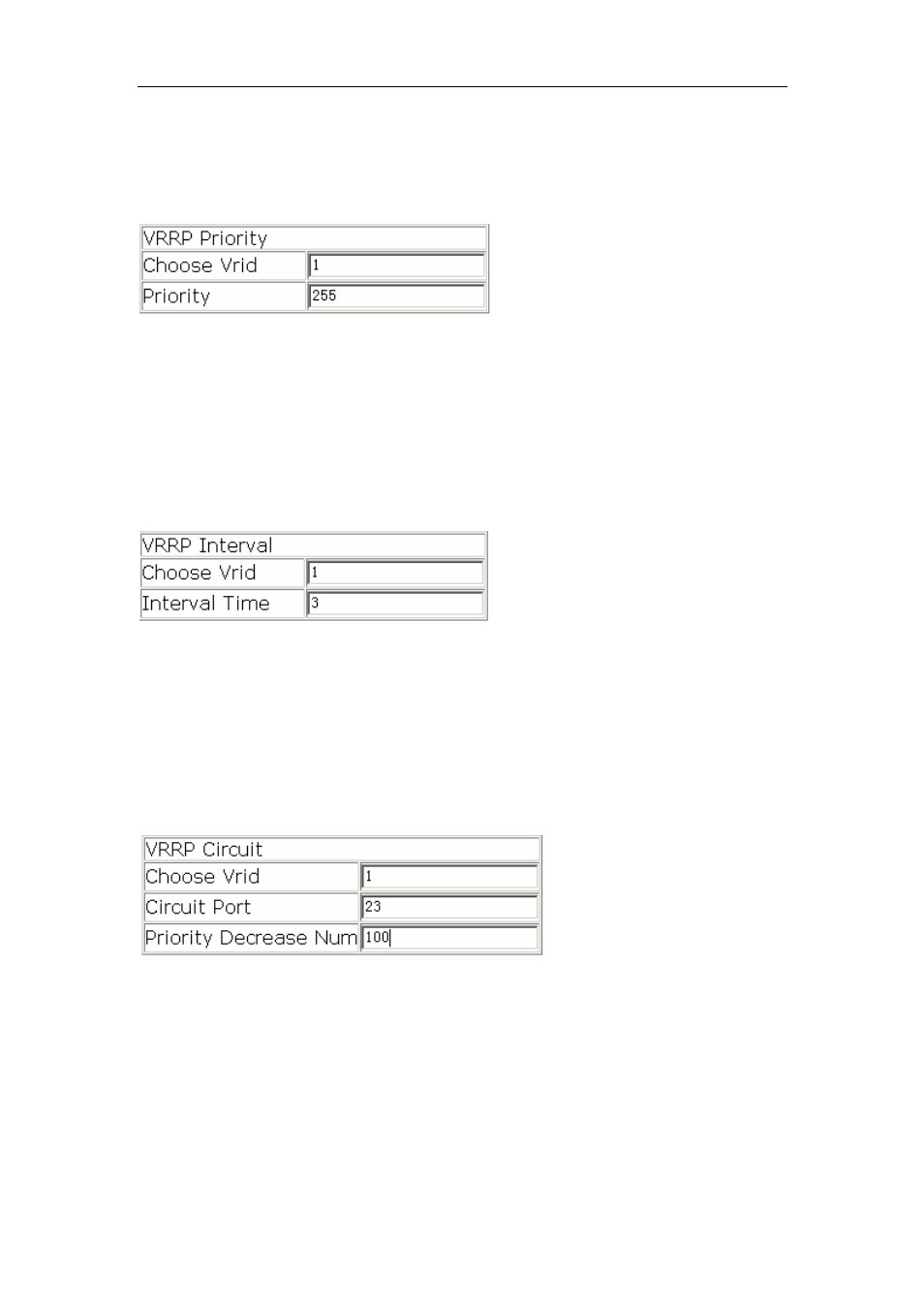

Click “VRRP control” to configure VRRP and enter "VRRP Priority".
Example: Enter the created Virtual Router number "1" and priority. Click Enable to set the
priority of virtual router number 1 to "255". Click Disable to disable the priority of Virtual
Router number 1.
20.6.7 Configure VRRP Timer interval
Click “VRRP control” to configure VRRP and enter "VRRP Interval".
Example: Enter created Virtual Router number "1" and interval "3". Click Enable to set the
interval of virtual router number 1 to "3". Click Disable to disable the interval of Virtual
Router number 1.
20.6.8 Configure VRRP Interface Monitor
Click “VRRP control” to configure VRRP and enter "VRRP Circuit".
Example: Enter "1" for the created Virtual Router number, 23 for monitor port name and
100 for priority decreasing amount. Click Enable to activate monitor on Virtual Router
number 1 port 23. Click Disable to deactivate monitor on Virtual Router number 1 port 23.
20.6.9 Configure Authentication Mode For VRRP
Click “VRRP control” to enter "VRRP AuthenMode" and configure VRRP authentication
mode.
Example: Choose created "Vlan1" for Port and "yes" for AuthenMode. Click Apply to
finish Port Vlan1 authentication mode configuration.
