Accton Technology ES4626 - Manual (Page 24)

24
Step 2:
Run HTTP protocol on the host.
Open the Web browser on the host and type the IP address of the switch.Or run
directly the HTTP protocol on the Windows. For example, the IP address of the switch is
“10.1.128.251”.

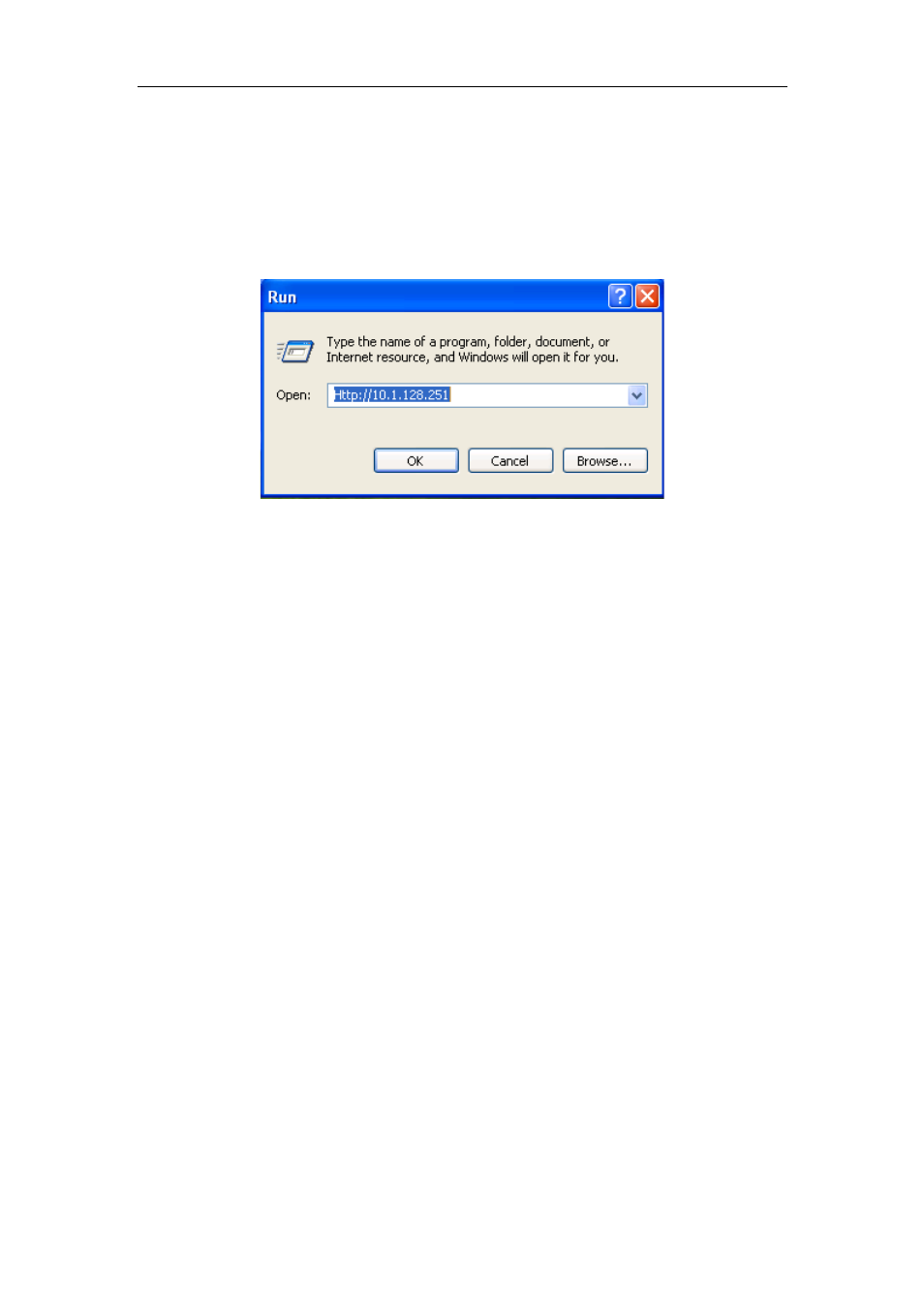

Fig 1-9 Run HTTP Protocol
Step 3: Logon to the switch
To logon to the HTTP configuration interface, valid login user name and password
are required; otherwise the switch will reject HTTP access. This is a method to protect
the switch from the unauthorized access. Consequently, in order to configure the switch
via HTTP, username and password for authorized HTTP users must be configured with
the following command in the global mode:
username password .
Suppose an authorized user in the switch has a username as “test”, and password
as “test”. The configuration procedure is as below:
Switch >en
Switch#config
Switch(Config)# username test password 0 test
The Web login interface is as below:
