122
Users should click “Switch basic configuration” and “SNMP configuration” to configure the
SNMP relating functions.
2.10.2.1 SNMP Manager Configuration

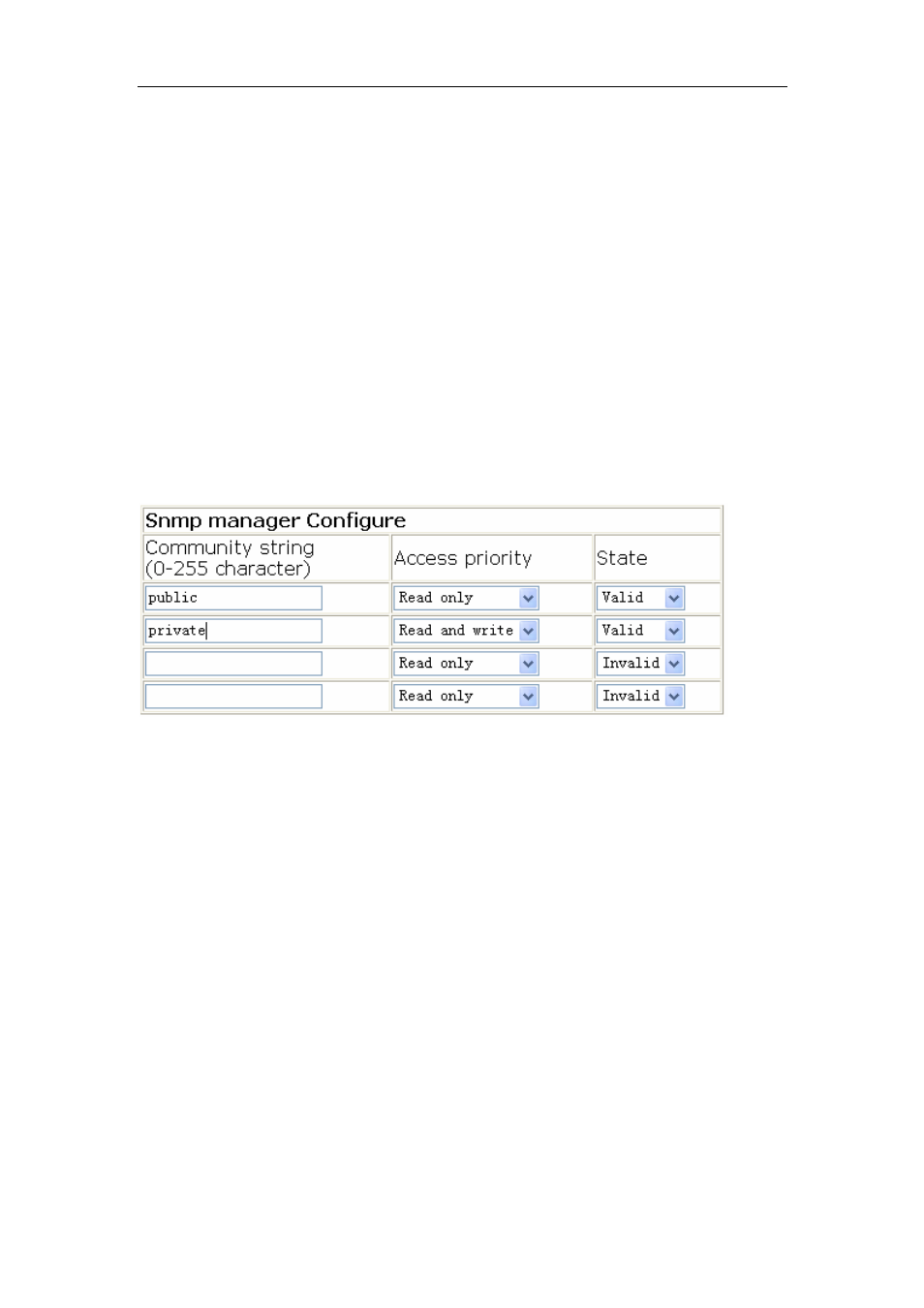

Users should click “Switch basic configuration”, “SNMP configuration”, and “SNMP
manager configuration” to configure the community string of the switch.
z Community string (0-255 characters) -for configuration of the community string.
z Access priority -specifies access rights to MIB, including “Read only” and “Read and
write.”
z State -”Valid” -to configure; “Invalid” -to remove.
Users should configure Community string as “public”, choose Access priority as “Read
only” mode, and choose State as “Valid” or configure Community string as private,
choose Access priority as “Read and write” mode, and choose State as “Valid”. The
command will be applied to the switch by clicking on the “Apply” button.
2.10.2.2 Trap Manager Configuration
Users should click “Switch basic configuration”, “SNMP configuration”, and “TRAP
manager configuration” to configure the IP address of the management station which will
receive SNMP Trap messages and Trap community strings.
z Trap receiver -the IP address of NMS management station that will receive Trap
messages.
z Community string (0-255 character) -the community string used to send Trap
messages.
z State -”Valid” -to configure; “Invalid” -to remove
Example: configure the Trap receiver as “41.1.1.100” and configure the community string
as “trap” and State as “Valid.” The command will be applied to the switch by clicking on
the “Apply” button.
