2.4.2.2 32-bit mode address translation
Figure 2-26 shows the virtual-to-physical-address translation of a 32-bit mode address. The pages can have five
different sizes between 1 Kbyte (10 bits) and 256 Kbytes (18 bits), each being 4 times as large as the preceding one
in ascending order, that is 1 K, 4 K, 16 K, 64 K, and 256 K.
— Shown at the top of Figure 2-26 is the virtual address space in which the page size is 1 Kbyte and the offset
is 10 bits. The 22 bits excluding the ASID field represents the virtual page number (VPN), enabling selecting
a page table of 4 M entries.
— Shown at the bottom of Figure 2-26 is the virtual address space in which the page size is 256 Kbytes and the
offset is 18 bits. The 14 bits excluding the ASID field represents the VPN, enabling selecting a page table of
16 K entries.

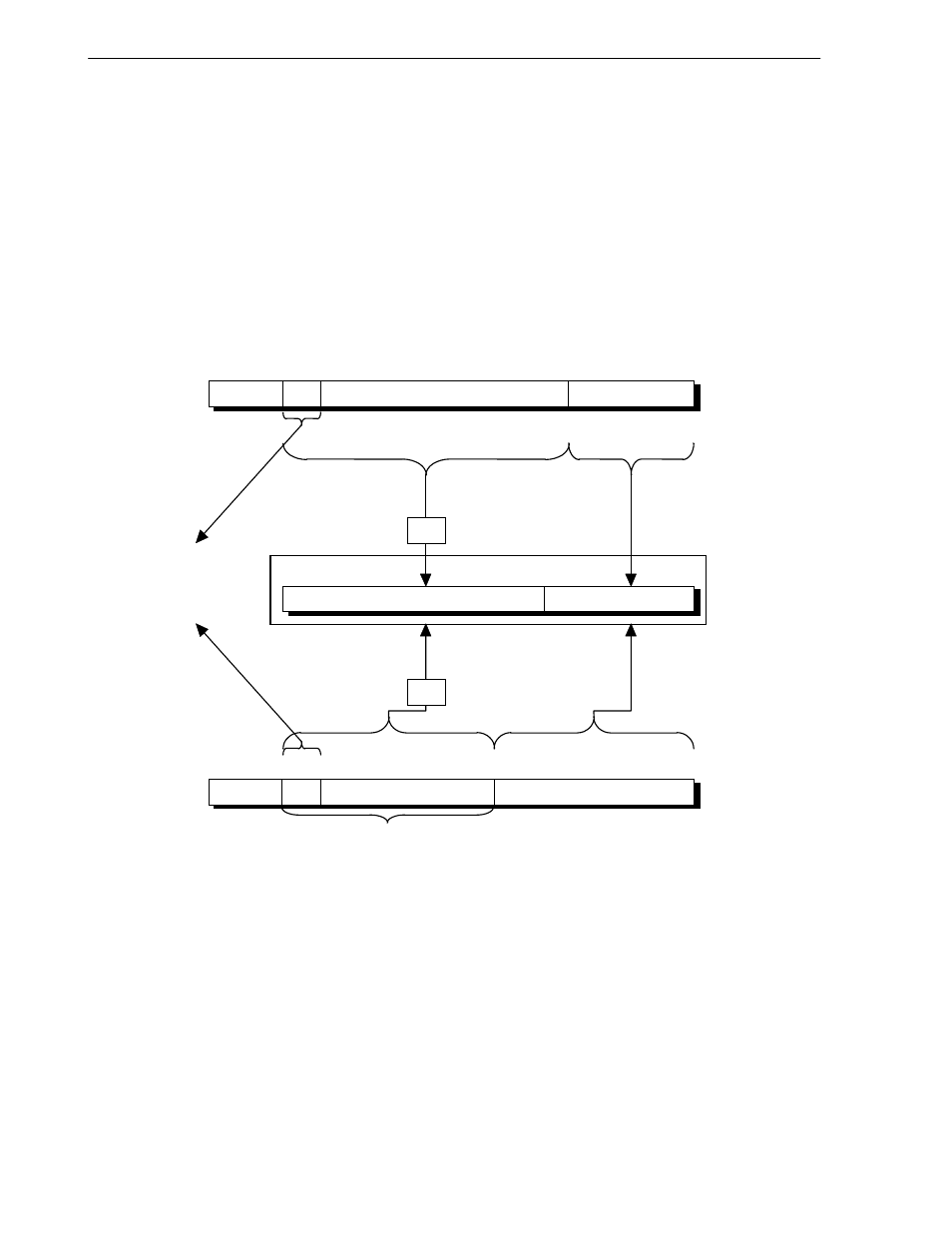

Figure 2-26. 32-bit Mode Virtual Address Translation
