28-18 MPC8260 PowerQUICC II UserÕs Manual MOTOROLA
Part IV. Communications Processor Module

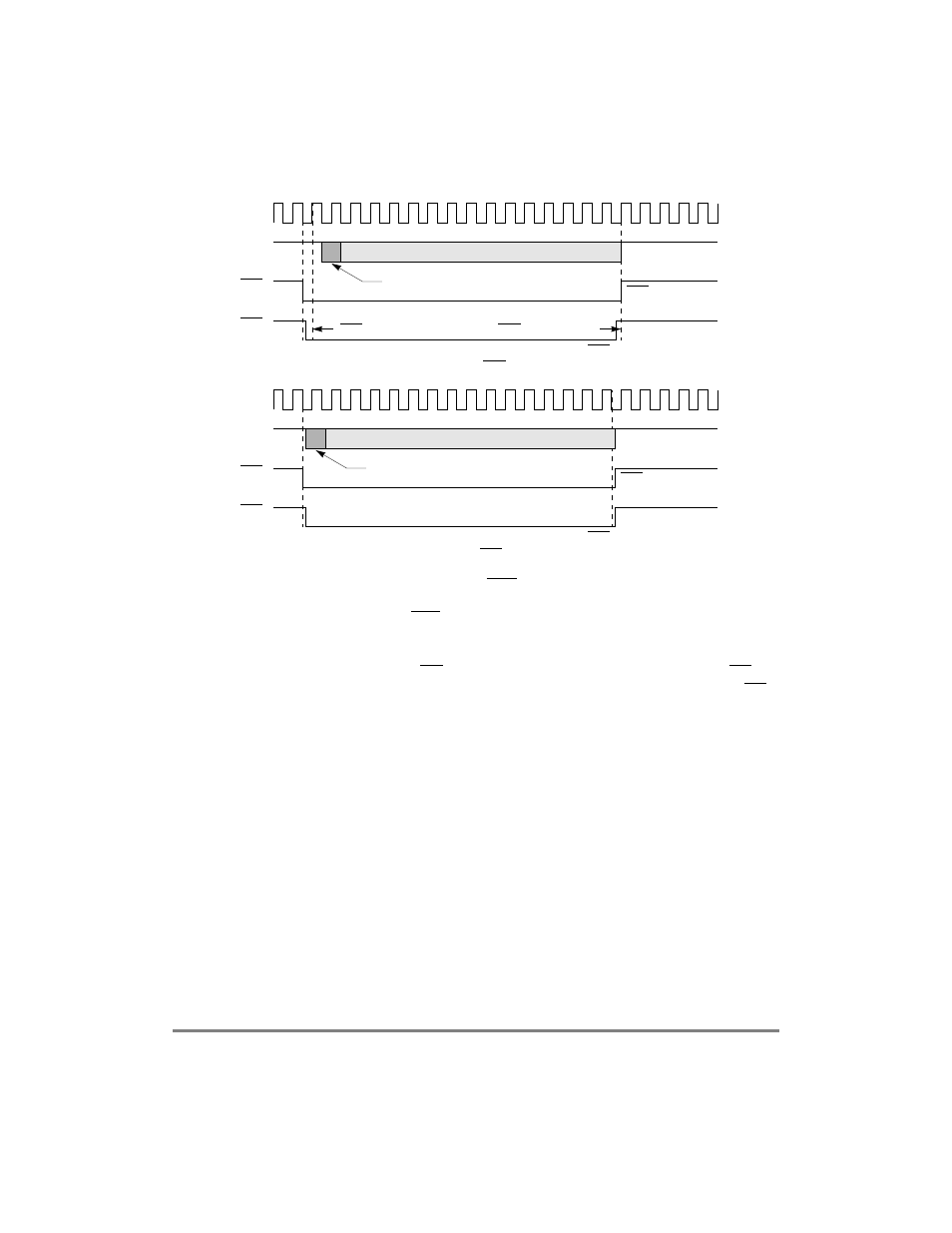

Figure 28-8. CTS Lost
Note that if GFMR[CTSS] = 1, all CTS transitions must occur while the transmit clock is
low.
Reception delays are determined by CD as Figure 28-9 shows. If GFMR[CDS] = 0, CD is
sampled on the rising receive clock edge before data is received. If GFMR[CDS] = 1, CD
transitions immediately cause data to be gated into the receiver.
1. GFMR_H[CTSS] = 0. CTSP=0 or no CTS lost can occur.
TCLK
TXD
First Bit of Frame Data
Note:
CTS Sampled Low
1. GFMR_H[CTSS] = 1. CTSP=0 or no CTS lost can occur.
TCLK
First Bit of Frame Data
Note:
CTS Sampled High
Data Forced High
RTS Forced High
Data Forced High
RTS Forced High
CTS Lost Signaled in BD
CTS Lost Signaled in BD
(Output)
RTS
(Output)
CTS
(Input)
CTS
(Input)
RTS
(Output)
TXD
(Output)
